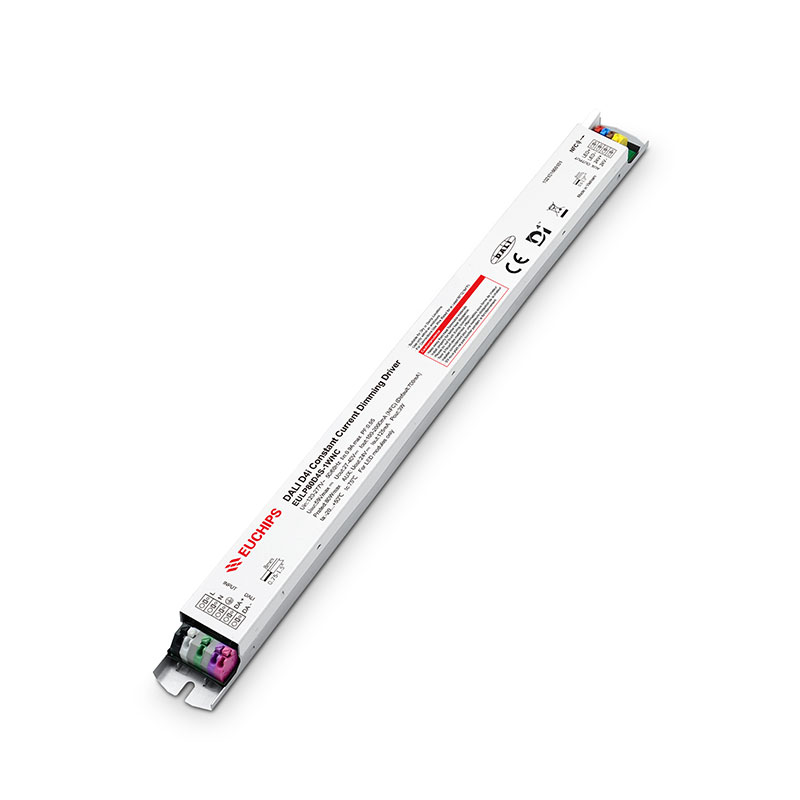

80W 100-200mA NFC D4i CC Driver EULP80D4S-1WNC
80W 100-200mA NFC D4i CC Driver EULP80D4S-1WNC
Advantages
• Enable interoperability with diverse wireless sensors/network systems
• Reduce complexity and cost of fixture by eliminating auxiliary components ordinarily re quired for powering sensors, switching fixture off and monitoring energy use
• interface to any suitable sensor and ease of adjustable drive current
Features
• Standard-compliant (DiiA) digital interface including:
- Integrated DALI bus power supply (Part 250)
- Memory Bank 1 extension, Energy Monitoring and Diagnostics (Parts 251, 252, 253)
• Energy metering and advanced diagnostics
• Continuous dimming down to 1%
• Drive current setting via NFC wireless programming
• 5-year limited warranty
Technical Parameters
| Model | EULP80D4S-1WNC | |
| Input | Efficiency | ≥85%@120VAC, full load,≥87%@277VAC, full load |
| Rated Voltage | 120VAC-277VAC | |
| Frequency Range(Hz) | 50/60Hz | |
| Current | 0.9Amax@120VAC, 0.4Amax@277VAC | |
| Power Factor | ≥0.95@120VAC, full load,≥0.9@277VAC, full load | |
| THD(full load) | <10%@120VAC-277VAC, full load | |
| Inrush Current(max) | Cold start, 6.29A@120VAC 39us, 17.7A@277VAC 38us | |
| Output | Current Range | 100-200mA(NFC), (Default Current: 700mA) |
| Voltage Range | 27-40VDC | |
| Output Power | 80W Max | |
| Current | 1 | |
| Current Accuracy | ±5% (±7% below 400mA) | |
| Ripple current | ±5% | |
| No load output voltage | 60VDC max | |
| Standby power | ≤1W | |
| No load power | ≤1W | |
| Start-up Time | ≤0.75s, @120Vac (When the light begins to shine) | |
| Aux Output | Output Voltage | 24V±10% |
| Output Power | 3W | |
| Output Current | 125mA | |
| No load output voltage | 30V MAX | |
| Ripple Voltage | ≤1V | |
| Function | Dimming Type | DALI 2.0 D4i (EN62386-250, 251, 252, 253, 150) |
| Dimming Range | 1-100% | |
| Dimming curve | Logarithm | |
| Flicker | Flicker free | |
| Protection | Short-circuit protection | Short circuit without output, Auto-recovery after Fault Clearance |
| Overload protection | Reduce current hiccup protection, Auto-recovery after Fault Clearance | |
| Over Voltage | Reduce current hiccup protection, Auto-recovery after Fault Clearance | |
| Safety& EMC | Surge | L-N 2500VAC L&N-PE 2500VAC |
| Withstand Voltage | I/P-O/P:2000Vac/1min/<5mA, I/P-G:1500Vac/1min/<5mA, O/P-G:500Vac/1min/<5mA, O/P-DALI( Signal port ):1500Vac/1min/<5mA | |
| Safety Standards | UL8750/CSA C22.2 N0250.13/UL1310/Class 2/Class P | |
| EMC Eission | FCC Part 15 Class A [120VAC, 277VAC] | |
| Insulation Resisance | 5MΩ | |
| Others | Working Temp. | -20℃~50℃ (-4℉~122℉) |
| Storage Temp., Humidity | -40℃~80℃, 5%-90%RH (-40°F-185°F) | |
| tc | 75℃ (167℉) | |
| Material | Metal | |
| IP Rating | IP20 | |
| Lifetime | 50,000h@tc:75℃ (167℉) | |
| Warranty Condition | 5years | |
| Switch Cycle | >25,000 times | |
| Dimension | 360*30*21mm (14.17*1.18*0.827 Inch) (L*W*H) | |
| Packing(weight) | Net weight: 330g(0.728 Ib)±5%/PCS; 50PCS/Carton; 16.5kg(36.38Ib)±5%/Carton; Carton Size:377*333*134mm(14.84*13.11*5.28 Inch)(L*W*H) | |
