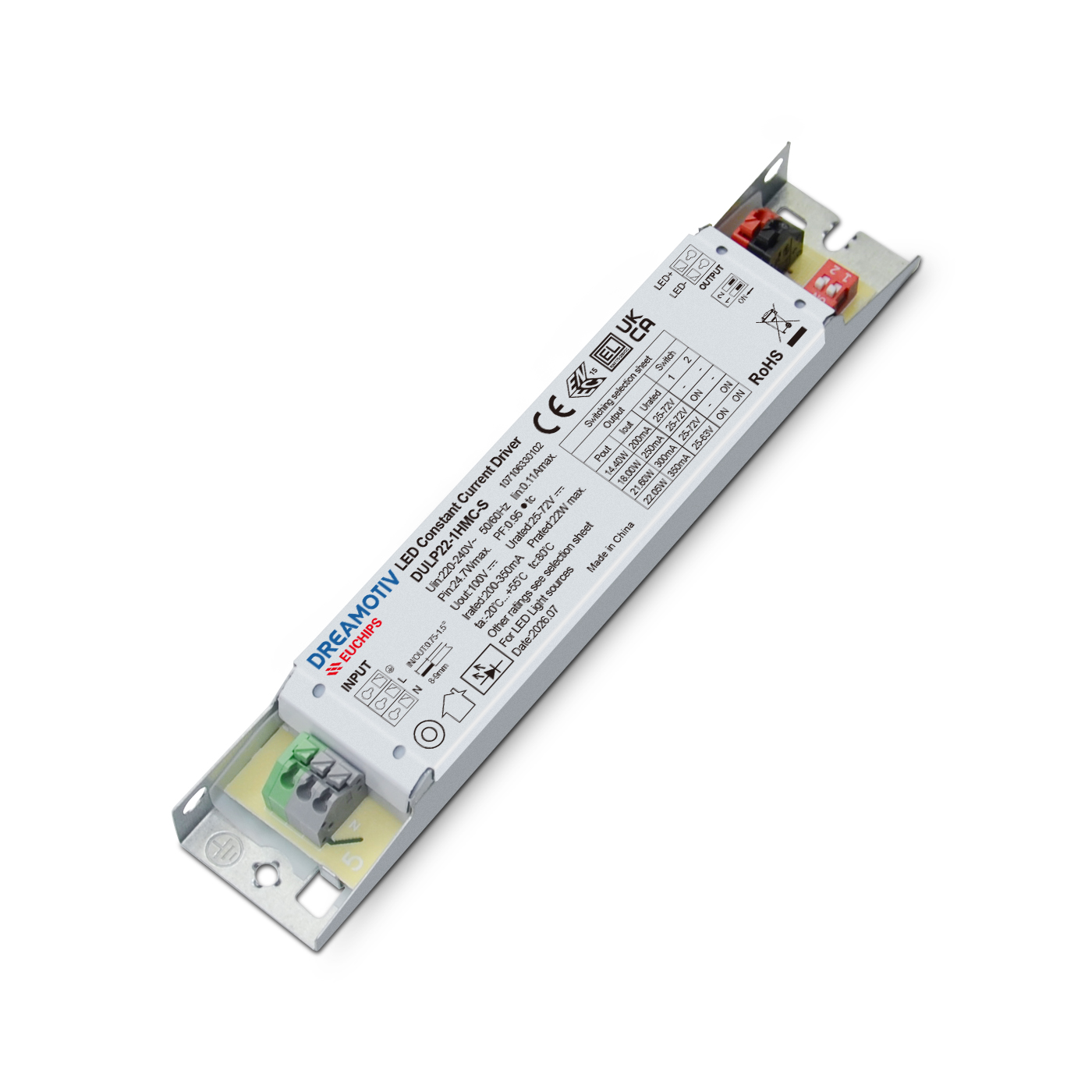

22W 200~350mA Non-dimmable CC Driver DULP22-1HMC-S
Features
- Single-channel constant current output, with current adjustable via dip switch
- Support stand-alone emergency system
- Can withstand 380VAC high voltage shock for a short period
- Complies with CE, ENEC, UKCA, RCM, etc. certifications
- Output has no flicker, meeting the no-flicker standard for ErP energy efficiency certification
- Protection level IP20, suitable for internal use in Class I lamps
- Dual-stage circuit design, stable operation current
- Suitable for lamps with built-in drivers such as triple protection lamps
Technical Parameters
|
Model |
DULP22-1HMC-S | |||||
|
Input |
Input Voltage | 220VAC-240VAC | ||||
| Input voltage range | 198VAC-264VAC | |||||
| Input VDC | 176-280VDC | |||||
| Frequency Range(Hz) | 50/60Hz | |||||
| Input Current | 0.11Amax@230VAC | |||||
| Power Factor | 0.95@230VAC, Full load | |||||
| Efficiency | 88%@230VAC, Full load | |||||
| THD | 15%@230VAC, Full load | |||||
| No-load power | <0.5W | |||||
| Inrush Current | Cold start, 13A@230V 220us | |||||
|
Output |
Output Current | 200mA |
250mA |
300mA |
350mA |
|
| Output Voltage | 25-72VDC |
25-72VDC |
25-72VDC |
25-63VDC |
||
| Output Power | 14.40W |
18.00W |
21.60W |
22.05W |
||
| Current Accuracy | ±5% | |||||
| Output Ripple | High frequency > 1 kHz: ±5% High frequency<120 Hz:±5% | |||||
| Output Power Range | 14.4W~22W | |||||
| PstLM | ≤1 | |||||
| SVM | ≤0.4 | |||||
| Dimming frequency | / | |||||
| Line Regulation | ±1% @Full load | |||||
| Load Regulation | ±3% @Full load | |||||
| Turn on delay Time | 0.5s, at230Vac (When the light begins to shine) | |||||
| Protection | Short circuit | Burping, returns to normal after troubleshootingd. | ||||
| Over Current | Burping, returns to normal after troubleshooting | |||||
| Over load | Load power greater than or equal to 150% triggers protection, and the current will decrease until it reaches the shutdown level. | |||||
| Over Voltage | / | |||||
| Over temperature | The current has decreased and the fault has been eliminated, with the output returning to normal. | |||||
|
Safety& EMC |
Surge | L-N:2KV L-FG/N-FG:2KV | ||
| Withstand Voltage | I/P-FG: 1750VAC | |||
| Safety Standards |
CCC |
(China) GB19510.1，GB19510.14 TUV | (Germany) EN61347-1，EN61347-2-13，EN62493 | |
|
CB |
(CBmember states) IEC61347-1，IEC61347-2-13 CE | (European Union) EN61347-1，EN61347-2-13，EN62384 | ||
|
RCM |
(Australia) AS 61347-1，AS 61347-2-13 ENEC | (Europe) EN61347-1，EN61347-2-13，EN62384 | ||
| EMC Emission |
CCC |
(China) GB/T17743，GB17625.1 | ||
|
CE |
(European Union) EN55015，EN61000-3-2，EN61000-3-3，EN61547 | |||
|
RCM |
(Australia) EN55015，EN61000-3-2，EN61000-3-3，EN61547 | |||
| EMC Immunity | EN61000-4-2, 3, 4, 5, 6, 8, 11; EN61547 | |||
| Environment | Working Temp. | -20℃~55℃ | ||
| Storage Temp. | -40℃~85℃ | |||
| Storage Humidity | 10-90%RH (No condensation) | |||
|
Others |
RoHS | Comply with 2011/65/EU | ||
| tc | 80℃ | |||
| Material | Metal | |||
| IP Rating | IP20 | |||
| Lifetime | 50,000h@tc:75℃ | |||
| Warranty Condition | 5years | |||
| Switch Cycle | 25,000 times | |||
| Body size | 168*30.5*22.5mm (L*W*H) | |||
| Packing(weight) | Net weight: –g±5%/PCS; —PCS/Carton; –kg±5%/Carton; Carton Size: —*—*—mm(L*W*H) | |||
| Noise | In a quiet environment, no noise beyond 30-50cm | |||
| Remark | All parameters were measured at an input voltage of 230VAC/50Hz and an ambient temperature of 25 ℃ without any special instructions. | |||
