Features
- Dual-channel constant voltage DC 24V output
- Wide voltage input range: 120VAC~277VAC
- waterproof rating of IP67, with an efficiency of up to 89%
- Dimming Smooth, Flicker free
- Suitable for LED constant voltage lighting fixtures, such as LED modules, strip lights, light bars, etcon
Technical Parameters
| Model |

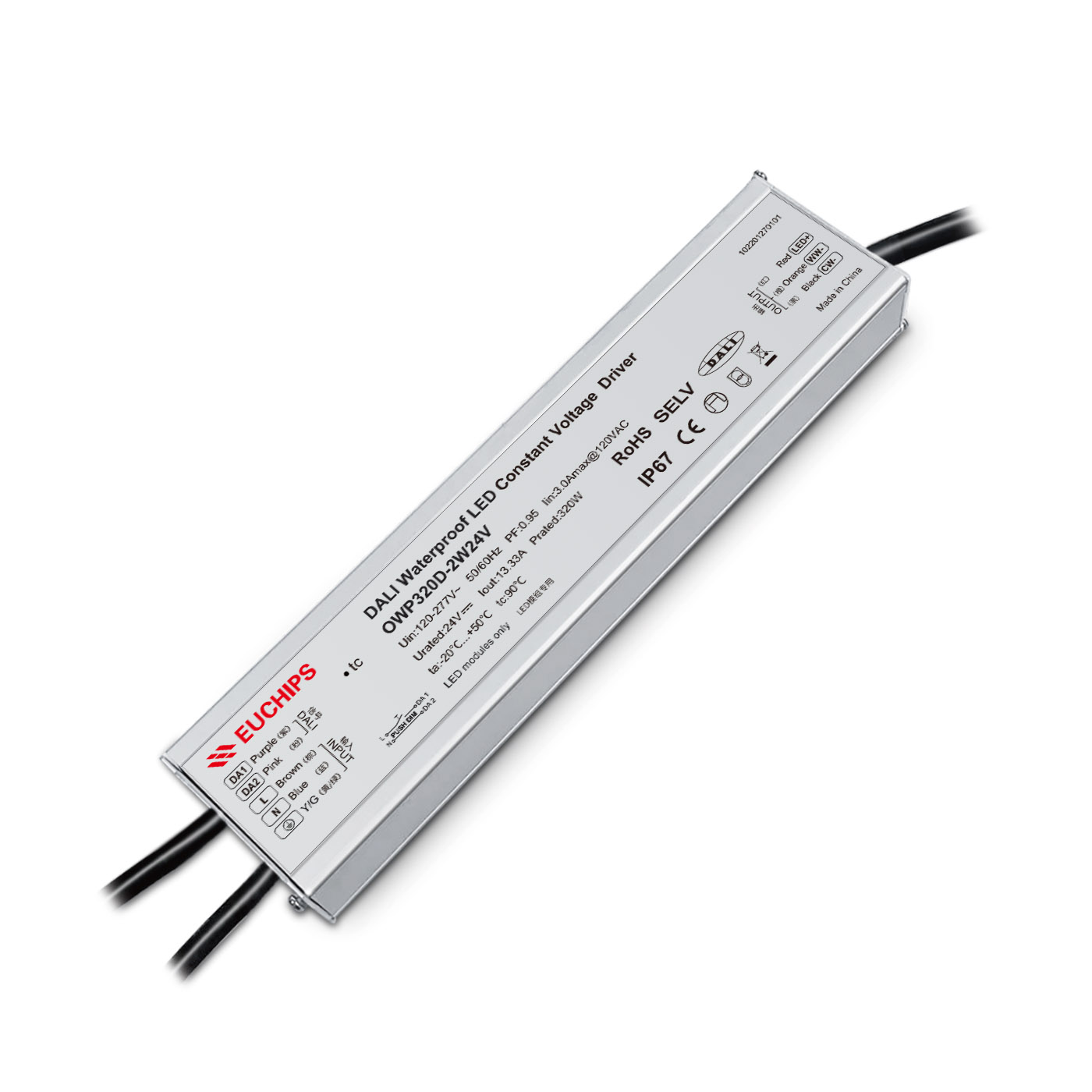

OWP320D-2W24V |
| Input |
Efficiency |
≥89%@120VAC, full load |
| Voltage |
120VAC-277VAC |
| Frequency Range(Hz) |
50/60Hz |
| Current |
3.0A@120VAC, 1.5A@230VAC, 1.3A@277VAC |
| PF |
≥0.95@120VAC, ≥0.95@277VAC, full load |
| THD |
<10%@120VAC, <10%@277VAC, full load |
| Inrush Current(max) |
Cold start,53.6A@120VAC 204us |
| Standby power |
<1.0W@120VAC |
| No load power |
<1.0W@120VAC |
| Start-up time |
<0.75s, @120Vac (time-to-first-light) |
| Output |
Current |
13.33A |
| Voltage |
24VDC |
| Voltage Accuracy |
±5% |
| Power |
320W |
| Channel |
2 |
| Ripple |
±3%mV |
| Function |
Dimming Types |
DALI2.0 (DT8) |
| Dimming Range |
1%-100% |
| Dimming Curve |
Logarithm |
| Flicker |
Flicker free |
| Color temperature range |
2700K-6500K |
| Push DIM (Touch DIM) |
Support |
| Function |
Short Circuit |
Shut down output, Auto-recovery after Fault Clearance |
| Overload |
Hiccup Protection, Auto-recovery after Fault Clearance |
| Overcurrent |
Hiccup Protection, Auto-recovery after Fault Clearance |
| Safety&EMC |
Surge |
L-N: 6kVAC L-N-PG: 10kVAC |
| Withstand Voltage |
I/P-O/P: 3000V/1min/<5mA I/P-PG:1500V/1min/<5mA O/P-PG:500V/1min/<5mA I/P-DIM( Signal port ):1500V/1min/<5mA |
| Safety standards |
UL8750, UL1310, CSA-C22.2 No. 250.13 |
| EMC |
FCC 47 Part 15 Class B |
| Insulation Resisance |
5MΩ |
| Others |
Working Temp. |
-20℃~+50℃ (-4°F-122°F) |
| Storage Temp., Humidity |
-40℃~85℃ (-40°F-185°F), 20-95%RH |
| TC |
90℃ (194°F) for safety & 85℃ (185°F) for life |
| Material |
Metal |
| IP Rating |
IP67 |
| Lifetime |
50,000h@tc:85℃ (185°F) |
| Warranty Condition |
5years |
| Switch Cycle |
25,000 times |
| Packing(weight) |
Net weight: 1124g (2.47 lb)±5%/PCS; 10PCS/Carton;11.24kg(24.7 lb)±5%/Carton; Carton Size: 323*209*208mm(12.7*8.23*8.19 Inch)(L*W*H) |
| Dimension |
280*63*33mm (11.02*2.48*1.30 Inch)(L*W*H) |
