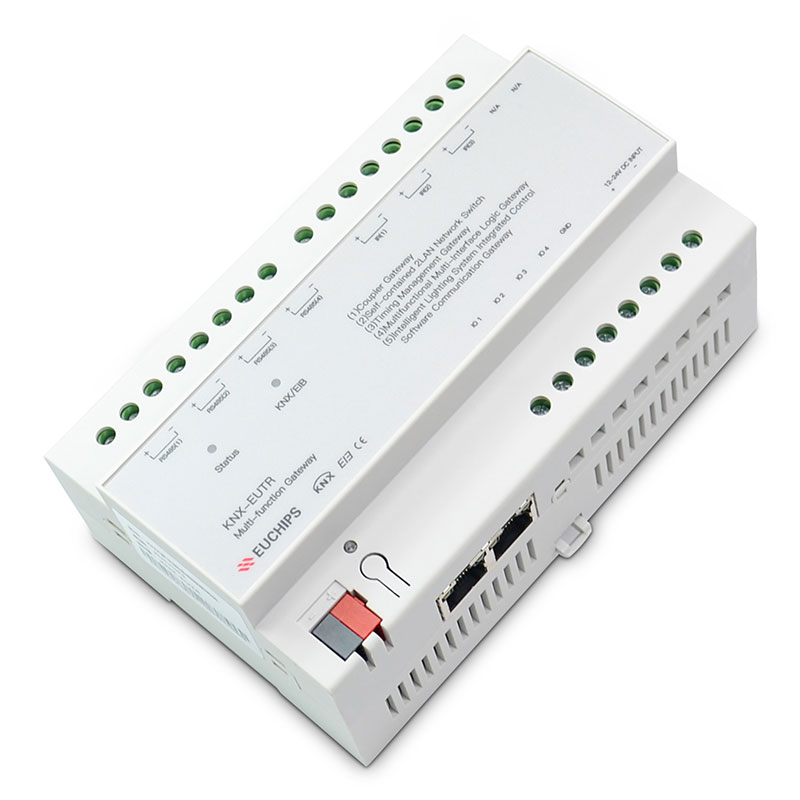

Multi-functional Bus Control Gateway KNX-EUTR

Short Description:

  • Item No.: KNX-EUTR

Product Detail

Product Tags

Multi-functional Bus Control Gateway KNX-EUTR

Features

· Equipped with coupler function, coupling different KNX branch lines
· KNX lines with the same group ID can be set to communicate with each other, while KNX lines with different group IDs can communicate without interfering with each other
· It can communicate with the WINCONTROL intelligent lighting system integrated control software on the upper computer
· 4 RS485 standard interfaces (customizable) · 4 dry contact I/O contact signal input interfaces
· 3-channel infrared IR emission
· 2 LAN network interfaces (with 8 built-in TCP/IP or UDP ports, which can be used as the server side or client side, 2 LAN ports with switch function)
· All interfaces can be used interchangeably for communication
· All protocol or interface data are uniformly defined by the upper-layer software in the action library, event library, and time action execution library, and functional modules such as clock, timing, data processing, bus transmission and reception, and scenarios are added to achieve central control
· Equipped with clock timing management function: KNX branch scene clock management can be freely defined, time control for specific occasions can be added, and the lights can be timed on and off through the schedule. The system comes with a built-in calendar, allowing you to freely select the year, month, day, week, and specific day Settings
· Up to 128 event time management can be set
· Application scope: (Projectors, air conditioning systems, background music systems, landscape lighting systems, fire emergency lighting systems, I/O signal input systems, security access control systems, infrared equipment systems, geothermal heating systems, lighting management and control software.
· Teaching platform software system, central control system, warehouse management system, hospital medical management system
· Open integration with third-party software platform system

Technical Parameters

Product model KNX-EUTR
Bus voltage 21-30VDC
Bus current ≤10mA
Auxiliary voltage 24VDC
Auxiliary current <75mA
Functional interface 4 RS485 interfaces (customizable), 3 IR interfaces, 2 network LAN ports (8 TCP/IP/UDP), 4 I/O input interfaces, 1 KNX/EIB interface
Shell material PA66
Size 145mmX90mmX64mm
Weight 0.3KG
Installation method 35mm DIN rail mounting
Working temperature -5°C- 45°C
Storage temperature 25°C…+70°C
Relative humidity Max 90%
