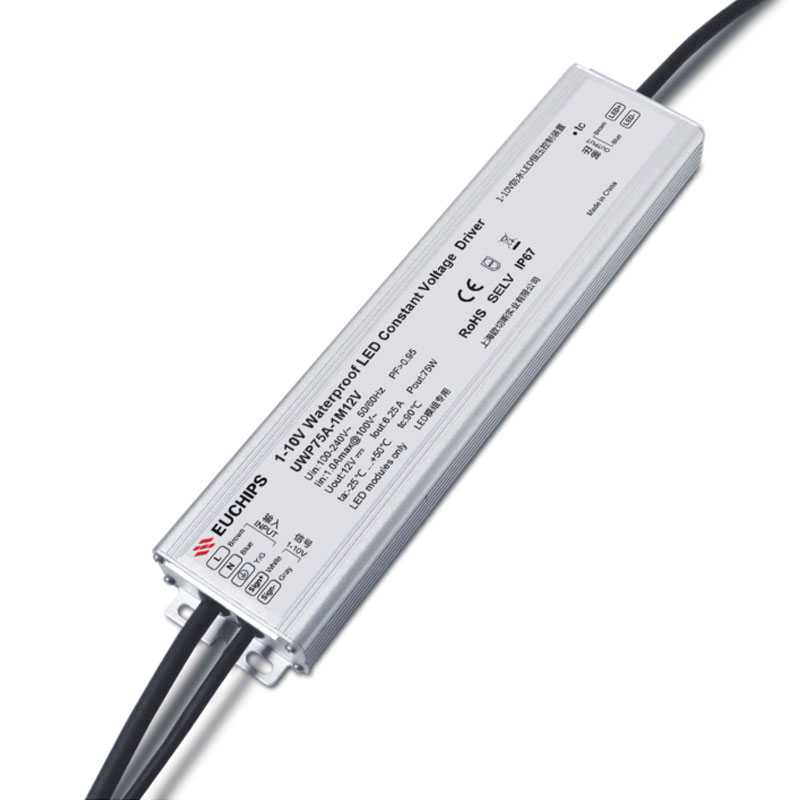

75W 12VDC 0/1-10V Waterproof Ultra-thin CV Driver UWP75A-1M12V

Short Description:

  • Item No.: UWP75A-1M12V
  • Input Voltage: 100-240VAC
  • Output Power: 75W

Product Detail

Product Tags

75W 12VDC Constant Voltage LED Driver UWP75A-1M12V

UWP75A-1M12V is a LED dimmable driver with constant voltage output, it can be used
outdoor and achieve smooth dimming effect through external 0-10V active signal/PWM
signal/adjustable resistor.

Features

1. Single-channel with 12V constant voltage output.

2. Wide voltage input range from 100VAC to 240VAC

3. With built-in active PFC function.

4. Supporting 3-in-1 dimming way (0-10V active signal/adjustable resistor/PWM signal).

5. 1-100% full dimming range,smooth dimming curve,flicker-free,high efficiency up to 85%.

6. Can be used as normal driver when signal suspending,as well as full-load output.

7. Protections:short circuit,over load,over voltage,over temp. and lightning protection

8. Ultra-thin design with waterproof IP67 and applicable to various of LED CV lights.

Technical Parameters

Model UWP75A-1M12V
Input Efficiency 85%@230VAC, Full load
Voltage 100VAC-240VAC
Frequency 50~60Hz
Power Factor >0.95@230VAC, Full load
THD <10%230VAC, Full load
Standby power <0.5W
Current 1.0Amax@100VAC
Inrush Current Cold start 50A@230VAC
Output Voltage 12VDC
Current 6.25A
Power 75W
Voltage Tolerance ±2%
Ripple and noise(max) <120mVp-p
Channel 1
Protection Short Circuit Close output,recovers after fault condition is removed
Over Voltage Shut down the output, After restart recovers automatically
Over Load Hiccup, recovers after fault condition is removed
Safety&EMC Surge L-N: 2kV,L,N-PG:4kV
Withstand Voltage I/P-O/P: 3000VAC/1min/5mA; I/P-Gnd: 1500VAC/1min/5mA; O/P-Gnd: 500VAC/1min/5mA
Safety Standards IEC/EN61347-1, IEC/EN61347-2-13, GB19510.1, GB19510.14
EMC Eission EN50515, EN61000-3-2 Class C, IEC61000-3-3,
EMC Immunity EN61000-4-2,3,4,5,6,8,11 EN61547,GB17625.1
Function Dimming mode 1-10V
Dimming range 1%-100%
Others Working Temp. -25℃~+50
Storage Temp.; Humidity -40℃~85℃, 20-90%RH
Tc 90℃
Material Metal
IP Rating IP67
Lifetime 50,000h@tc:90℃
Warranty Condition 5 years
Switch Cycle >25,000 times
Packing Size Net weight: 820g±5%/PCS; 20PCS/Carton; 17kg±5%/Carton; Carton Size: 325*315*195mm (L*W*H)
Dimension 270*61*25mm(L*W*H)
