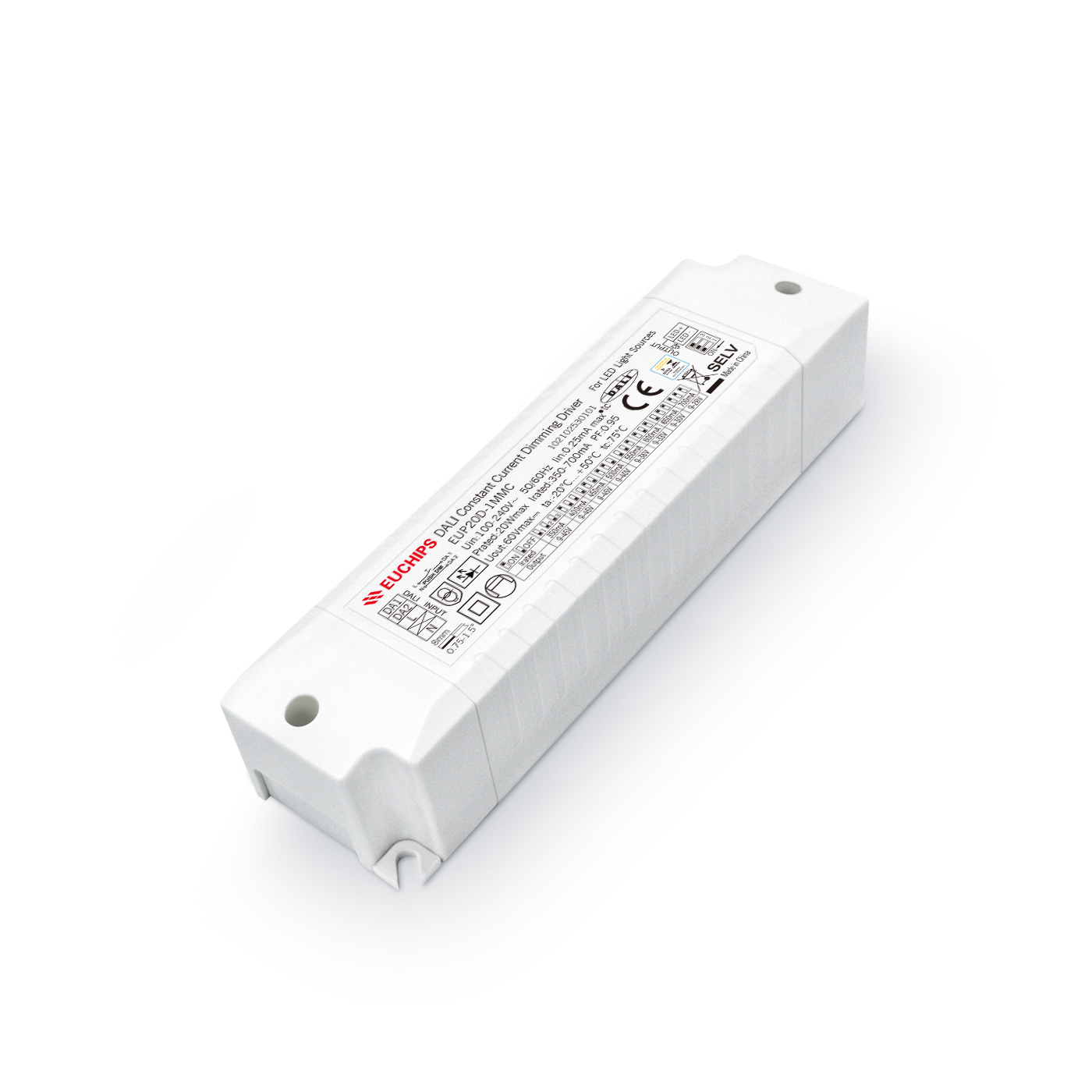

20W 350~700mA*1ch DALI CC Driver EUP20D-1MMC
Features
- Single channel constant Current output, output current level selectable by DIP S.W.
- Meet DALI Protocol IEC 62386-207 Ed2.0
- Dimming effect smooth, flicker free
- Protection: short circuit, Overload
- Lifetime 50,000h@tc75℃.
- Protection level IP20, suitable for indoor ⅠⅡ lamps
- Suitable for LED indoor lamps, such as downlights, panel lights, etc
Technical Parameters
| Model | EUP20D-1MMC | ||||||||
|
Input |
Efficiency | ≥82%@100VAC, ≥83%@230VAC, full load | |||||||
| Voltage | 100VAC-240VAC | ||||||||
| Frequency Range(Hz) | 50/60Hz | ||||||||
| AC Current(max) | 0.25Amax@100VAC, 0.12Amax@230VAC | ||||||||
| PF | ≥0.95@100VAC, ≥0.90@230VAC, full load | ||||||||
| THD | <10%@100VAC, <15%@230VAC, full load | ||||||||
| Inrush Current(max) | Cold start, 7.56A@100VAC 18us, 17.3A@230VAC 20us | ||||||||
| Standby power | <0.5W@100VAC | ||||||||
| No load power | <1W@100VAC | ||||||||
| Turn on delay Time | <0.75s @127Vac (reaches 90% brightness) | ||||||||
|
Output |
Current | 350mA |
400mA |
450mA |
500mA |
550mA |
600mA |
650mA |
700mA |
| Voltage | 9-45VDC |
9-45VDC |
9-44VDC |
9-40VDC |
9-36VDC |
9-33VDC |
9-30VDC |
9-28VDC |
|
| Power | 15.75W |
18W |
19.8W |
20W |
19.8W |
19.8W |
19.5W |
19.6W |
|
| Current Tolerance | ±5% | ||||||||
| Channel | 1 | ||||||||
| Pst LM | ≤1.0 | ||||||||
| SVM | ≤0.4 | ||||||||
| Load Regulation | ±5% | ||||||||
| Line Regulation | ±3% | ||||||||
| Function | Dimming Type | DALI2.0, PUSH DIM | |||||||
| Dimming Range | 0.3%-100% | ||||||||
| Dimming curve | Logarithm | ||||||||
| Flicker | Flicker free | ||||||||
| Protection | Short Circuit | Hiccup Protection, Auto-recovery after Fault Clearance | |||||||
| Overload | Current decrease, Auto-recovery after Fault Clearance | ||||||||
|
Safety&EMC |
Surge | L-N: 1kV | |||||||
| Withstand Voltage | I/P-O/P: 3000Vac/1min/<5mA I/P-Signal:1500Vac/1min/<5mA O/P-Signal: 3000VAC/1min/<5mA | ||||||||
| Safety standards | CCC (China) GB/T 19510.1，GB/T 19510.213 TUV (Germany) EN 61347-1，EN 61347-2-13，EN 62493 | ||||||||
| CB (CB member states) IEC61347-1，IEC61347-2-13 CE (European Union) EN 61347-1，EN 61347-2-13 | |||||||||
| RCM (Australia) AS/NZS 61347-1, AS/NZS 61347-2-13 ENEC (Europe)EN 62384 | |||||||||
| EMI Emission | CCC (China) GB/T 17743，GB/T 17625.1 | ||||||||
| CE (European Union) EN 55015，EN 61000-3-2，EN 61000-3-3，EN 61547 | |||||||||
| RCM (Australia) AS/NZS CISPR 15，AS/NZS 61000 | |||||||||
| EMC Immunity | IEC 61000-4-2, 3, 4, 5, 6, 8, 11; EN61547 | ||||||||
| Insulation Resistance | 5MΩ | ||||||||
| Others | Working Temp. | -20…+50℃ | |||||||
| Storage Temp., Humidity | -40…+85℃, 20~90% RH (No condensation) | ||||||||
| tc | 75℃ | ||||||||
| Material | PC | ||||||||
| IP Rating | IP20 | ||||||||
| Lifetime | 50,000h@tc75℃ | ||||||||
| Warranty Condition | 5 years | ||||||||
| Switch Cycle | 25,000 times | ||||||||
| Dimension | 135*36*25mm(L*W*H) | ||||||||
| Packing(weight) | Net weight: 154 g±5%/PCS; 80 PCS/Carton; 12.82 kg±5%/Carton; Carton Size: 456*342*162mm(L*W*H) |
||||||||
