85W 1100~1800mA*2ch DALI CC Driver DT8 EULP85D-2HMC

Short Description:

  • Item No.: EULP85D-2HMC
  • Output Power: 85W

Product Detail

Product Tags

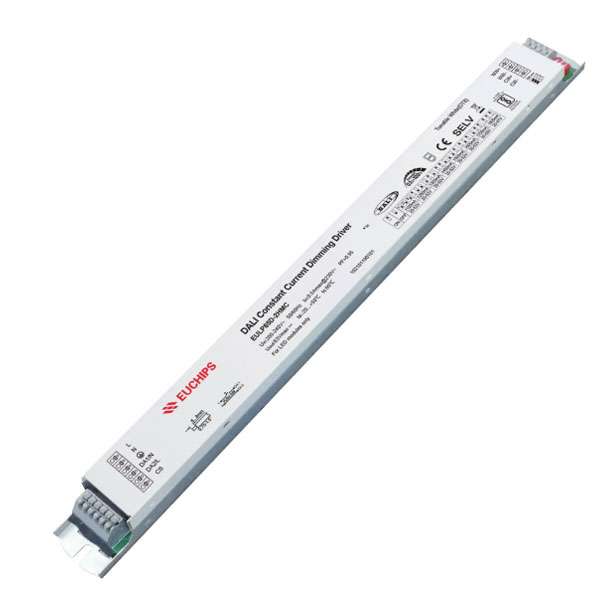

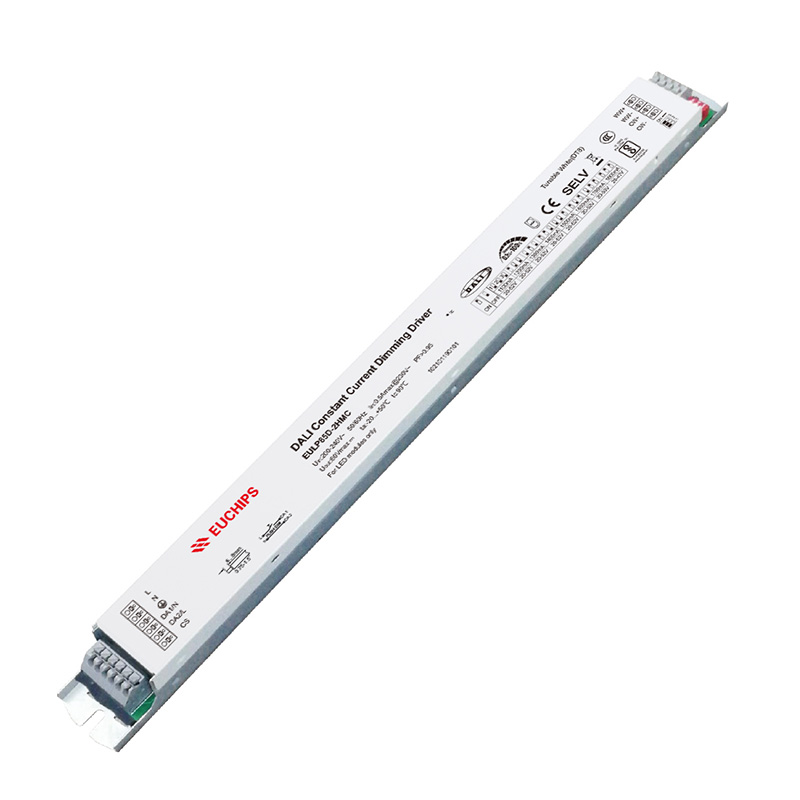

DALI Tunable White Constant Current Diver EULP85D-2HMC

EULP85D-2HMC products is a constant current mode output LED driver featuring the multiple levels selectable by DIP switch and complies with DALI standard protocol IEC 62386. It can be connected to DALI main controller or Touch DIM to achieve a smooth dimming effect.

Features

1. 2 channel output, output current level selectable by DIP S.W.

2. Meet DALI protocol IEC 62386

3. Support Touch DIM function

4. Built-in active PFC function

5. Logarithmic dimming, dimming effect smooth, no flicker

6. Protections: Over load, short circuit, over voltage

7. Suitable for indoor LED lighting application, vapor light, and so on

Technical Parameters

Model EULP85D-2HMC
Input Efficiency 89%@230VAC
Voltage 200VAC-240VAC
Frequency Range(Hz) 50/60Hz
Power Factor ≥0.95@230VAC
THD(full load <15%@230VAC,full load
AC Current(max) /
Standby power <0.5W
Inrush Current /
Output Current(mA)/Voltage (VDC) Power(W)

1100mA/20-52V/57.2W  1200mA/20-52V/62.4W  1300mA/20-52V/67.6W  1400mA/20-52V/72.8W

1500mA/20-52V/78W   1600mA/20-52V/83.2W   1700mA/20-50V/85W   1800mA/20-47V/84.6W

Ripple Current <3%
Channel 2
Current Tolerance ±5%
No load output voltage 63V
Function Dimming mode DALI/Touch DIM
Dimming range 0.1%-100% Dimming to off
Protection Short circuit Close output,recovers automatically after fault removed
Over load When the output voltage is exceeded, the output current decreases and, recovers automatically when the load is reduced.
Over Voltage When the output voltage is exceeded, the output current decreases and, recovers automatically when the load is reduced
Safety & EMC Surge L-N:1KV; L&N-G:2KV
Withstand Voltage I/P-O/P: 3000VAC/1min/5mA
DALI Standard IEC 62386-101: 2014, IEC 62386-102: 2014; IEC 62386-207: 2009, DALI 2.0
Safety Standards EN61347, GB19510
EMC Eission EN50515, EN61000-3-2
EMC Immunity EN61000-3-3, EN61000-3-2, EN61547
Others Working Temp. -20℃~50℃
Storage Temp., Humidity -40℃~85℃, 20-90%RH
tc 90℃
Material Metal
IP Rating IP20
Lifetime 50,000h@tc:–℃
Warranty Condition 5 years
Switch Cycle >25,000 & >20,000 times
Packing(weight) N.W: –g±5%/PCS; 50PCS/Carton; –kg±5%/Carton; Carton Size:502*418*149mm(L*W*H)
Dimension 360*30*21mm(L*W*H)
