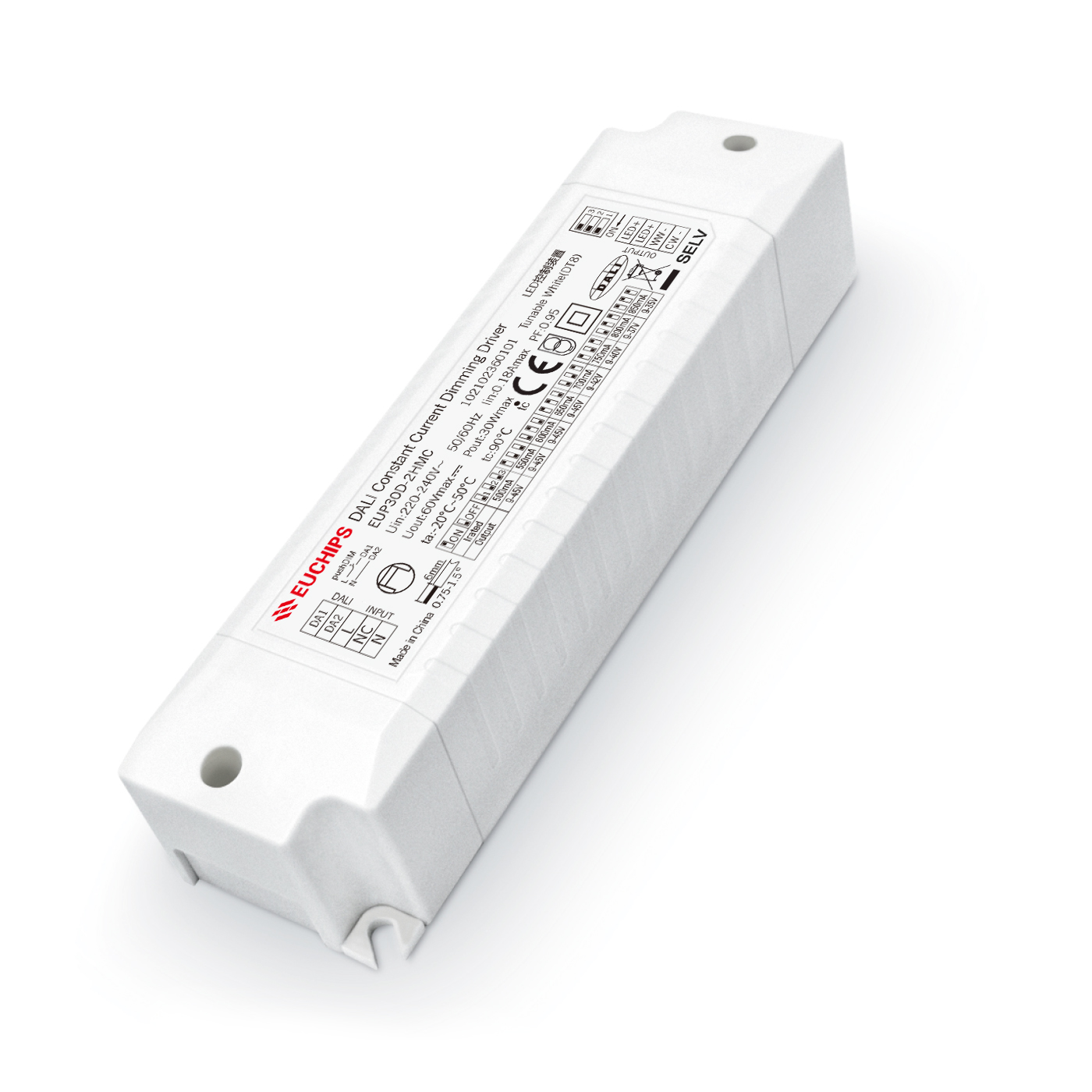

30W 500~850mA*2ch DALI CC Driver EUP30D-2HMC
30W 500~850mA*2ch DALI CC Driver EUP30D-2HMC
Features
· Dual channel constant current output, multi-level current optional
· Following the DALI protocol standard IEC62386-101 102 207 209
· Support Touch DIM function
· Built in active PFC function
· Dimmable smoothly, flicker-free.
· Short circuit protection, overcurrent protection, overload protection
· Suitable for LED indoor lighting fixtures, such as tube lights, panel lights, etc
Technical Parameters
|
Model |
EUP30D-2HMC | ||
|
Input |
Input Voltage | 220VAC-240VAC | |
| Frequency Range(Hz) | 50/60Hz | ||
| Input Current | 0.18Amax@230VAC | ||
| Power Factor | ≥0.95@230VAC, Full load | ||
| Efficiency | ≥84%@230VAC, Full load | ||
| THD | <10%@230VAC, Full load | ||
| Standby power | <1W@230VAC | ||
| No-load power | <1W@230VAC | ||
| Inrush Current | Cold start, 30A@230VAC 100us | ||
|
Output |
Current/Voltage/Power | 500mA/9-45V/22.5W 550mA/9-45V/24.75W 600mA/9-45V/27W 650mA/9-45V/29.25W
700mA/9-42V/29.4W 750mA/9-40V/30W 800mA/9-37V/29.6W 850mA/9-35V/29.75W |
|
| Channel | 2 | ||
| Current Accuracy | ±5% | ||
| Ripple current | <3% | ||
| No load output voltage | 60V max<0.65s, at230Vac (When the light begins to shine) | ||
| Turn on delay Time | |||
|
Function |
Dimming Type | DALI / Touch DIM | |
| Dimming Range | 1%-100% (Dim until turned off) | ||
| Dimming Curve | Logarithm | ||
| Flicker | Flicker free | ||
| Color temperature | 2700K-6500K | ||
|
Protection |
Short circuit | Shut down output, Auto-recovery after Fault Clearance | |
| Over Current | Shut down output, Auto-recovery after Fault Clearance | ||
| Over load | 110%-150% | ||
|
Safety& EMC |
Surge | L-N:1k VAC | |
| Withstand Voltage | I/P-O/P: 3000VAC/1min/5mA, | ||
| Safety standards | EN61347, GB19510 | ||
| EMC Eission | EN55015, EN61000-3-2 | ||
| EMC Immunity | EN61000-4-2, 3, 4, 5, 6, 8, 11; EN61547 | ||
| Insulation Resisance | 5Mfi | ||
|
Environment |
Working Temp. | -20℃~50℃ | |
| Storage Temp. | -40℃~85℃ | ||
| Storage Humidity | 20-90%RH (No condensation) | ||
|
Others |
RoHS | Comply with 2011/65/EU | |
| tc | 90℃ for safety & life | ||
| material | PC | ||
| IP Rating | IP20 | ||
| Lifetime | 50,000h@tc:90℃ | ||
| Warranty Condition | 5years | ||
| Switch Cycle | 25,000times | ||
| Body size | 135*36*25mm(L*W*H) | ||
| Packing(weight) | Net weight: 160g±5%/PCS; 80PCS/Carton; 13.3kg±5%/Carton; Carton Size: 449*335*148mm(L*W*H) | ||
| Noise | In a quiet environment, no noise beyond 30-50cm | ||
| Remark | All parameters were measured at an input voltage of 230VAC/50Hz and an ambient temperature of 25 ℃ without any special instructions. | ||
DALI
| Parameter | Min. |
Typ. |
Max. |
| DALl Interface Standard | IEC62386-101,102,207 | ||
| Dimming Range | 0.5% |
Logarithmic |
100% |
| DA1,DA2 Current | 0 |
2mA |
|
