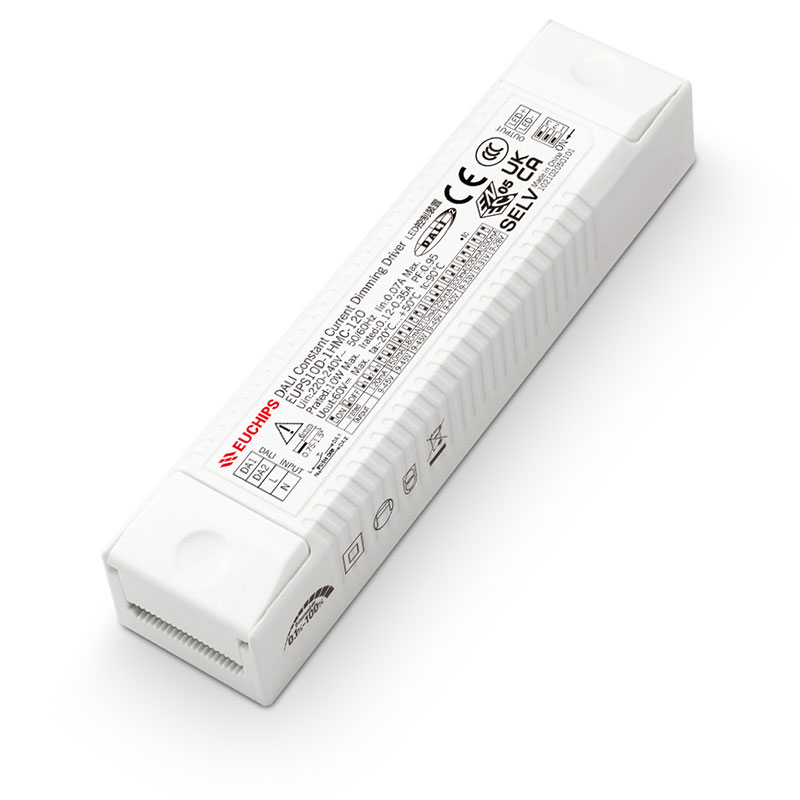

10W 120~350mA*1ch DALI CC Driver EUPS10D-1HMC-120

Features

· Single-channel output, and the output current can be adjusted and selected by dip
· Comply with DALI protocol standard IEC62386
· Efficiency up to 81%
· High voltage input: 220VAC ~ 240VAC
· Protection level IP20, suitable for indoor ⅠⅡⅢ lamps
· Dimming range 0.1%-100% dimming, smooth dimming without step sense and stroboscopic
· Built-in PFC chip to improve energy efficiency and reduce pollution
· Short circuit, overvoltage, overload, V0 class flame retardant housing
· Suitable for LED indoor lamps, such as downlights, panel lights, etc

Technical Parameters

Model	EUPS10D-1HMC-120
Input	Input Voltage	220VAC-240VAC
	Frequency Range(Hz)	50/60Hz
	Input Current	0.07Amax@230VAC
	Power Factor	0.95@230VAC, Full load
	Efficiency	81%@230VAC, Full load
	THD	10%@230VAC, Full load
	Standby power	<0.5W
	No-load power	<0.5W
	Inrush Current	Cold start,4.68A@230V 22.4us
Output	Output Voltage	120mA/9-45VDC/5.4W 150mA/9-45VDC/6.75W 180mA/9-45VDC/8.1W 210mA/9-45VDC/9.45W 250mA/9-40VDC/10W 300mA/9-33VDC/9.9W 320mA/9-31VDC/9.92W 350mA/9-28DC/9.8W
	Output Current
	Output Power
	Current Accuracy	±5%
	Voltage Accuracy	/
	Output Power Range	0W~10W
	PstLM	≤1
	SVM	≤0.4
	Dimming frequency	20KHz
	Line Regulation	±1% @Full load
	Load Regulation	±0.5% @Full load
	Turn on delay Time	0.75s, at230Vac (When the light begins to shine)
Function	Dimming Type	DALI
	Dimming Range	0.1%-100% Dimming to OFF
	Dimming Curve	Logarithm
	Flicker free	Flicker free
Protection	Short circuit	Hiccups, troubleshooting after self-recovery
	Over Current	/
	Over load	Load power ≥130% protection; Current down, troubleshooting output normal
	Over Voltage	Hiccups, troubleshooting after self-recovery
	Over temperature	/
Safety& EMC	Surge	L-N:1KV
	Withstand Voltage	I/P-O/P: 3000VAC/1min/5mA I/P-DALI( Signal port ):1500VAC/1min/5mA O/P-DALI( Signal port ):1500Vac/1min/<5mA
	Safety Standards	CCC (China) GB19510.1，GB19510.14 TUV (Germany) EN61347-1，EN61347-2-13，EN62493
		CB (CBmember states) IEC61347-1，IEC61347-2-13 CE (European Union) EN61347-1，EN61347-2-13，EN62384
		RCM (Australia) AS 61347-1，AS 61347-2-13 ENEC (Europe) EN61347-1，EN61347-2-13，EN62384
	EMC Emission	CCC (China) GB/T17743，GB17625.1
		CE (European Union) EN55015，EN61000-3-2，EN61000-3-3，EN61547
		RCM (Australia) EN55015，EN61000-3-2，EN61000-3-3，EN61547
	EMC Immunity	EN61000-4-2, 3, 4, 5, 6, 8, 11; EN61547
Environment	Working Temp.	-20℃~50℃
	Storage Temp.	-40℃~85℃
	Storage Humidity	20-90%RH (No condensation)
Others	RoHS	Comply with 2011/65/EU
	tc	75℃
	material	PC
	IP Rating	IP20
	Lifetime	50,000h@tc:75℃
	Warranty Condition	5years
	Switch Cycle	25,000times
	Body size	12529.622.6mm (LWH)
	Packing(weight)	Net weight: 72g±5%/PCS; 120PCS/Carton; 9.14kg±5%/Carton; Carton Size: 433230200mm(LWH)
	Noise	In a quiet environment, no noise beyond 30-50cm
Remark	All parameters were measured at an input voltage of 230VAC/50Hz and an ambient temperature of 25 ℃ without any special instructions.
