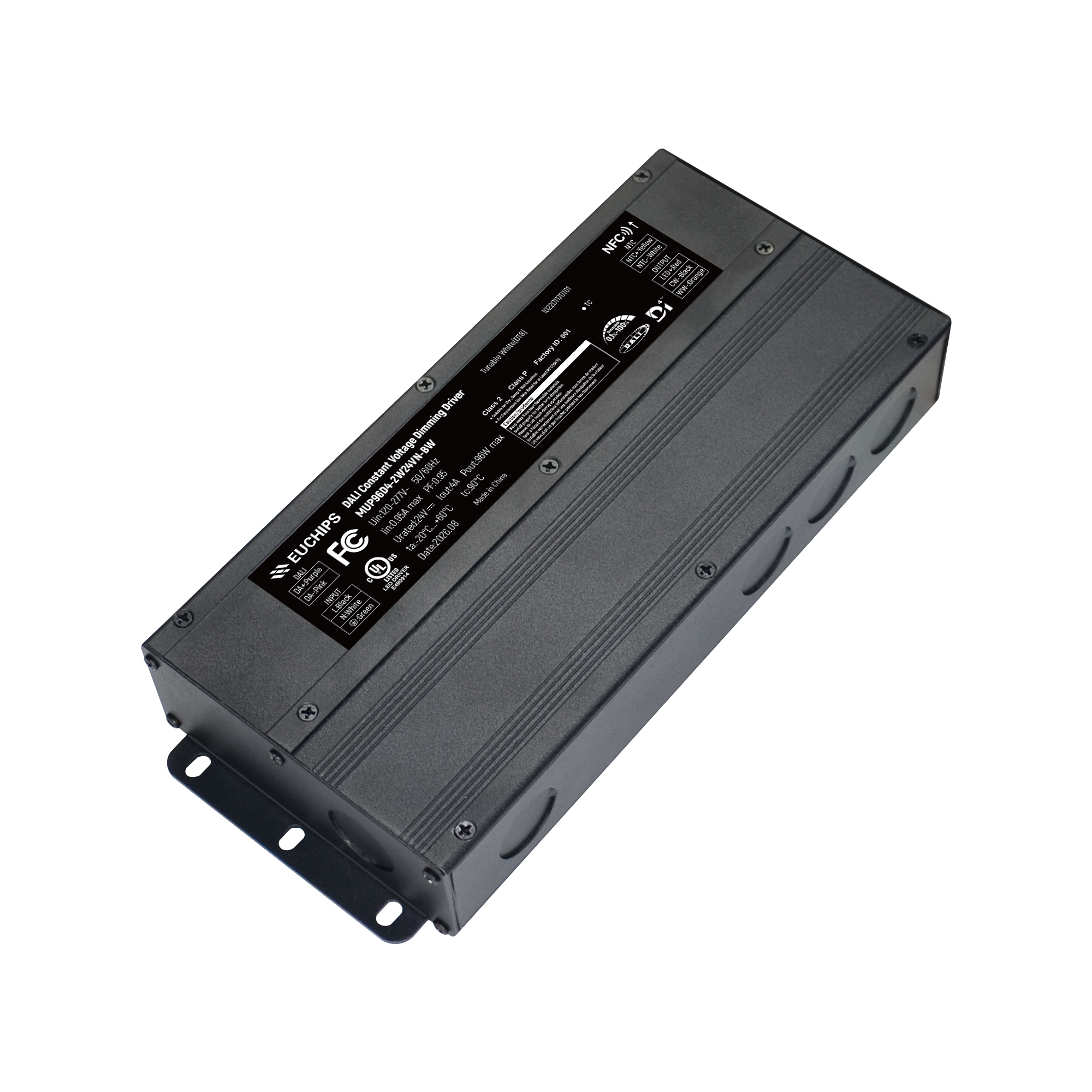

96W 24VDC 2ch D4i NFC CV Driver MUP96D4-2W24VN-BW

Send email to us Download Spec.

Download Certificates Download Test Reports

Product Detail

Standard-compliant (DiiA) digital interface including:
Integrated DALI bus power supply (Part 250)
Memory Bank 1 extension, Energy Monitoring and Diagnostics (Parts 251, 252, 253)
Energy metering and advanced diagnostics
Continuous dimming down to 1%
Supports DC input
Class 2 output
5-year limited warranty

Model	MUP96D4-2W24VN-BW
Input	Efficiency	≥89%@120VAC, ≥91%@277VAC, full load
	Voltage	120VAC-277VAC
	Voltage(DC)	170VDC-280VDC
	Frequency Range(Hz)	50/60Hz
	AC Current(max)	0.95Amax @120VAC, 0.55Amax@230VAC, 0.45Amax@277VAC
	PF	≥0.98@120VAC, ≥0.95@277VAC, full load
	THD	<10%@120VAC, <15%@277VAC, full load
	Inrush Current(max)	Cold start,12A@120VAC 85us 61A@277VAC 220us
	Standby power	<1W@120VAC
	No load power	<1W@120VAC
	Start-up time	<0.75s, @120Vac (time-to-first-light)
Output	Current	4A
	Voltage	24VDC
	Voltage Range	24VDC ±5%
	Power	96W
	Channel	2
	Load Regulation	±5%
	Line Regulation	±1%
	Power limit	≥120%
	Ripple	≤720mV
	PWM Frequency	3.3K Hz
Function	Dimming Type	DALI-2 DT8 D4i
	Dimming Range	1%-100%
	Dimming curve	Logarithm
	Color Temperature Range	2700K-6500K (Default:2700K)
	Flicker	Flicker free
	Touch DIM (Push DIM)	N/A
Protection	Short Circuit	Hiccup Protection, Auto-recovery after Fault Clearance
	Overload	Hiccup Protection, Auto-recovery after Fault Clearance
	Overcurrent	Hiccup Protection, Auto-recovery after Fault Clearance
	Extemal NTC Thermal Prot.	Output power reduces with temperature rise, auto-recovers after cooling.
