PEE Non-dimmable CV Waterproof

Dimming Signal
CC/CV
Input Voltage
Output Voltage
Output Current
Output Power
Output Channel
Application Area
Product Category
Certification
Download CSV Display as Poster

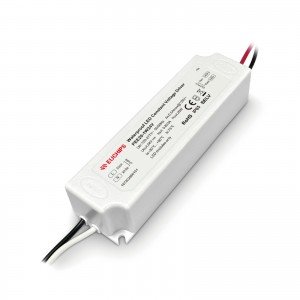

  • 20W 24VDC Non-dimmable Waterproof CV Driver PEE20-1W24V

    20W 24VDC Non-dimmable Waterproof CV Driver PEE20-1W24V

    20W 24VDC Non-dimmable Waterproof CV Driver PEE20-1W24V Features  ·Insolated PC design ·Isolated design,safe and reliable ·Protections: Short circuit, Over load, over current ·Protection grades is as high as IP65 ·5 years warranty Technical Parameters Model PEE20-1W24V    Input Efficiency ≥86%@230VAC, Full load Voltage 120VAC-277VAC Frequency 50/60Hz Current 0.5Amax@120VAC No load power <0.5W Inrush Current Cold start,18A@230VAC 20us    Output Current/Voltage/Power 0.833A/...

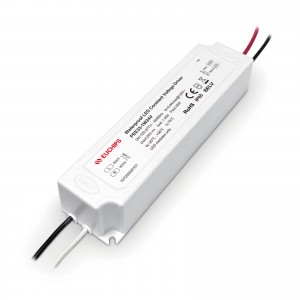

  • 35W 24VDC Non-dimmable Waterproof CV Driver PEE35-1W24V

    35W 24VDC Non-dimmable Waterproof CV Driver PEE35-1W24V

    35W 24VDC Non-dimmable Waterproof CV Driver PEE35-1W24V Features ·Insolated PC design ·Isolated design,safe and reliable ·Protections: Short circuit, Over load, over current ·Protection grades is as high as IP65 ·5 years warranty Technical Parameters Model PEE35-1W24V   Input Efficiency ≥87%@230VAC, Full load Voltage 120VAC-277VAC Frequency 50/60Hz Current 0.9Amax@120VAC No load power <0.5W PF ≥0.5@120VAC, full load Inrush Current Cold start,29A@230VAC 20us Turn On Delay...

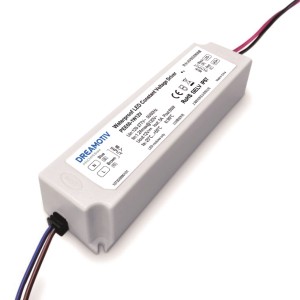

  • 60W 12VDC Non-dimmable Waterproof CV Driver PEE60-1W12V

    60W 12VDC Non-dimmable Waterproof CV Driver PEE60-1W12V

    60W 12VDC Non-dimmable CV Driver PEE60-1W12V Features ·Width voltage input,full power output ·Insolated PC design ·Isolated design,safe and reliable ·Protections:Over load,Short circuit,over voltage ·Comply with UL/FCC CE/SELV ·Protection grades is as high as IP67 ·2 years warranty Technical Parameters Model PEE60-1W12V     Input Efficiency 85%@230VAC, Full load Voltage 120VAC-277VAC Frequency 50/60Hz Power Factor ≥0.5@230VAC, full load Current 1.2Amax@120VAC Standby ...

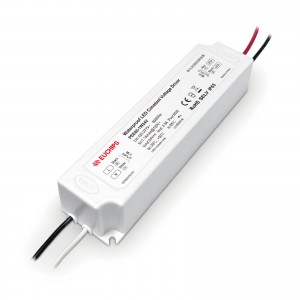

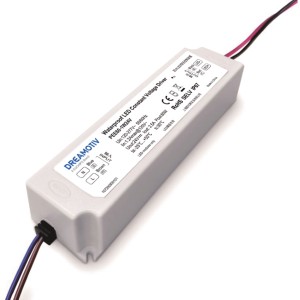

  • 60W 24VDC Non-dimmable Waterproof CV Driver PEE60-1W24V

    60W 24VDC Non-dimmable Waterproof CV Driver PEE60-1W24V

    60W 24VDC Non-dimmable CV Driver PEE60-1W24V Features ·Width voltage input,full power output ·Insolated PC design ·Isolated design,safe and reliable ·Protections:Over load,Short circuit,over voltage ·Comply with UL/FCC CE/SELV ·Protection grades is as high as IP67 ·2 years warranty Technical Parameters Model PEE60-1W24V     Input Efficiency 86%@230VAC, Full load Voltage 120VAC-277VAC Frequency 50/60Hz Power Factor ≥0.5@230VAC, full load Current 1.2Amax@120VAC Standby ...

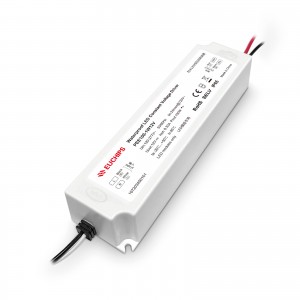

  • 100W 12VDC Non-dimmable Waterproof CV Driver PEE100-1W12V

    100W 12VDC Non-dimmable Waterproof CV Driver PEE100-1W12V

    100W 12VDC Non-dimmable CV Driver PEE100-1W12V Features ·Width voltage input,full power output ·Insolated PC design ·Isolated design,safe and reliable ·Protections:Over load,Short circuit,over voltage ·Comply with UL/FCC CE/SELV ·Protection grades is as high as IP67 ·2 years warranty Technical Parameters Model PEE100-1W12V     Input Efficiency >86%@230VAC, Full load Voltage 120VAC-277VAC Frequency 50/60Hz Power Factor ≥0.5@230VAC, full load Current 1.98Amax@120VAC ...

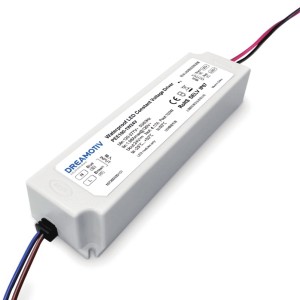

  • 100W 24VDC Non-dimmable Waterproof CV Driver PEE100-1W24V

    100W 24VDC Non-dimmable Waterproof CV Driver PEE100-1W24V

    100W 24VDC Non-dimmable CV Driver PEE100-1W24V Features ·Width voltage input,full power output ·Insolated PC design ·Isolated design,safe and reliable ·Protections:Over load,Short circuit,over voltage ·Comply with UL/FCC CE/SELV ·Protection grades is as high as IP67 ·2 years warranty Technical Parameters Model PEE100-1W24V     Input Efficiency >86%@230VAC, Full load Voltage 120VAC-277VAC Frequency 50/60Hz Power Factor ≥0.5@230VAC, full load Current 1.98Amax@120VAC ...

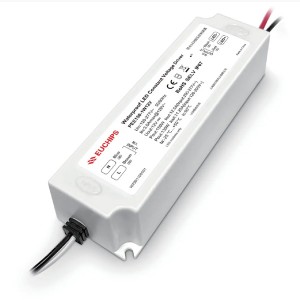

  • 150W 12VDC Non-dimmable Waterproof CV Driver PEE150-1W12V

    150W 12VDC Non-dimmable Waterproof CV Driver PEE150-1W12V

    150W 12VDC Non-dimmable Waterproof CV Driver PEE150-1W12V Features ·Width voltage input,full power output ·Insolated PC design ·Isolated design,safe and reliable ·Protections:Over load,Short circuit,over voltage ·Comply with UL/FCC CE/SELV ·Protection grades is as high as IP67 ·2 years warranty Technical Parameters Model PEE150-1W12V   Input Efficiency >87%@230VAC, Full load Voltage 120VAC-277VAC Frequency 50/60Hz Power Factor ≥0.5@230VAC, full load Current 3.0Amax@120VAC...

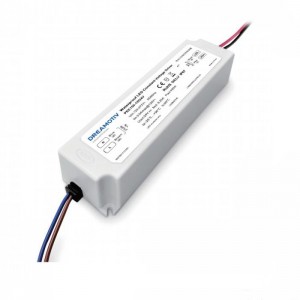

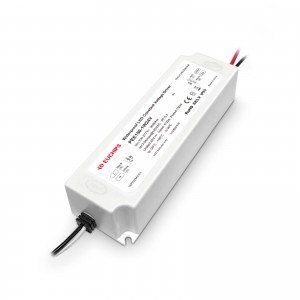

  • 150W 24VDC Non-dimmable Waterproof CV Driver PEE150-1W24V

    150W 24VDC Non-dimmable Waterproof CV Driver PEE150-1W24V

    150W 24VDC Non-dimmable Waterproof CV Driver PEE150-1W24V Features ·Width voltage input,full power output ·Insolated PC design ·Isolated design,safe and reliable ·Protections:Over load,Short circuit,over voltage ·Comply with UL/FCC CE/SELV ·Protection grades is as high as IP67 ·2 years warranty Technical Parameters Model PEE150-1W24V     Input Efficiency >88%@230VAC, Full load Voltage 120VAC-277VAC Frequency 50/60Hz Power Factor ≥0.5@230VAC, full load Current 3.0Amax...
  • 150W 36VDC Non-dimmable Waterproof CV Driver PEE150-1W36V

    150W 36VDC Non-dimmable Waterproof CV Driver PEE150-1W36V

    150W 36VDC Non-dimmable Waterproof CV Driver PEE150-1W36V Features ·full power output ·Insolated PC design ·Isolated design,safe and reliable ·Protections:Over load,Short circuit,over Current ·Protection grades is as high as IP65 ·5 years warranty ·No Flicker Technical Parameters Model PEE150-1W36V     Input Efficiency >88.5%@230VAC, Full load Voltage 120VAC-277VAC Frequency 50/60Hz Power Factor ≥0.5@230VAC, full load Current 3.0Amax@120VAC Inrush Voltage Cold s...
  • 60W 12VDC Non-dimmable Waterproof CV Driver PEE60-1H12V

    60W 12VDC Non-dimmable Waterproof CV Driver PEE60-1H12V

    60W 12VDC Non-dimmable CV Driver PEE60-1H12V Features ·Insolated PC design ·Isolated design,safe and reliable ·Protections: Short circuit, Over load, over current ·Protection grades is as high as IP65 ·5 years warranty Technical Parameters Model PEE60-1H12V Input Efficiency ≥86%@230VAC, Full load Voltage 220VAC-240VAC Frequency 50/60Hz Power Factor ≥0.95@230VAC, full load Current 0.36Amax@230VAC THD <10%@230VAC, full load No load power <0.5W Inrush Current Cold start...
  • 60W 24VDC Non-dimmable Waterproof CV Driver PEE60-1H24V

    60W 24VDC Non-dimmable Waterproof CV Driver PEE60-1H24V

    60W 24VDC Non-dimmable CV Driver PEE60-1H24V Features ·Insolated PC design ·Isolated design,safe and reliable ·Protections: Short circuit, Over load, over current ·Protection grades is as high as IP65 ·5 years warranty Technical Parameters Model PEE60-1H24V Input Efficiency ≥86%@230VAC, Full load Voltage 220VAC-240VAC Frequency 50/60Hz Power Factor ≥0.95@230VAC, full load Current 0.32Amax@230VAC THD <10%@230VAC, full load No load power <0.5W Inrush Current Cold start...
  • 60W 36VDC Non-dimmable Waterproof CV Driver PEE60-1H36V

    60W 36VDC Non-dimmable Waterproof CV Driver PEE60-1H36V

    60W 36VDC Non-dimmable Waterproof CV Driver PEE60-1H36V Features ·Insolated PC design ·Isolated design,safe and reliable ·Protections: Short circuit, Over load, over current ·Protection grades is as high as IP65 ·5 years warranty Technical Parameters Model PEE60-1H36V Input Efficiency ≥86%@230VAC, Full load Voltage 220VAC-240VAC Frequency 50/60Hz Power Factor ≥0.95@230VAC, full load Current 0.35Amax@230VAC THD <10%@230VAC, full load No load power <0.5W Inrush Curr...
12 Next > >> Page 1 / 2
