  • 10W 12VDC Non-dimmable Waterproof CV Driver PE10-1W12V

    10W 12VDC Non-dimmable Waterproof CV Driver PE10-1W12V

    10W 12VDC Non-dimmable Waterproof CV Driver PE10-1W12V Features ·Width voltage input,full power output ·Insolated PC design ·Isolated design,safe and reliable ·Protections:Over load,Short circuit,over voltage ·Comply with UL/CE/SELV ·Protection grades is as high as IP67 ·5 years warranty Technical Parameters Model PE10-1W12V   Input Efficiency 83%@120VAC, Full load Voltage 120VAC-277VAC Frequency 50/60Hz Power Factor ≥0.5@120VAC, full load Current 0.25Amax@120VAC Standby P...
  • 10W 24VDC Non-dimmable Waterproof CV Driver PE10-1W24V

    10W 24VDC Non-dimmable Waterproof CV Driver PE10-1W24V

    10W 24VDC Non-dimmable Waterproof CV Driver PE10-1W24V Features ·Width voltage input,full power output ·Insolated PC design ·Isolated design,safe and reliable ·Protections:Over load,Short circuit,over voltage ·Comply with UL/CE/SELV ·Protection grades is as high as IP67 ·5 years warranty Technical Parameters Model PE10-1W24V Input Efficiency 82%@120VAC, Full load Voltage 120VAC-277VAC Frequency 50/60Hz Power Factor ≥0.5@120VAC, full load Current 0.25Amax@120VAC Standby Power &l...
  • 24W 12VDC Non-dimmable Waterproof CV Driver PE24-1W12V

    24W 12VDC Non-dimmable Waterproof CV Driver PE24-1W12V

    24W 12VDC Non-dimmable Waterproof CV Driver PE24-1W12V Features ·Width voltage input,full power output ·Insolated PC design ·Isolated design,safe and reliable ·Protections:Over load,Short circuit,over voltage ·Comply with UL/CE/SELV ·Protection grades is as high as IP67 ·5 years warranty Technical Parameters Model PE24-1W12V     Input Efficiency 85%@120VAC, Full load Voltage 120VAC-277VAC Frequency 50/60Hz Power Factor ≥0.5@120VAC, full load Current 0.55Amax@120VAC St...
  • 40W 12VDC Non-dimmable Waterproof CV Driver PE40-1W12V

    40W 12VDC Non-dimmable Waterproof CV Driver PE40-1W12V

    40W 12VDC Non-dimmable Waterproof CV Driver PE40-1W12V Features ·Width voltage input,full power output ·Insolated PC design ·Isolated design,safe and reliable ·Protections:Over load,Short circuit,over voltage ·Comply with UL/CE/SELV ·Protection grades is as high as IP67 ·5 years warranty Technical Parameters Model PE40-1W12V     Input Efficiency 86%@120VAC, Full load Voltage 120VAC-277VAC Frequency 50/60Hz Power Factor ≥0.5@120VAC, full load Current 0.9Amax@120VAC Sta...
  • 40W 24VDC Non-dimmable Waterproof CV Driver PE40-1W24V

    40W 24VDC Non-dimmable Waterproof CV Driver PE40-1W24V

    40W 24VDC Non-dimmable Waterproof CV Driver PE40-1W24V Features ·Width voltage input,full power output ·Insolated PC design ·Isolated design,safe and reliable ·Protections:Over load,Short circuit,over voltage ·Comply with UL/CE/SELV ·Protection grades is as high as IP67 ·5 years warranty Technical Parameters Model PE40-1W24V   Input Efficiency 86%@120VAC, Full load Voltage 120VAC-277VAC Frequency 50/60Hz Power Factor ≥0.5@120VAC, full load Current 0.9Amax@120VAC Standby Po...

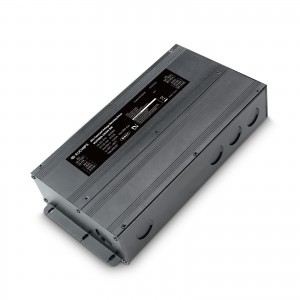

  • 96W 24VDC NFC D4i CV Driver MUP96D4-2W24V-BW

    96W 24VDC NFC D4i CV Driver MUP96D4-2W24V-BW

    96W 24VDC NFC D4i CV Driver MUP96D4-2W24V-BW Features · Dual channel constant voltage output, Output Current 4A Max · Input Voltage Range 108-305Vac · Following the DALI protocol standard IEC62386-101 102 207 209(DT8) · Dimming effect smooth, flicker free · 100% output when no dimming signal input, can be used as normal power supply · Protection: Overload, short circuit, Overcurrent, Over-temperature · Safety according to UL8750 &UL 1310 · Class 2 Output · Metal Junction Box Design · Sui...
  • 96W 24VDC DALI&0/1-10V CV Driver MUP96AD-1W24V-B

    96W 24VDC DALI&0/1-10V CV Driver MUP96AD-1W24V-B

     96W 24VDC DALI&0/1-10V CV Driver MUP96AD-1W24V-B  MUP96AD-1W24V-B is a constant voltage mode output LED driver. This driver complies with DALI standard protocol IEC 62386, and provides DALI,0/1-10V active signal dimming. Features · Single channel constant voltage output,4A Max · Wide input voltage of 120VAC ~ 277VAC · Dimming range of 0.1-100%, and dimming effect smooth, Flicker free · 100% output when no dimming signal input, can be used as normal power supply · Protection: Over load; s...
  • 192W 24VDC 2ch DALI&0/1-10V CV Driver MUP192ADS-2W24V-B

    192W 24VDC 2ch DALI&0/1-10V CV Driver MUP192ADS-2W24V-B

    192W 24VDC 2ch DALI&0/1-10V CV Driver MUP192ADS-2W24V-B MUP192ADS-2W24V-B is a constant voltage mode output LED driver. This driver complies with DALI standard protocol IEC 62386, and provides DALI,0/1-10V active signal dimming. Features · Dual channel constant voltage output, the maximum output current per channel is 4A · Wide input voltage of 120VAC ~ 277VAC · Dimming range of 0.1-100%, and dimming effect smooth, Flicker free · 100% output when no dimming signal input, can be used as no...
  • 280W 24VDC 3ch DALI&0/1-10V CV Driver MUP288ADS-3W24V-B

    280W 24VDC 3ch DALI&0/1-10V CV Driver MUP288ADS-3W24V-B

    280W 24VDC 3ch DALI&0/1-10VDALI&0/1-10V CV Driver MUP288ADS-3W24V-B MUP288ADS-3W24V-B is a constant voltage mode output LED driver. This driver complies with DALI standard protocol IEC 62386, and provides DALI,0/1-10V active signal dimming. Features · Single channel constant voltage output,4A Max · Wide input voltage of 120VAC ~ 277VAC · Dimming range of 0.1-100%, and dimming effect smooth, Flicker free · 100% output when no dimming signal input, can be used as normal power supply · I...
  • 60W 12VDC 0/1-10V CV Driver MUP60A-1W12V

    60W 12VDC 0/1-10V CV Driver MUP60A-1W12V

     60W 12VDC 0/1-10V CV Driver MUP60A-1W12V MUP60A-1W12V is a constant voltage mode output LED driver. This driver can be controlled by external signal (0/1-10V active signal, adjustable resistance and PWM signal) to achieve a smooth dimming effect. Features ·Single channel constant voltage output,5.0A Max ·Support 3-in-1 dimming mode( 0/1-10V active signal, adjustable resistance and PWM signal) ·High input voltage of 120VAC ~ 277VAC ·Dimming range of 1-100%, and dimming effect smooth, no flick...
  • 20W 12VDC Non-dimmable Waterproof CV Driver PEE20-1W12V

    20W 12VDC Non-dimmable Waterproof CV Driver PEE20-1W12V

    20W 12VDC Non-dimmable Waterproof CV Driver PEE20-1W12V Features  ·Insolated PC design ·Isolated design,safe and reliable ·Protections: Short circuit, Over load, over current ·Protection grades is as high as IP65 ·5 years warranty Technical Parameters Model PEE20-1W12V   Input Efficiency ≥84%@230VAC, Full load Voltage 120VAC-277VAC Frequency 50/60Hz Current 0.5Amax@120VAC No load power ≤0.5W PF ≥0.5@120Vac Inrush Current Cold start 40A@230VAC 200us Turn On Delay Tim...
  • 20W 24VDC Non-dimmable Waterproof CV Driver PEE20-1W24V

    20W 24VDC Non-dimmable Waterproof CV Driver PEE20-1W24V

    20W 24VDC Non-dimmable Waterproof CV Driver PEE20-1W24V Features  ·Insolated PC design ·Isolated design,safe and reliable ·Protections: Short circuit, Over load, over current ·Protection grades is as high as IP65 ·5 years warranty Technical Parameters Model PEE20-1W24V   Input Efficiency ≥86%@230VAC, Full load Voltage 120VAC-277VAC Frequency 50/60Hz Current 0.5Amax@120VAC No load power <0.5W Inrush Current Cold start,18A@230VAC 20us   Output Current/Voltage/Power 0.833A/24...
