10W 120~350mA*1ch Triac CC Driver PUP10T-1LMC-350
10W 120~350mA*1ch Triac CC Driver PUP10T-1LMC-350

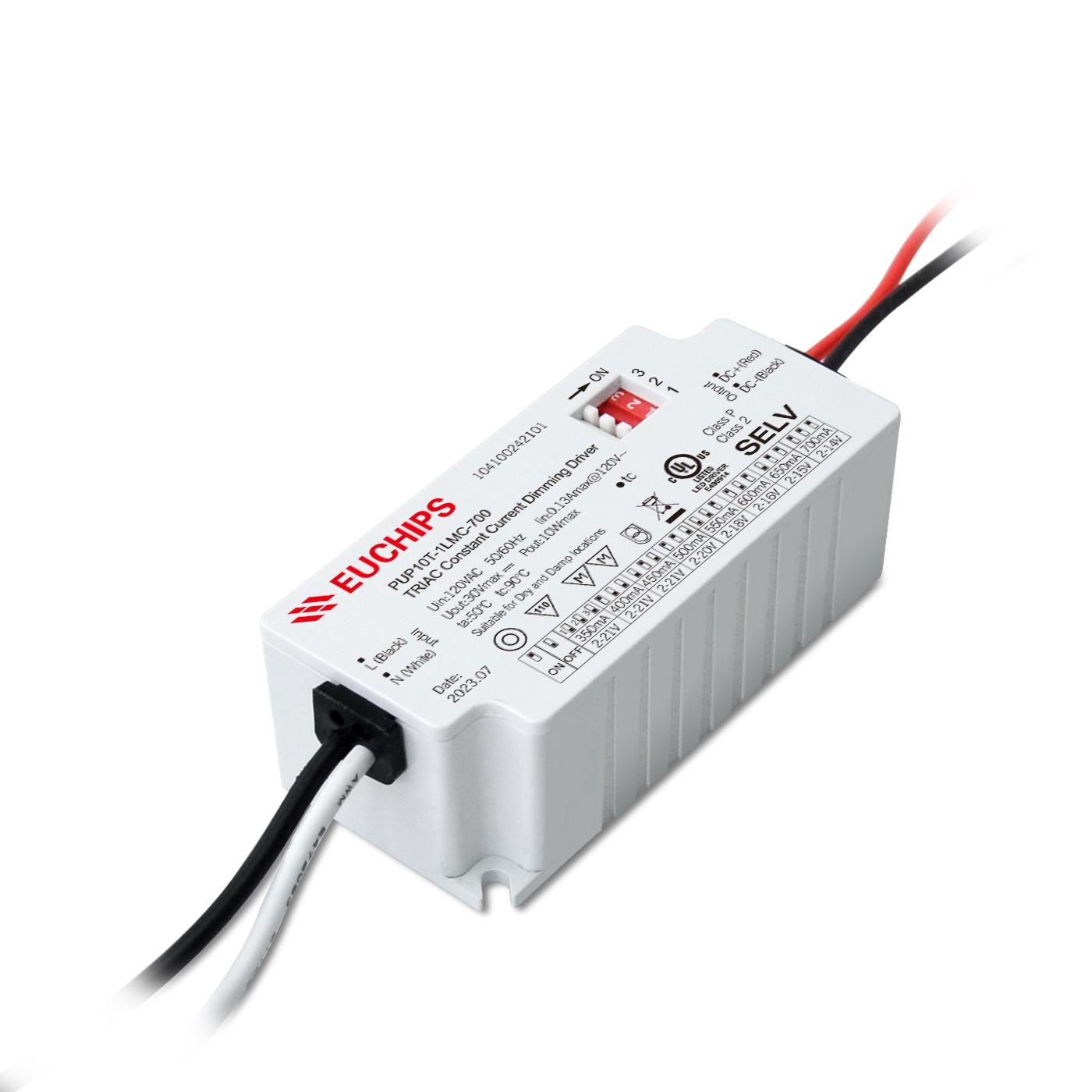

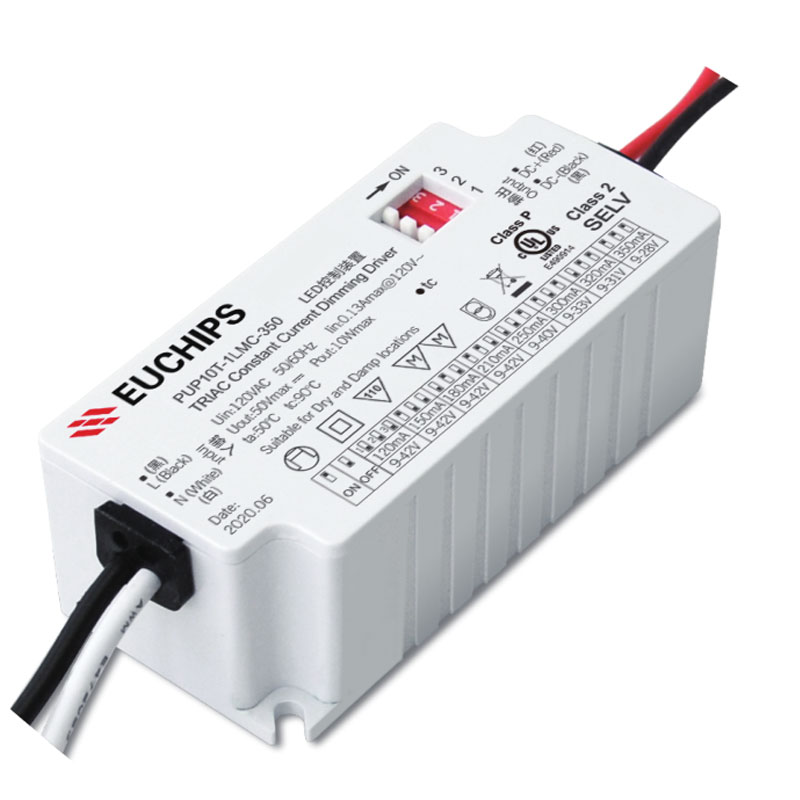

PUP10T-1LMC-350 is a constant current output mode LED driver.The output current can be easily set via DIP switch.The driver supports leading edge (Triac) and trailing edge (ELV) dimmer, achieve a smooth dimming effect.
Features
1. Single channel output, output current level selectable by DIP S.W.
2. Support Leading edge (Triac) and Trailing edge (ELV) dimmer
3. Built-in active PFC function
4. Class Ⅱ power supply. Full protective plastic housing
5. Dimming effect smooth, no flicker
6. Protections: Short circuit, over load, over voltage
7. Suitable for indoor LED lighting application, such as down light, spotlights, panel light, and so on
Technical Parameters
| Model | PUP10T-1LMC-350 | ||||
| Input | Efficiency | 70%@120VAC, Full load | |||
| Voltage | 120-277VAC | ||||
| Frequency | 50/60Hz | ||||
| Power Factor | 0.92@120VAC,Full load | ||||
| THD(full load) | <20%@120VAC, Full load | ||||
| AC Current(max) | 0.13Amax@120VAC | ||||
| Inrush Current(max) | Cold start,30A@120VAC | ||||
| Output | |||||
| Current(mA)Voltage (VDC)Power(W) | 120mA/9-42VDC/5.04W | 150mA/9-42VDC/6.3W | 180mA/9-42VDC/7.56W | 210mA/9-42VDC/6.3W | |
| *250mA/9-40VDC/10W | *300mA/9-33VDC/9.99W | 320mA/9-31VDC/9.92W | 350mA/9-28VDC/9.8W | ||
| Ripple Current | <3% | ||||
| Channel | 1 | ||||
| Current Tolerance | ±5% | ||||
| No load output voltage | 50V Max | ||||
| Turn on delay Time | <1s, at120Vac | ||||
| Function | Dimming Type | Triac | |||
| Dimming Range | 3%-100% | ||||
| Protection | Over Voltage | Hiccup, recovers after fault condition is remove | |||
| Short Circuit | Shut down the output automatically recovers after faulty condition is removed | ||||
| Over Load | When the output voltage is exceeded, decreases and, recovers automatically when the load is reduced. | ||||
| Safety& EMC | Surge | L-N:0.5kV; | |||
| Withstand Voltage | I/P-O/P: 3000VAC/1min/5mA | ||||
| Safety Standards | EN61347-2-13 | ||||
| EMC Eission | EN55015 | ||||
| EMC Immunity | EN61000-3-3 EN61000-4-3 EN61000-4-4 EN61000-4-5 | ||||
| Others | Working Temp. | -20℃~50℃ | |||
| Storage Temp., Humidity | -40℃~85℃, 20-90%RH | ||||
| tc | 90℃ | ||||
| Material | PC | ||||
| IP Rating | IP20 | ||||
| Lifetime | 50,000h@tc:85℃ | ||||
| Warranty Condition | 5 years | ||||
| Switch Cycle | >25,000 tims | ||||
| Pack Information | N.W: 96g±5%/PCS; 100PCS/Carton; 10.1kg±5%/Carton; Carton Size: 398x210x208mm(L*W*H) | ||||
| Dimension | 75*35*26.5mm(L*W*H) | ||||
