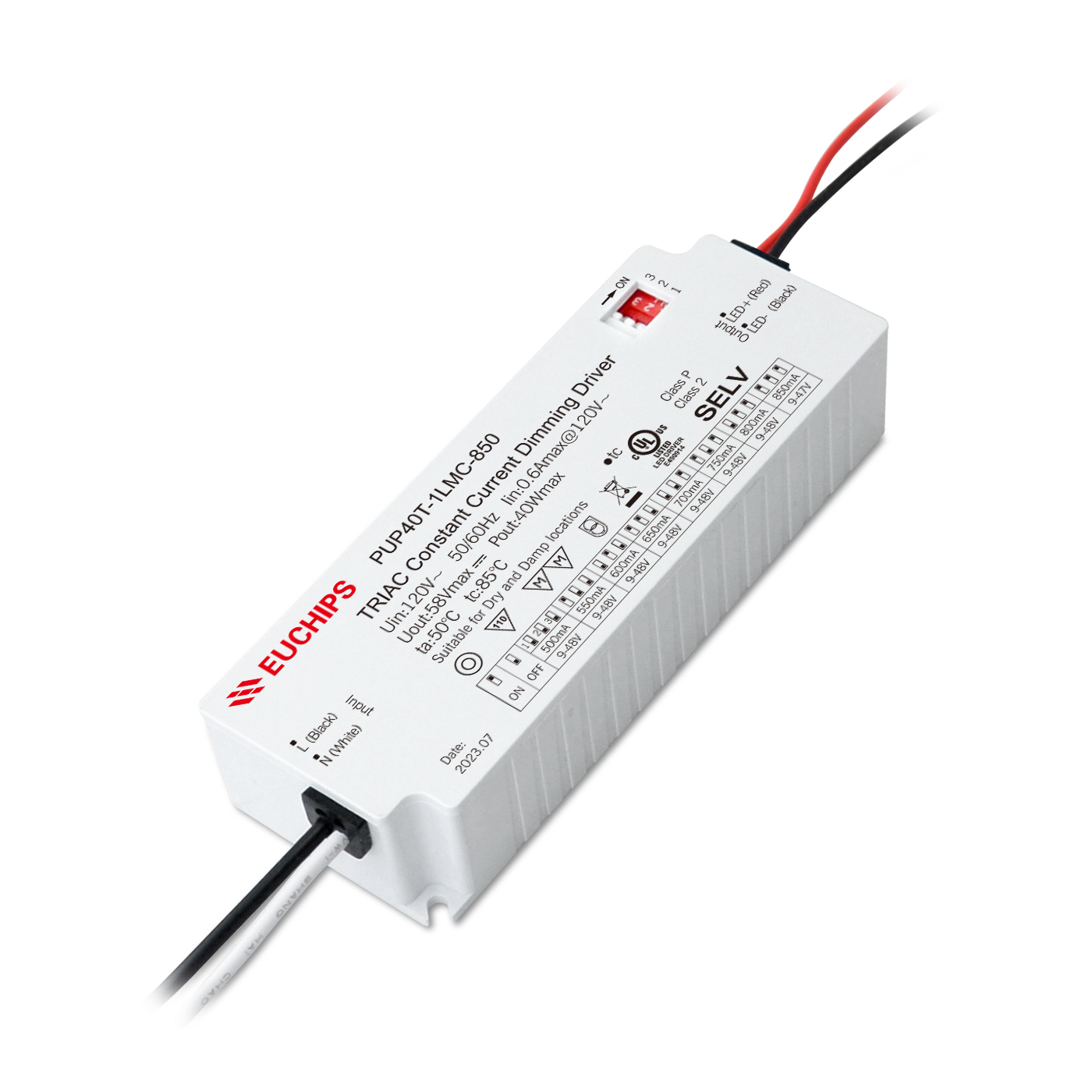

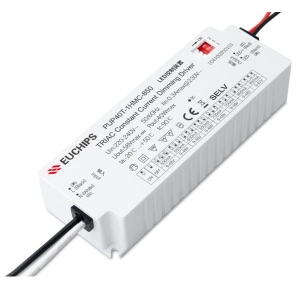

40W 500~850mA*1ch CV Driver PUP40T-1LMC-850
40W 500~850mA*1ch CV Driver PUP40T-1LMC-850
PUP40T-1LMC is a constant current output mode LED driver.The output current can be easily
set via DIP switch.The driver supports leading edge (Triac) and trailing edge (ELV) dimmer,
achieve a smooth dimming effect.
Features
1. Single channel output, output current level selectable by DIP S.W.
2. Support Leading edge (Triac) and Trailing edge (ELV) dimmer
3. Dimming range from 108V to 132VAC
4. Built-in active PFC function
5. Class 2 power supply. Full protective plastic housing
6. Dimming effect smooth, no flicker
7. Protections: Short circuit, over load, over voltage
8. Suitable for indoor LED lighting application, such as down light, spotlights, panel light, and so on
Technical Parameters
| Model | PUP40T-1LMC-850 | |
| Input | Efficiency | >84%@120VAC,850mA ,Full load >83%@120VAC,1200mA ,Full load |
| Voltage | 120VAC(108-132VAC) | |
| Frequency Range(Hz) | 50/60Hz | |
| Power Factor | ≥0.95@120VAC,Full load | |
| THD(full load) | <10%@120VAC, Full load | |
| AC Current(max) | 0.6Amax@120VAC | |
| Inrush Current(max) | Cold start,30A@120VAC | |
| Output | Current(mA)Voltage (VDC)Power(W) 850mA | 500mA/9-48VDC/24W 550mA/9-48VDC/26.4W 600mA/9-48VDC/28.8W 650mA/9-48VDC/31.2W700mA/9-48VDC/33.6W 750mA/9-48VDC/36W 800mA/9-48VDC/38.4W 850mA/9-47VDC/39.95W |
| Current(mA)Voltage (VDC)Power(W) 1200mA | 850mA/9-42VDC/35.7W 900mA/9-42VDC/37.8W 950mA/9-42VDC/39.99W 1000mA/9-40VDC/40W1050mA/9-38VDC/39.9W 1100mA/9-36VDC/39.6W 1150mA/9-34VDC/39.1W 1200mA/9-33VDC/39.6W | |
| Ripple Current | <3% | |
| Channel | 1 | |
| Current Tolerance | ±5% | |
| Standby Power | <3.5W | |
| No load output voltage | 58V Max(850mA) 48VMax(1200mA) | |
| Turn on delay Time | <1.5s, at230Vac (When the light begins to shine) | |
| Function | Dimming Type | Triac |
| Dimming Range | 5%-100% Dimming to off | |
| Protection | Short Circuit | Close output，recovers automatically after fault removed. |
| Over Load | When the output voltage is exceeded, the output current decreases and, recovers automatically when the load is reduced. | |
| Over Temperature | Shut down the output, recovers automatically when temp. back to normal. | |
| Over Voltage | Close output，recovers automatically after fault removed. | |
| Safety& EMC | Surge | L-N:1KV |
| Withstand Voltage | I/P-O/P: 3000VAC/1min/5mA | |
| DALI Standard | UL8750/UL1310/CSA25013,CSA class P | |
| Safety Standards | EN50515,EN61000-3-2 Class C,IEC61000-3-3 | |
| EMC Eission | EN50515,EN61000-3-2 Class C,IEC61000-3-3 | |
| EMC Immunity | EN61000-4-2, 3, 4, 5, 6, 8, 11; EN61547 | |
| Others | Working Temp. | -20℃~45℃ |
| Storage Temp., Humidity | -40℃~85℃, 20-90%RH | |
| tc | 85℃ | |
| Material | PC | |
| IP Rating | IP20 | |
| Lifetime | 50,000h@tc:85℃ | |
| Warranty Condition | 5 years | |
| Switch Cycle | >100,000 tims | |
| Packing(weight) | Net weight: 260g±5%/PCS; 100PCS/Carton; 7kg±5%/Carton; Carton Size: 51.5*23.5*14cm(L*W*H) | |
| Dimension | 121*44*26.5mm（L*W*H） | |
