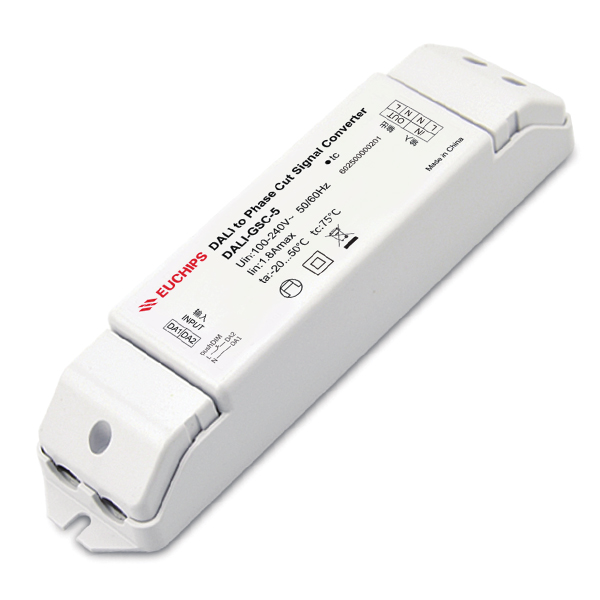

100-240VAC DALI to Phase Cut Signal Converter DALI-GSC-5
100-240VAC DALI to Phase Cut Signal Converter DALI-GSC-5
Features
· Comply with IEC 62386-101:2014, IEC 62386-102:2014, IEC 62386-207 Ed2
· Thyristor phase-cutting dimming controller supporting DALI and Touch DIM dimming
· Controlled LED thyristor dimming power supply, incandescent lamp, AC low voltage lamp, etc
· Wide voltage input 100-240VAC
· One DALI address, one channel output, maximum output current is 1.8A
Technical Parameters
| Input control signal | DALI signal or Touch switch signal |
| Input voltage | 100-240VAC 50/60Hz |
| Output current | 1.8Amax |
| DALI bus dissipation | 2mA max |
| Dimension | 168×39.4×30mm |
| Gross weight | 84g |
| Working Temp. | -20-50℃ |
