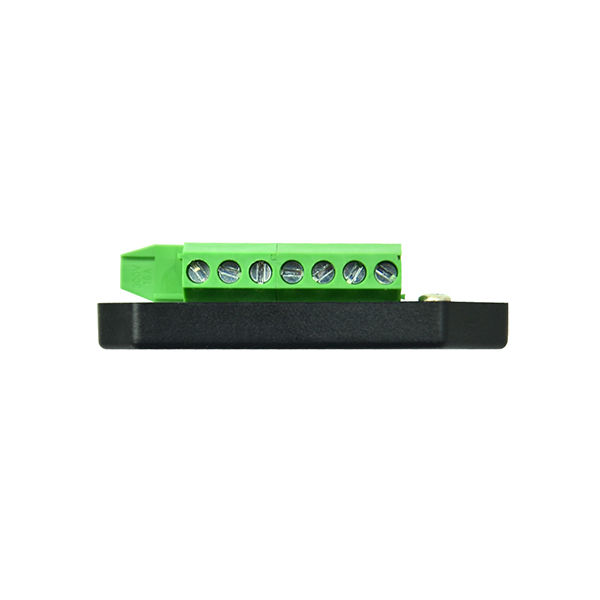

Programmable Contact Access Module EUK06

Short Description:

  • Item No.: EUK06
  • Input Voltage: -
  • Output Current: -
  • Output Voltage: -
  • Output Power: -
  • Dim Mode: -
  • G.W.: 20
  • Size: 44*46*14

Product Detail

Product Tags

Programmable Contact Access Module EUK06


1. Comply with EU-BUS protocol developed by EUCHIPS

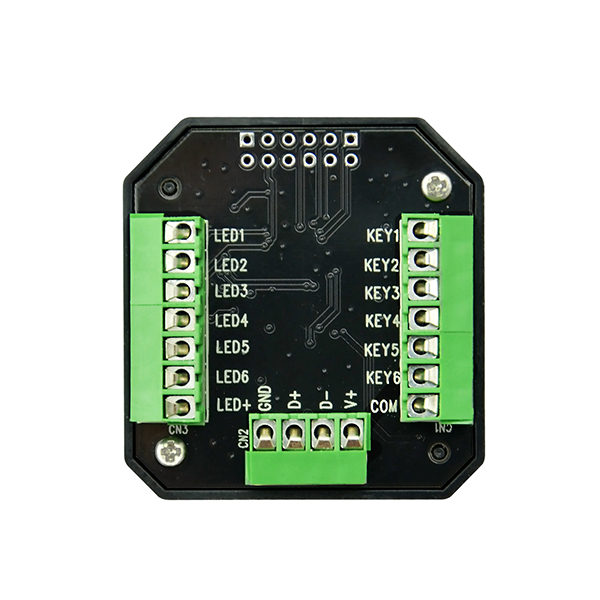

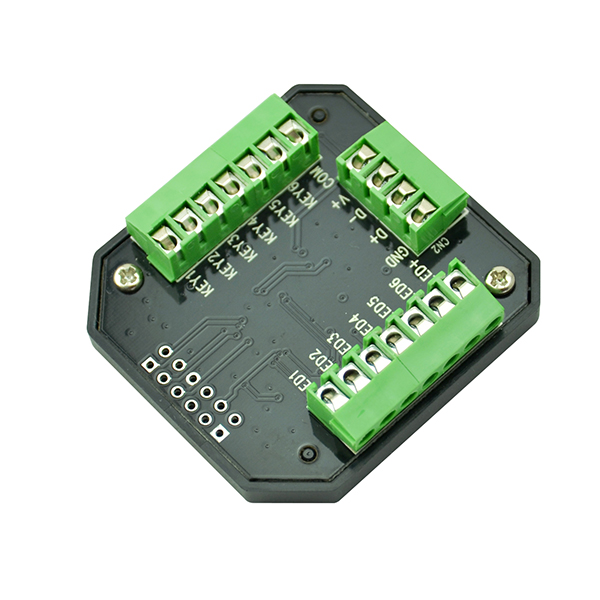

2. Can connect to 6 dry contact signal

3. Can connect 6 LED lights as key backlight

4. Easy to edit the function for each port

5. Supplied via EU-BUS bus, without external power supply

6. Compact, easy to install into the electrical box

Technical Parameter


Power supply Supplied via EU-BUS bus
Protocol EU-BUS
The number of dry contact signal 6
The number of external backlight 6
Dimension 44*46*14mm(L*W*H)
Package size 53*53*21mm(L*W*H)
G.W. 20g
Operational temperature -20℃ ~+50℃

Product Function

Panel, mechanical key, and the contact can be connected to the EU-BUS system via EUK06 easily, and finish quadratic programming function, the user can define port function in PC software- EUCHIPS 9 to achieve the needs of different users.
