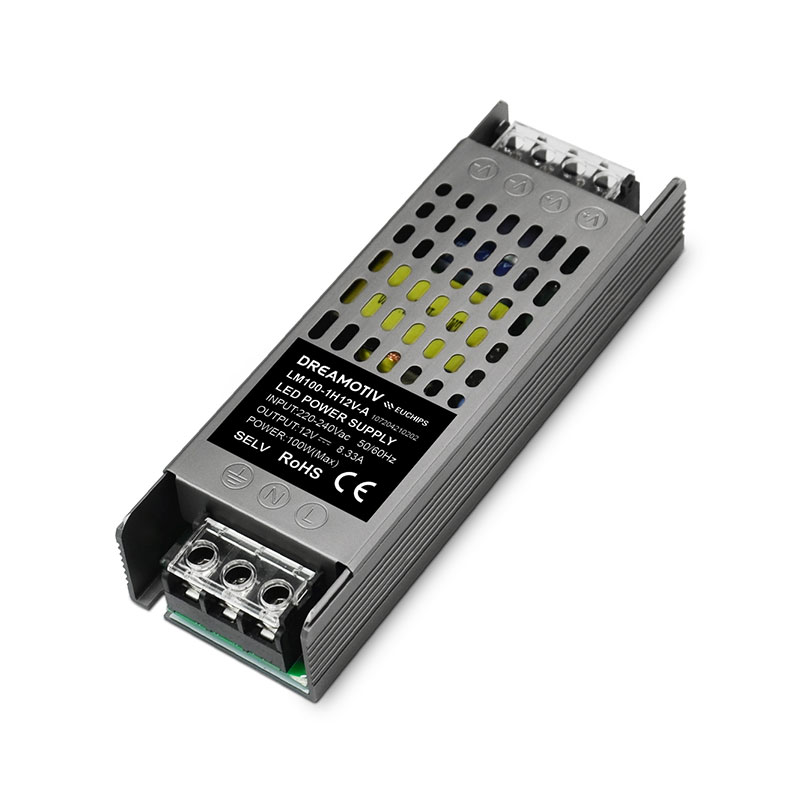

100W 12VDC Non-dimmable CV Driver LM100-1H12V-A

Short Description:

Item No.: LM100-1H12V-A
Output Power: 100W

Product Detail

Product Tags

100W 12VDC Non-dimmable CV Driver LM100-1H12V-A

The circuit of this product is simple, stable and reliable. Long aluminum structure, ordinary constant voltage simple terminal input and output Simple installation, can be used in commercial, home, engineering and other projects.

Features

· Aluminium Casing
· Ultra-low start up temp. （-20℃）
· Ultra-light and easy to install
· High efficiency up to 85%
· High reliability
· Small size, light weight
· No Flicker

Technical Parameters

Model	LM100-1H12V-A
Input	Voltage	220VAC-240VAC
	Frequency Range(Hz)	50/60Hz
	Efficiency	≥85%@230VAC, full load
	PF	≥0.4@230VAC, full load
	Current	1.17Amax@230VAC
	Inrush current	Cold start,60A@230VAC 400us
	No load power	≤1W
	Turn on Time	≤ 0.75 s, at230Vac (When the light begins to shine)
Output	Channel	1
	Voltage	12VDC
	Current	8.33A max
	Power	100W
	Voltage Accuracy	±5%
	No load output voltage	12.6VDC max
Protection	Over load	Reduce voltage protection to troubleshoot normal output
	Short circuit	Short circuit No output, troubleshooting output normal
	Over Current	Reduce voltage protection to troubleshoot normal outpu
	over temperature	Reduce voltage protection to troubleshoot normal output
Safety&EMC	Surge	L-N 1000VAC, LN- Ground cable 2000VAC
	Withstand Voltage	Input pair Output 1500Vac/1min/<5mA Input ground (housing) 1500Vac/1min/<5mA Output ground (housing) 500Vac/1min/<5mA
	Safety standards	IEC/EN62384, IEC/EN61347-1, IEC/EN61347-2-13, GB19510.1, GB19510.14
	Insulation Resisance	5MΩ
Others	Working temp.	ta:-20-45℃
	tc	85℃ @230Vac
	Storage Temp., Humidity	-40℃~85℃, 20-90%RH
	Lifetime	30,000h@tc:50℃
	Warranty	3year
	IP rating	IP20
	Material	metal
	Switch cycle	>25000 times
	Dimension	1455029mm(LWH)
	Packing size	Net weight:–g±5%/PCS; 50PCS/Carton; –kg±5%/Carton; Carton Size: 330294200mm(LWH)
