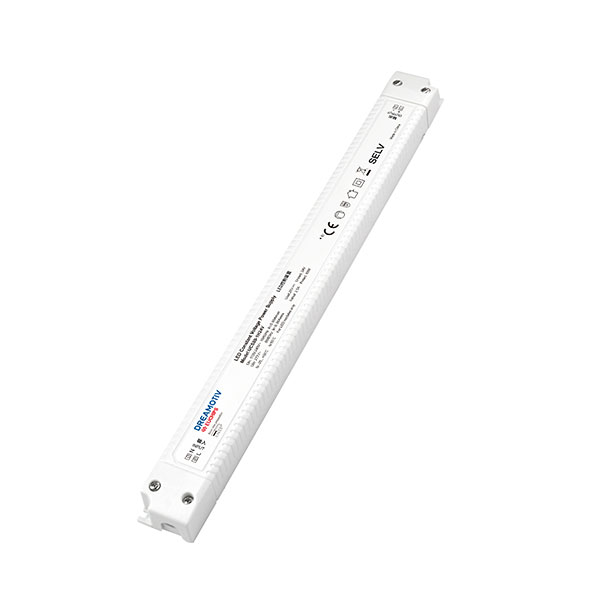

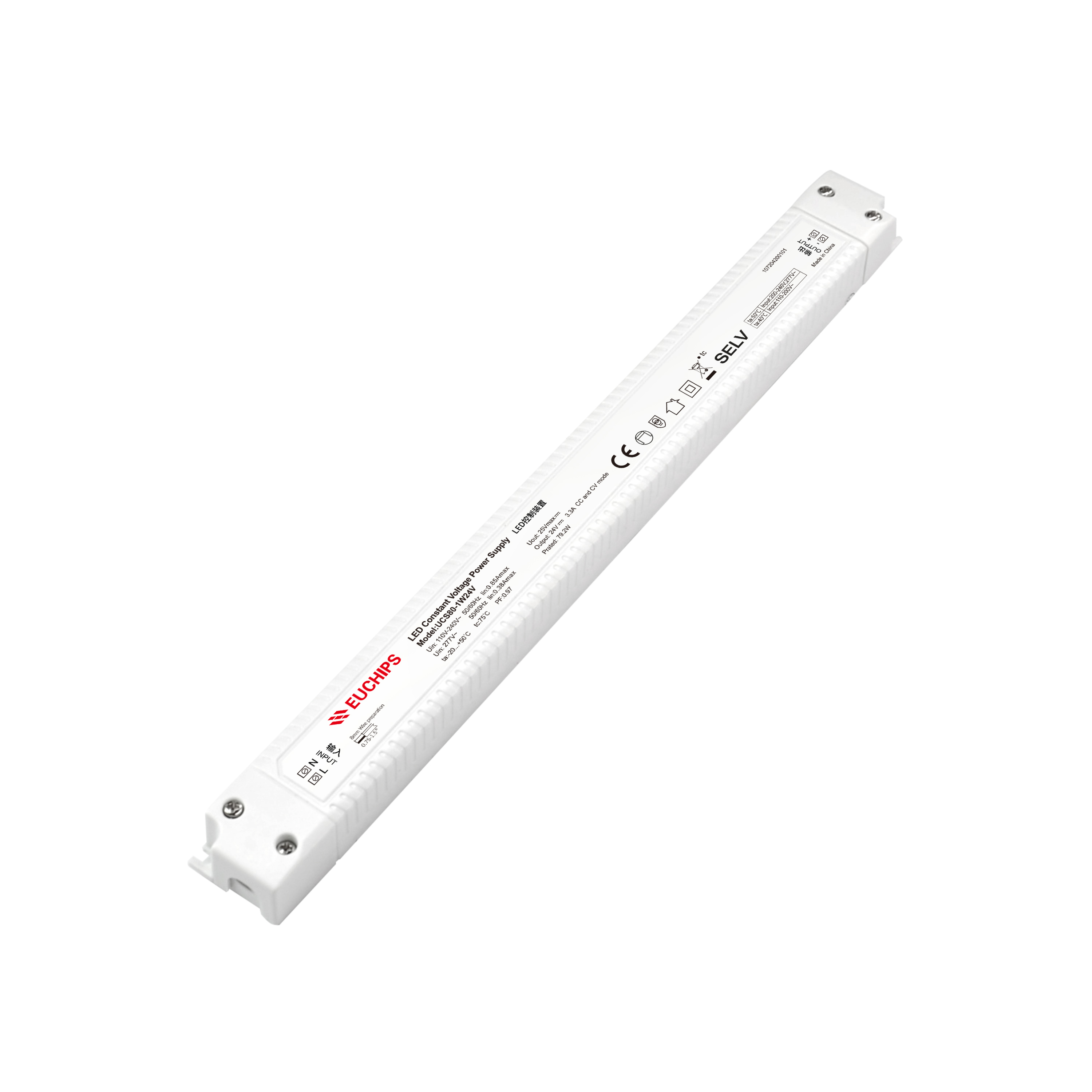

80W 24VDC Non-dimmable CV LED Driver UCS80-1W24V

Short Description:

Item No.: UCS80-1W24V
Output Power: 80W

Product Detail

Product Tags

80W 24VDC Non-dimmable CV LED Driver UCS80-1W24V

Features

· Current + Voltage Output Mode
· Short circuit, overcurrent, overload protection, V0 flame-retardant housing
· Slim-profile linear design for easy installation in confined spaces
· 50,000-hour lifespan with a 5-year warranty
·100% full-load burn-in testing
·IP20 rating for indoor LED strip applications

Technical Parameters

Model	UCS80-1W24V
Input	Rated Voltage Range	110VAC-305VAC
	Rated Voltage	110VAC-277VAC
	Frequency Range(Hz)	50/60Hz
	Input Current	0.85Amax@115VAC, 0.45Amax@230VAC, 0.38Amax@277VAC
	Power Factor	≥0.97@110-277/VAC, Full load
	Efficiency	>90%@110VAC, >92%@277VAC, Full load
	THD(full load)	<10%(@load≥60%/115VC,230VAC; @load≥75%/277VAC)
	Standby power	<0.5W
	Leakage current	<0.25mA / 277VAC
	No load power	<0.5W
	Inrush Current	Cold start 50A(Test twidth=270us at 50% Ipeak)/230VAC; Per NEMA 410
Output	Output Voltage	24VDC
	Constant Current Range	16.8 ~24V
	Output Voltage Tolerance	±3%
	Output Current	3.3A
	Output Power Range	79.2W
	Strobe (depth of fluctuation)	IEC-Pst≤1，CIE SVM≤0.4,Meets the flicker free standard（IEEE Std 1789-2015）
	Line regulation	±0.5% @Full load
	Load regulation	±1.5% @Full load
	Turn on delay Time	500ms, 80ms/115VAC, 230VAC
Protection	Short circuit	Hiccup Protection, Auto-recovery after Fault Clearance
	Overcurrent	Hiccup Protection, Auto-recovery after Fault Clearance
	Overload	Overload protection (≥110% rated power), Auto-recovery after Fault Clearance
	overvoltage	28~34V
Safety & EMC	Surge	L-N:1KV
	Withstand Voltage	I/P-O/P: 3000VAC/1min/5mA
	Safety standard	UL8750, CSA C22.2 No. 250.13-12; ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 independent,
	Safety standard	BS EN/EN62384; EAC TP TC 004,GB19510.1,GB19510.14,IS15885(Part2/Sec13) ,EN60335-1 Certification passed
	EMC	CCC (China) GB/T17743，GB17625.1
	EMC	CE (European Union) EN55015，EN61000-3-2，EN61000-3-3，EN61547
	EMI	RCM (Australia) EN55015，EN61000-3-2，EN61000-3-3，EN61547
	EMI	EN61000-4-2, 3, 4, 5, 6, 8, 11; EN61547
Environment	Working Temp.	-20℃~50℃
	Storage Temp.	-40℃~85℃
	Storage Humidity	20-90%RH (No condensation)
Others	RoHS	Comply with 2011/65/EU
	tc	85℃
	material	Metal
	IP Rating	IP20
	Lifetime	50,000h@tc:75℃
	Warranty Condition	5years
	Switch Cycle	25,000times
	Body size	3123018mm (LWH)
	Packing(weight)	Net weight: 110 g±5%/PCS; 80 PCS/Carton; 9.3 kg±5%/Carton; Carton Size: 456342162mm(LWH)
	Noise	In a quiet environment，No noise outside 30-50cm
Remark	All parameters were measured at an input voltage of 230VAC/50Hz and an ambient temperature of 25 ℃ without any special instructions.
