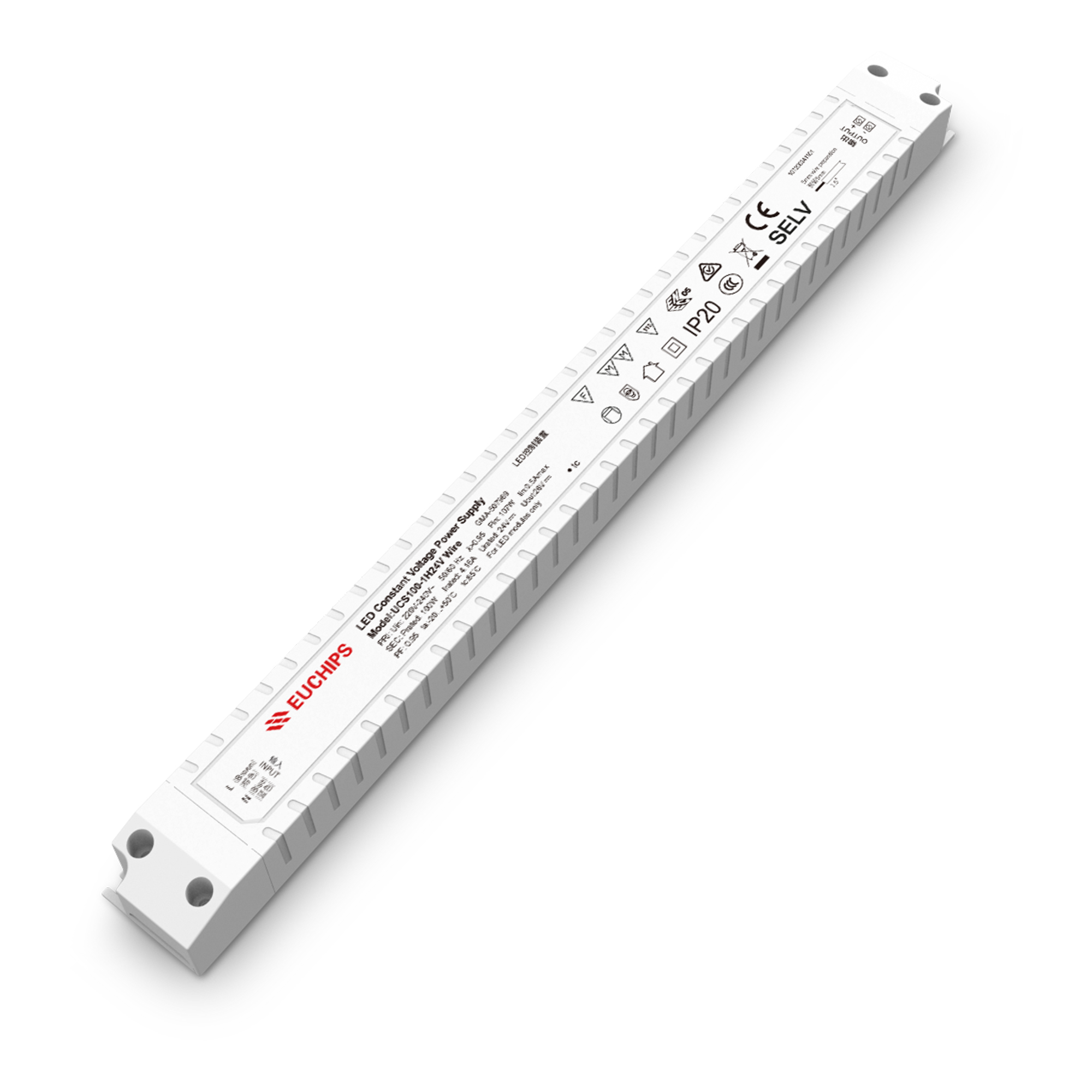

100W 24VDC Non-dimmable CV LED Driver UCS100-1H24V

Product Detail

100W 24VDC Non-dimmable Constant Voltage LED Driver UCS100-1H24V

Features

1. A channel constant voltage output Max

2. Applicable to indoor LED lights

3. Small size, high efficiency, high reliability and long life time

4. -25℃~+50℃, working temp

5. Protections: overload, overvoltage, short circuit self-recovery protection

6. Compliance with CE and ROHS

7. 100% Full load aging test

8. The warranty period is 5 years

Technical Parameter

Model	UCS100-1H24V
Input	Efficiency	≥92%@230VAC, Full load
	Voltage	220VAC-240VAC
	Frequency	50~60Hz
	Power Factor	≥0.95@230VAC, Full load
	Current	0.6Amax@220VAC
	THD	<15%@230VAC, Full load
	Inrush Current	Cold start 40A@230VAC 280us
	No load power	≤0.5W
	Turn on delay Time	≤ 0.5 s, at230Vac (When the light begins to shine)
Output	Current/Voltage/Power	4.16A/24VDC/100W
	Channel	1
	Current Accuracy	±5%
	Ripple Voitage	≤3%
	No load output voltage	26VDC max
Protection	Load protection	Reduce voltage burp protection, troubleshoot normal output
	Short circuit protection	Short circuit No output, troubleshooting output normal
	Overcurrent protection	Reduce voltage burp protection, troubleshoot normal output
Safety & EMC	Surge	L-N 1000VAC
	Withstand Voltage	I/P-O/P:3000Vac/1min/<5mA
	Safety standards	IEC/EN62384, IEC/EN61347-1, IEC/EN61347-2-13, GB19510.1, GB19510.14
	EMC Eission	EN61000-4-2, 3, 4, 5, 6, 8, 11; EN55015, EN61000-3-2; GB17626.3, 4, 5, 6, 8, 11; GB17743 GB17625.1, 2
	Insulation Resisance	5MΩ
Others	Working Temp.	-20°C~50°C
	Storage Temp.; Humidity	-40°C~85°C, 20-90%RH
	Tc	85°C
	Material	PC
	IP Rating	IP20
	Lifetime	50,000h@ta:50°C
	Warranty Condition	5 year
	Switch Cycle	>50,000 times
	Packing Size	Net weight: 170g±5%/PCS; 50PCS/Carton; 9kg±5%/Carton; Carton Size: 435346100mm(LWH)
	Dimension	3123018mm(LWH)
