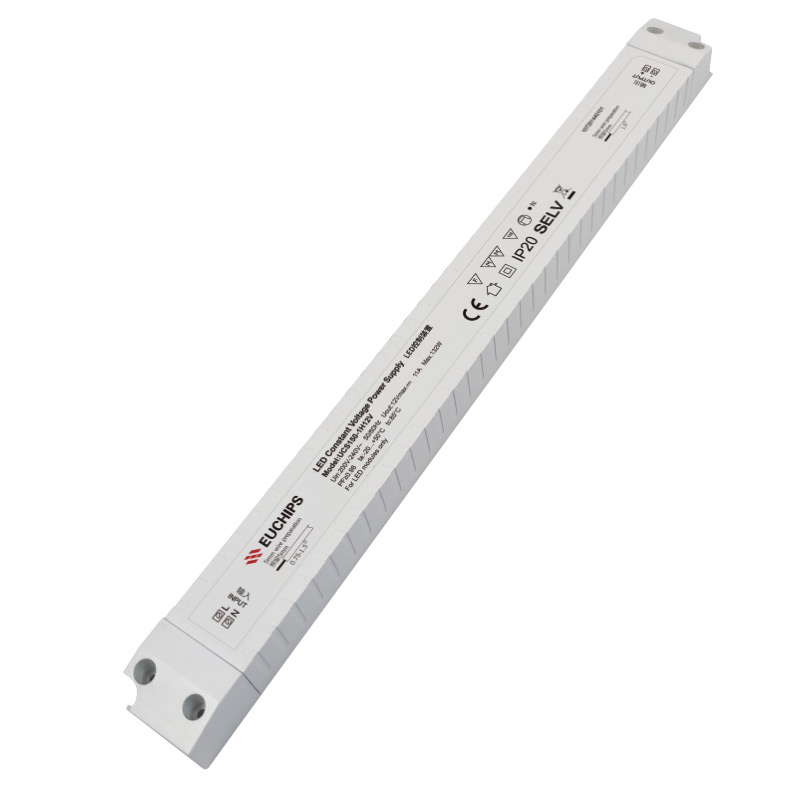

150W 12VDC Non-dimmable CV LED Driver UCS150-1H12V
150W 12VDC Non-dimmable Constant Voltage LED Driver UCS150-1H12V
Features
1. A channel constant voltage output Max
2. Applicable to indoor LED lights
3. Small size, high efficiency, high reliability and long life time
4. -25℃~+40℃, working temp
5. Protections: overload, overvoltage, short circuit protection
6. Compliance with CE and ROHS
7. 100% Full load aging test
8. The warranty period is 5 years
Technical Parameter
| Model | UCS150-1H12V | |
| Input | Efficiency | >90%@230VAC, full load |
| Voltage | 220VAC-240VAC | |
| Frequency | 50~60Hz | |
| Power Factor | ≥0.98@230VAC, full load | |
| Current | 0.75A max@230VAC | |
| THD | <10%@230VAC, full load | |
| Inrush Current | Cold start, 60A @230VAC | |
| Standby power | <1W | |
| Output | Current/Voltage/Power | 12.5A/12VDC/150W |
| Channel | 1 | |
| Voltage Tolerance | ±3% | |
| No load output voltage | 12V | |
| Turn on delay Time | <0.5s, at230Vac (When the light begins to shine) | |
| Protections | Short Circuit | After fault removed Close output ,the output current recovers automatically |
| Over Voltage | Hiccup, remove fault and recover | |
| Over Load | When the output voltage is exceeded, the output current decreases and, recovers automatically | |
| Safety & EMC |
Surge | L-N:2.5KV |
| Withstand Voltage | I/P-O/P: 3000VAC/1min/5mA | |
| Safety standards | EN61347, GB19510 | |
| EMC Eission | EN50515, EN61000-3-2 | |
| EMC Immunity | EN61000-4-2, 3, 4, 5, 6, 8, 11; EN61547 | |
| Others | Working temp. | -20℃~+50℃ |
| Storage Temp.; Humidity | -40℃~85℃, 20-90%RH | |
| Tc | 85℃ | |
| Material | PC | |
| IP Rating | IP20 | |
| Lifetime | 50,000h@ta:40℃ | |
| Warranty Condition | 5 years | |
| Switch Cycle | >25,000 times | |
| Packing Size | Net weight: –g±5%/PCS; –PCS/Carton; 9kg±5%/Carton; Carton Size: –mm(L*W*H) | |
| Dimension | 323*30.5*22mm(L*W*H) | |
