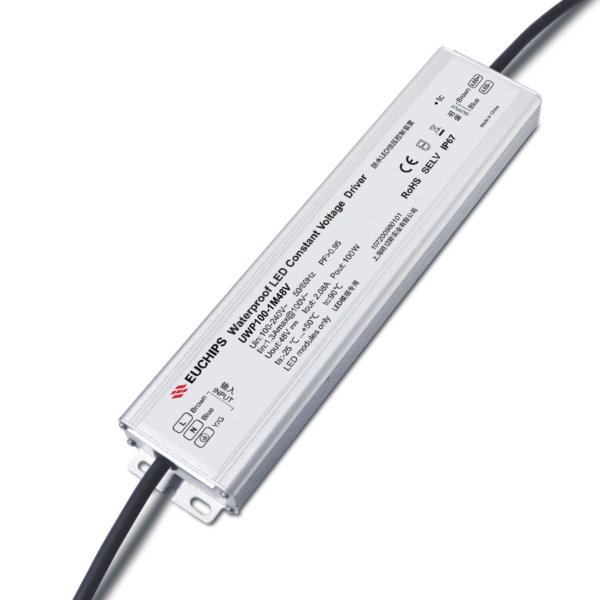

100W 48VDC Non-dimmable Waterproof Ultra-thin CV LED Driver UWP100-1M48V
100W 48VDC Non-Dimmable CV LED Driver UWP100-1M48V
Features
·Wide input voltage with active PFC,full loading output
·Ultra-thin design,save install space
·Adapt to the harsh working environment
·Isolated design, safe and reliable
·Protections: overload, short circuit, lightning protection etc.
·Conformed with CE/CB/CCC/SELV certification.
·The typical efficiency up to 87%
·Protect level IP67
·Warranty 5 years
Technical Parameters
| Model | UWP100-1M48V | |
| Input | Efficiency | 87%@230VAC, Full load |
| Voltage | 100VAC-240VAC | |
| Frequency | 50~60Hz | |
| Power Factor | >0.95@230VAC, Full load | |
| Current | 1.3Amax@240VAC, Full load | |
| Inrush Current | Cold start <50A @230VAC(full load) | |
| Output | Current/Voltage/Power | 2.08A/48VDC/100W |
| Voltage Tolerance | ±2% | |
| Ripple and noise(max) | 240mVp-p | |
| Channel | 1 | |
| Protection | Short Circuit | Auto recovery when failure is removed. |
| Over Voltage | <62.4VDC Shut down the output, After restart recovers automatically. | |
| Over Load | <2.7A auto recovery when failure is removed. | |
| Safety&EMC | Lightning Surge | L-N:2kV,L,N-FG:4kV |
| Withstand Voltage | I/P-O/P:3000VAC/5mA I/P-FG:1500VAC/5mA O/P-FG:500VAC/5mA | |
| Safety Standards | IEC/EN61347-1,IEC/EN61347-2-13,GB19510.1,GB19510.14 | |
| EMC Eission | EN50515,EN61000-3-2 Class C,IEC61000-3-3 | |
| EMC Immunity | EN61000-4-2,3,4,5,6,8,11 EN61547,GB17625.1 | |
|
Others |
Working Temp. | -25℃~+60℃ |
| Storage Temp.; Humidity | -40℃~85℃ 20-90%RH | |
| Tc | 90℃ | |
| Material | Metal | |
| IP Rating | IP67 | |
| Lifetime | 50,000h@tc:90℃ | |
| Warranty Condition | 5 years | |
| Switch Cycle | >100,000 times | |
| Packing Size | Net weight: 820g±5%/PCS; 20PCS/Carton; 17kg±5%/Carton; Carton Size: 325*315*195mm (L*W*H) | |
| Dimension | 270*61*25mm(L*W*H) | |
