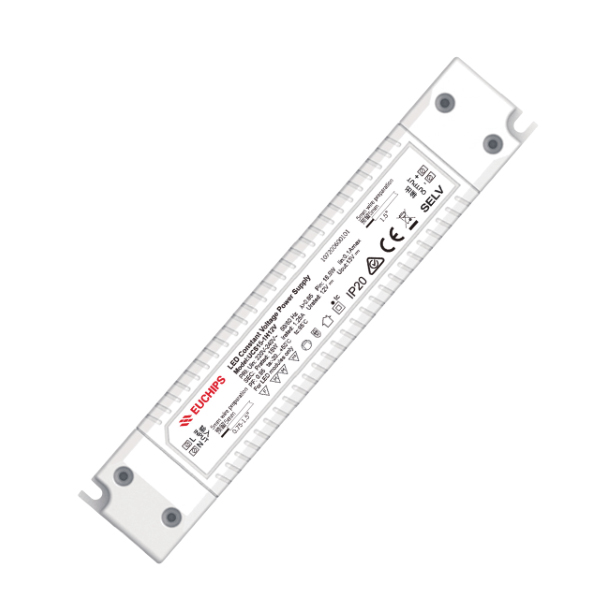

15W 12VDC Non-Dimmable CV LED Driver UCS15-1H12V
15W 12VDC Non-Dimmable CV LED Driver UCS15-1H12V
Features
· A channel constant voltage output
· Applicable to indoor LED lights
· Small size, high efficiency, high reliability and long life time
· -25°C~+50°C, working temp
· Protections: overload, overvoltage, short circuit self-recovery protection
· Compliance with CE and ROHS
· 100% Full load aging test
· The warranty period is 5 Years】
Technical Parameters
| Model | UCS15-1H12V | |
| Input | Efficiency | 83%@220VAC, Full load |
| Voltage | 220VAC-240VAC | |
| Frequency | 50~60Hz | |
| Power Factor | >0.92 | |
| Current | 0.2Amax@220VAC | |
| THD | <15% (at 220V, 50Hz, full load) | |
| Inrush Current | Cold start <60A @200VAC(full load) | |
| Output | Current/Voltage/Power | 1.25A/12VDC/15W |
| Channel | 1 | |
| Voltage Tolerance | ±5% | |
| Protection | Short Circuit | Hiccup, remove fault and recover |
| Over Voltage | Hiccup, remove fault and recover | |
| Over Current | Hiccup, remove fault and recover | |
|
Others |
Working Temp. | -20°C~+50°C |
| Storage Temp.; Humidity | -40°C~85°C, 20-90%RH | |
| Tc | 90°C | |
| Material | PC | |
| IP Rating | IP20 | |
| Lifetime | 50,000h@ta:40°C | |
| Warranty Condition | 5 years | |
| Switch Cycle | >25,000 times | |
| Packing Size | Net weight: 70g±5%/PCS; 100PCS/Carton; 7.5kg±5%/Carton; Carton Size: 365*228*199mm(L*W*H) | |
| Dimension | 160*30*17mm(L*W*H) | |
