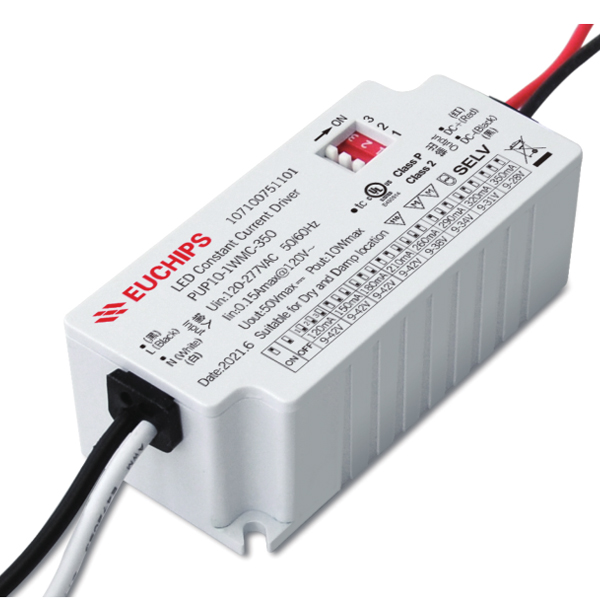

10W 120~350mA Non-dimmable CC Driver PUP10-1WMC-350
10W 120~350mA Non-dimmable CC Driver PUP10-1WMC-350
PUP10-1WMC-350 is AC/DC constant current mode output LED driver featuring the multiple levels selectable by DIP switch.
Features
·Input voltage of 120VAC ~ 277VAC
·Protections: Short circuit, Over load，Over voltage
·Suitable for indoor LED lighting application
Technical Parameters
| Model | PUP10-1WMC-350 | |
|
Output |
Current/Voltage/Power | 120mA/9-42V/5.04W 180mA/9-42V/7.56W 260mA/9-38V/9.88W 320mA/9-31V/9.92W
150mA/9-42V/6.3W 210mA/9-42V/8.82W 290mA/9-34V/9.86W 350mA/9-28V/9.8W |
| Channel | 1 | |
| No load output voltage | 58V Max | |
| Current Accuracy | ±5% | |
| LF current ripple(<120Hz) | <3% | |
|
Input |
Voltage | 120VAC-277VAC |
| Frequency | 50/60Hz
Full load |
|
| Efficiency | ≥85%@120VAC,
Full load |
|
| PF | ≥0.99@120VAC,
Full load |
|
| THD(full load) | <10%@120VAC, | |
| Current | 0.6Amax@120VAC | |
| Inrush Current | Cold start,30A@120VAC | |
| Standby Power | <1W | |
|
Protection |
Over Voltage | Hiccup, recovers after fault condition is removed |
| Over load | Hiccup, recovers after fault condition is removed | |
| Short circuit | Close output, recovers automatically after fault removed | |
|
Safety& EMC |
Surge | L-N:1KV |
| Withstand Voltage | I/P-O/P: 3000VAC/1min/5mA; I/P-Gnd: 1500VAC/1min/5mA; O/P-Gnd: 500VAC/1min/5m | |
| Safety standards | UL8750/UL1310/CSA25013,CSA class P | |
| EMC Eission | EN50515,EN61000-3-2 Class C,IEC61000-3-3 | |
| EMC Immunity | FCC class B(120V)/class A(277V) | |
|
Others |
Dimension | 75*35*26.5mm(L*W*H) |
| G.W | 120g | |
| IP rating | IP20 | |
| Working temp. | -20℃~50℃ | |
| tc | 90℃ | |
| Relative humidity | 20~90% RH | |
| Lifetime | 50,000h@tc:85℃ | |
| Material | PC | |
| Switch cycle | >100,000 times | |
Remark: Use only within an enclosure
