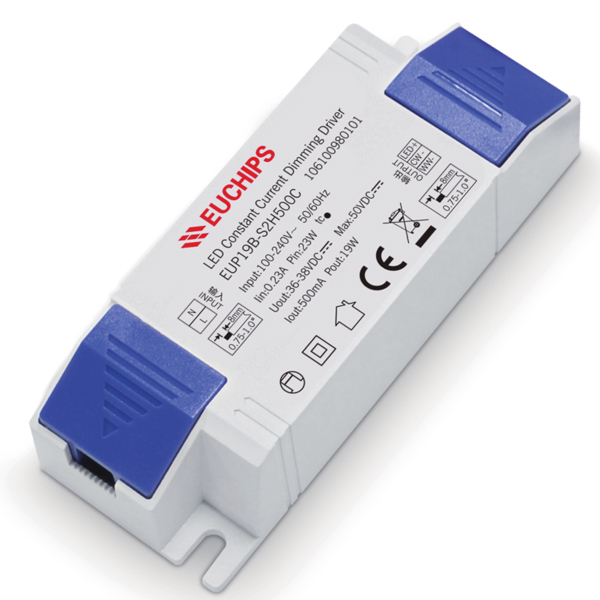

19W 500mA 2.4G CC Driver EUP19B-S2H500C
19W 500mA 2.4G CC Driver EUP19B-S2H500C
Features
Intelligent Tunable White LED Driver
Wireless control, no wiring and installation of other controllers, low cost.
For Tunable White as well as for 2-channel use
Constant current output.
Three years warranty.
Compatible with remote control, panel, mobile phone and other control methods.
This product can be divided into two schemes: CE certification and ordinary.
Application
Residential lighting, office lighting, commercial lighting, light band
Function
Use remote control or panel control to adjust the color temperature and brightness of the light, and realize diversified lighting intelligent scene.
It can adjust the light color temperature and brightness through mobile app Internet platform to realize diversified intelligent scenes.
The scene mode can be controlled by intelligent audio and other artificial intelligence devices.
It can be controlled by the central system through the network.
The output current of the power supply can be set through the remote control, in the range of 50% – 100%.
You can set the power supply monotonous light (1 output) or dimming temperature (2 output) through the remote control.
Short circuit protection
No load protection
Surge protection voltage 2KV
Controller Parameters
| Model | EUP19B-S2H500C |
| Rated Input Voltage | 100-240VAC |
| Maximum Input Current | 320mA |
| Power Frequency | 100-240VAC |
| Output Voltage | 36-38V/±3V |
| Output Current Range | 500mA |
| Dimming Range | 15%-100% |
| Efficiency | ≥82% |
| Power Factor Full Load | ≤0.6 |
| Life | 20000 times |
| Ambient Temperature Ta | -10°C…+55°C |
| Storage Temperature Ts | -20°C…+80°C |
| Size | 96*36*25mm |
| Storage Temperature | -20°C…+85°C |
RF-2.4G Parameters
| Control Distance | 30 m barrier free |
| Agreement | RF-2.4G |
| Frequency Range | 2402Mhz… .2482Mhz |
| Modulation Mode | GFSK |
| Antenna Model | Integrated antenna |
| Number Of Antennas | one |
| Antenna Gain | 0dBi |
The following are the general product details of EUP19B-S2H500C:
| Input Voltage | Max Input Current | Input Power | Output Voltage | Max Output Current | Output Power | Max Output Voltage |
| 100-240V~ |
185mA |
18.5W | 36-38VDC |
400mA |
15.2W |
50VDC |
| 100-240V~ |
208mA |
20.8W | 36-38VDC |
450mA |
17.1W |
50VDC |
| 100-240V~ |
230mA |
23W | 36-38VDC |
500mA |
19W |
50VDC |
| 100-240V~ |
255mA |
25.5W | 36-38VDC |
550mA |
20.9W |
50VDC |
| 100-240V~ |
278mA |
27.8W | 36-38VDC |
600mA |
22.8W |
50VDC |
| 100-240V~ |
300mA |
30W | 36-38VDC |
650mA |
24.7W |
50VDC |
Packaging parameters
| Net weight | 70g/PCS |
| Packing quantity | 100pcs/carton |
| Container capacity | 7.1kg/carton |
| Outer box size | 35×30 ×22cm |
The data is for reference only, and the specific data is subject to the customer’s packaging requirements.
