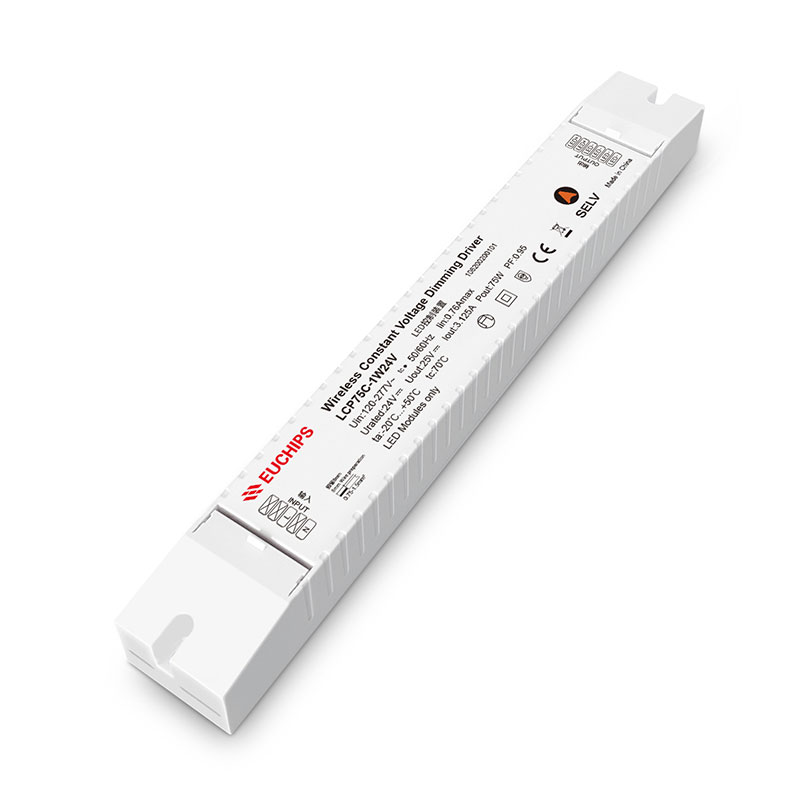

75W 24VDC Casambi CV Dimming Driver LCP75C-1W24V

Short Description:

Item No.: LCP75C-1W24V
Output Power: 75W

Product Detail

Product Tags

75W 24VDC Casambi CV Dimming Driver LCP75C-1W24V

LCP75C-1W24V is a constant voltage mode output LED driver, Using Casambi wireless control and dimming, the curve is smooth and flicker free.

Features

·Strong scalability, suitable for small home systems to large commercial or industrial lighting systems

·Flexible wireless control allows for remote management and real-time adjustment of lighting settings

·Good compatibility, able to integrate with various third-party devices and protocols

·User friendliness, easy control and configuration through smart device applications

·Overload, short circuit protection

·50,000-hour lifespan with a 5-year warranty

·IP20 protection rating, suitable for indoor Class I, II, and III luminaires

Technical Parameters

Model	LCP75C-1W24V
Input	Efficiency	≥90%@120VAC , ≥92%@277VAC, full load
	Voltage	120VAC-277VAC
	Frequency Range(Hz)	50/60Hz
	AC Current(max)	0.76Amax @120VAC , 0.37Amax@277VAC
	PF	≥0.95@120VAC full load , ≥0.95@277VAC,full load
	THD	<10%@120VAC full load , <10%@277VAC, full load
	Inrush Current(max)	Cold start, 38A@120VAC 350us 52A@277VAC 350us
	Standby power	<1W@120VAC
	No load power	<1.5W@120VAC
	Turn on delay Time	<0.75s, @120Vac (When the light begins to shine)
Output	Current	3.125A
	Voltage	24VDC
	Voltage Range	24VDC ±5%
	Power	75W
	Channel	1
	PWM Frequency	20K Hz
Function	Dimming Type	Bluetooth 4.0 or 5.0 Low Energy(BLE)
	Dimming Range	1%-100%
	Dimming curve	Logarithm
	Flicker	Flicker free
Protection	Short Circuit	Close the output and recover after troubleshooting
	Over Load	Reduce current burp protection, self-recovery after troubleshooting
	Over Current	Reduce current burp protection, self-recovery after troubleshooting
Safety&EMC	Surge	L-N 2000VAC
	Withstand Voltage	I/P-O/P: 3000VAC/1min/5mA
	Safety standards	EN61347, GB19510
	EMC Eission	EN55015, EN61000-3-2
	EMC Immunity	EN61000-4-2, 3, 4, 5, 6, 8, 11; EN61547
	Insulation Resisance	5MΩ
Others	Working Temp.	-20℃~+50℃ (-4°F-122°F)
	Storage Temp., Humidity	-40℃~90℃, 20-90%RH (-40°F-194°F)
	tc	70℃ (158°F)
	Material	PC
	IP Rating	IP20
	Lifetime	50,000h@tc:70℃ (158°F)
	Warranty Condition	5 years
	Switch Cycle	25,000 times
	Packing(weight)	Net weight: 340g (0.75 lb)±5%/PCS; 50PCS/Carton;17.5kg(38.58 lb)±5%/Carton; Carton Size: 434302174mm(1711.886.85 Inch)(LWH)
	Dimension	2954032mm(11.611.571.26 Inch)(LWH)
