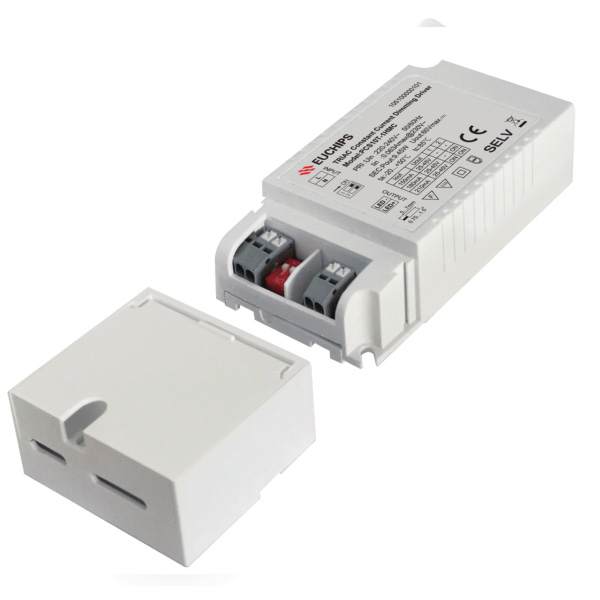

10W 150/180/210mA*1ch Phase-cut CC Driver PCS10T-1HMC
10W 150/180/210mA CC Driver PCS10T-1HMC
PCS10T-1HMC is a constant voltage mode output LED driver. he output current can be easily set
via DIP switch. The driver supports leading edge (Triac) and trailing edge (ELV) dimmer, and can
be compatible with the systems of various brands to achieve a smooth dimming effect.
Technical Parameter
1. Single channel output, output current level selectable by DIP S.W.
2. Support Leading edge (Triac) and Trailing edge (ELV) dimmer
3. Dimming range from 40VAC to 240VAC
4. Class 2 power supply. Full protective plastic housing
5. Dimming effect smooth, no flicker
6. Protections: Short circuit, over load, over temperature
7. Suitable for indoor LED lighting application, such as down light, spotlights, panel light, and so on
Technical Parameter
| Model | PCS10T-1HMC | |||
| Output | Current | 150mA | 180mA | 210mA |
| Voltage | 25-45VDC | 25-45VDC | 25-45VDC | |
| Power | 6.75W | 8.1W | 9.45W | |
| Current Accuracy | ±5% | |||
| No load output voltage | 60VDC | |||
| Output LF current ripple | ＜8% | |||
| Input | Voltage | 220VAC-240VAC | ||
| Frequency | 50/60Hz | |||
| Dimming Voltage Range | 40-240VAC | |||
| Efficiency | 76%@230VAC, Full Load | |||
| PF | ＞0.9@230VAC, Full Load | |||
| THD | ＜25%@230VAC, Full Load | |||
| Current | 0.063Amax@230VAC, Full Load | |||
| Inrush current | Cold start,15A(twidth=50us measured at 50% Ipeak)@230VAC | |||
| Function | Dimming Mode | Triac | ELV | |
| Protection | Short circuit | Hiccup mode, recovers automatically after fault condition is removed | ||
| Over Load | Hiccup mode, recovers automatically after fault condition is removed | |||
| Others | Dimension | 118*50*25mm(L*W*H)/93*50*25mm(L*W*H) | ||
| G.W. | 100g/90g | |||
| Ip Rating | IP20 | |||
| Working Temp | -20℃ ~ 50℃ | |||
| Tc | 85℃ | |||
| Relative Humidity | 20~90% RH | |||
| Lifetime | 50000h@tc max | |||
| Switch Cycle | >100,000 times | |||
