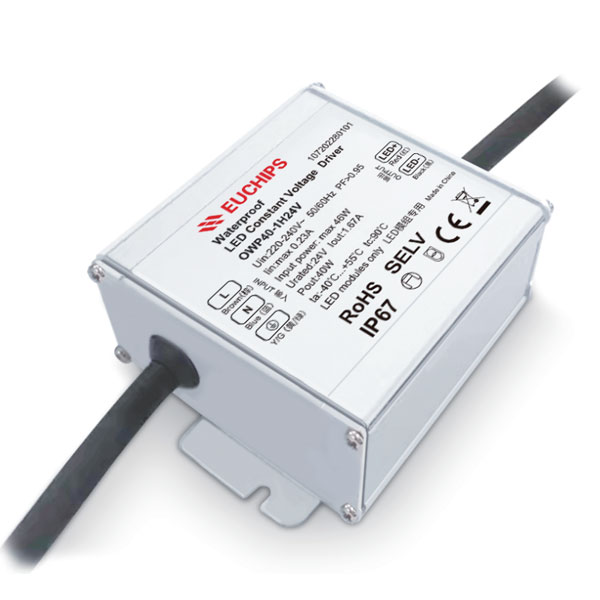

40W 24VDC Non-dimmable Waterproof CV Driver OWP40-1H24V
40W 24VDC Waterproof Non-dimming CV Driver OWP40-1H24V
Features
1. Single channel output with 24V CV direct current
2. Wide voltage input range from 220VAC to 240VAC
3. With built-in active PFC function
4. Ultra-thin design, Waterproof level IP67, High effciency up to 87%
5. Dimming effect smooth, no flicker
6. Protections: Short circuit, over load, lightning protection
7. suitable for LED CV lighting, such as LED module, LED strip light, LED tube, and so on
Technical Parameters
| Model | OWP40-1H24V | |
| Input | Efficiency | ≥87%@230VAC, Full load |
| Voltage | 220VAC-240VAC | |
| Frequency | 50~60Hz | |
| Power Factor | >0.97@230VAC, Full load | |
| THD | ≦10%230VAC, Full load | |
| Standby power | <0.3W | |
| Current | 0.23Amax@220VAC | |
| Inrush Current | Cold start,16.4A@230VAC 16.8us | |
| Output | Voltage | 24VDC |
| Current | 1.67A | |
| Power | 40W | |
| Voltage Tolerance | ±5% | |
| Over voltage protection | 24VDC | |
| Channel | 1 | |
| Protection | Short Circuit | Close output, recovers after fault condition is removed |
| Over Voltage | Hiccup recovers after fault condition is removed | |
| Safety&EMC | Surge | L-N 6KV L-PE 10KV N-PE 10KV |
| Withstand Voltage | I/P-O/P:3750VAC/5mA I/P-PG:1554VAC/5mA O/P-PG:1554VAC/5mA | |
| Safety Standards | EN61347, GB19510 | |
| EMC Eission | EN50515, EN61000-3-2 | |
| EMC Immunity | EN61000-4-2, 3, 4, 5, 6, 8, 11; EN61547 | |
| Others | Working Temp. | -40℃~+55℃ |
| Storage Temp.; Humidity | -40℃~85℃, 20-90%RH | |
| Tc | 90℃ | |
| Material | Metal | |
| IP Rating | IP67 | |
| Lifetime | 50,000h@tc:85℃ | |
| Warranty Condition | 5 years | |
| Switch Cycle | >25,000 times | |
| Packing Size | Net weight:–g±5%/PCS; –PCS/Carton; –kg±5%/Carton; Carton Size: –*–*–mm(L*W*H) | |
| Dimension | 83*63*33mm(L*W*H) | |
