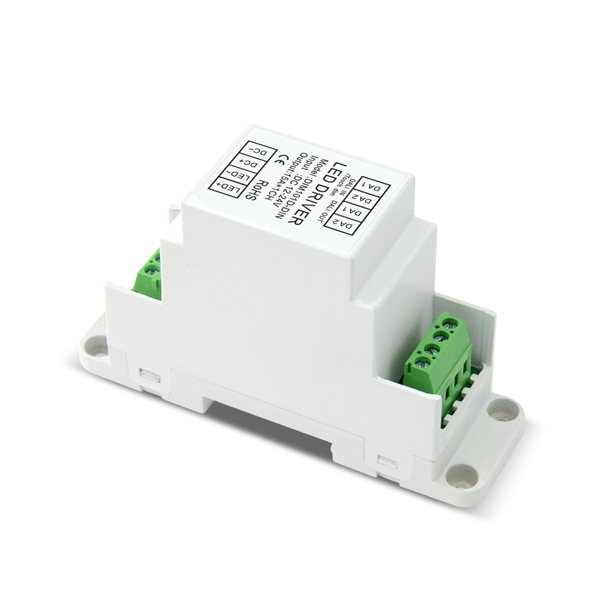

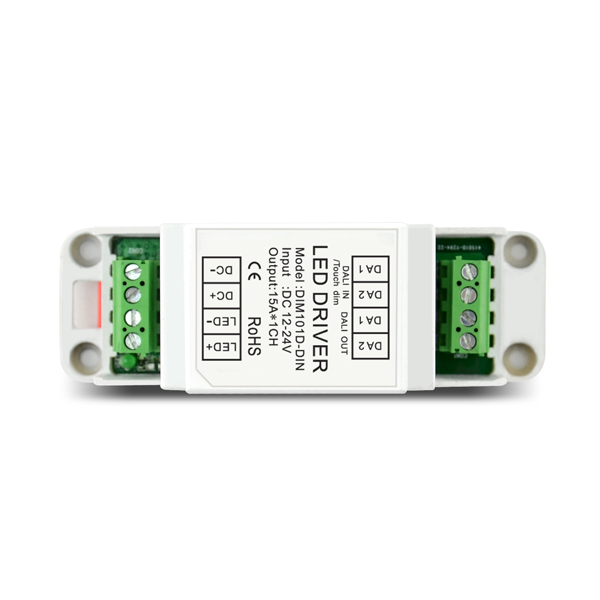

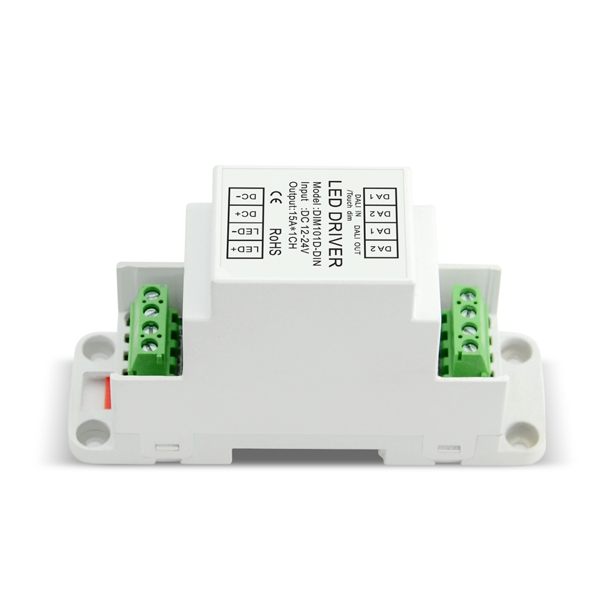

12-24V 10A*1ch TouchDIM CV DALI Decoder DIM101D-DIN

Short Description:

  • Item No.: DIM101D-DIN
  • Input Voltage: 12-24
  • Output Current: 10A*1CH
  • Output Voltage: 12-24
  • Output Power: 120-240
  • Dim Mode: Touch DIM / DALI
  • G.W.: 86
  • Size: 112*35*67

Product Detail

Product Tags

12-24V 10A*1ch TouchDIM CV DALI Decoder DIM101D-DIN


1. Meet DALI Protocol IEC 62386.
2. PWM Output, and the max current of single channel up to 10A.
3. Support Touch DIM function and can be dimmed manually.
4. Support short circuit, over current and over temperature protection.
5. DC power supply.



Product Name DIN 12/24V 10A 1Channel LED Constant Voltage DALI Decoder
Model DIM101D-DIN
Input Voltage 12-24VDC
Input Signal DALI Dimming signal / Touch DIM
Output Channel 1
Output Current 10A (Max)
Output Power 120W(12V)/240W(24V)
Dimming output PWM
Dimming Range 0-100%
Installation Rail or Screw fixing
Mounting Rail TS-35/7.5 or TS-35/15
Product Size 112(L)*35(W)*67(H)mm
Pack Size 354(L)*234(W)*232(H)mm 60Pcs/6.5kg/Carton
G.W 90g
Work Temperature -30 ~ 50
