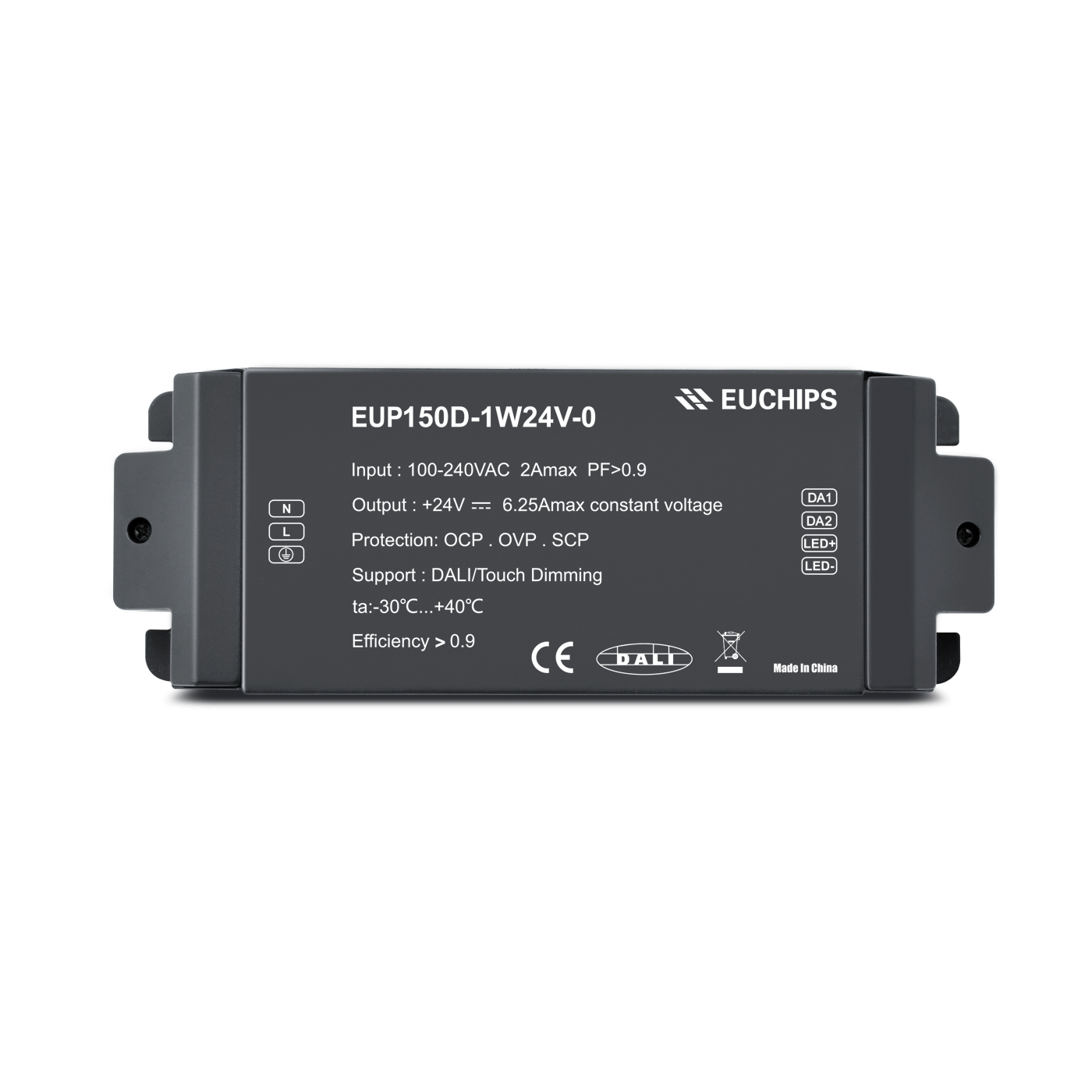

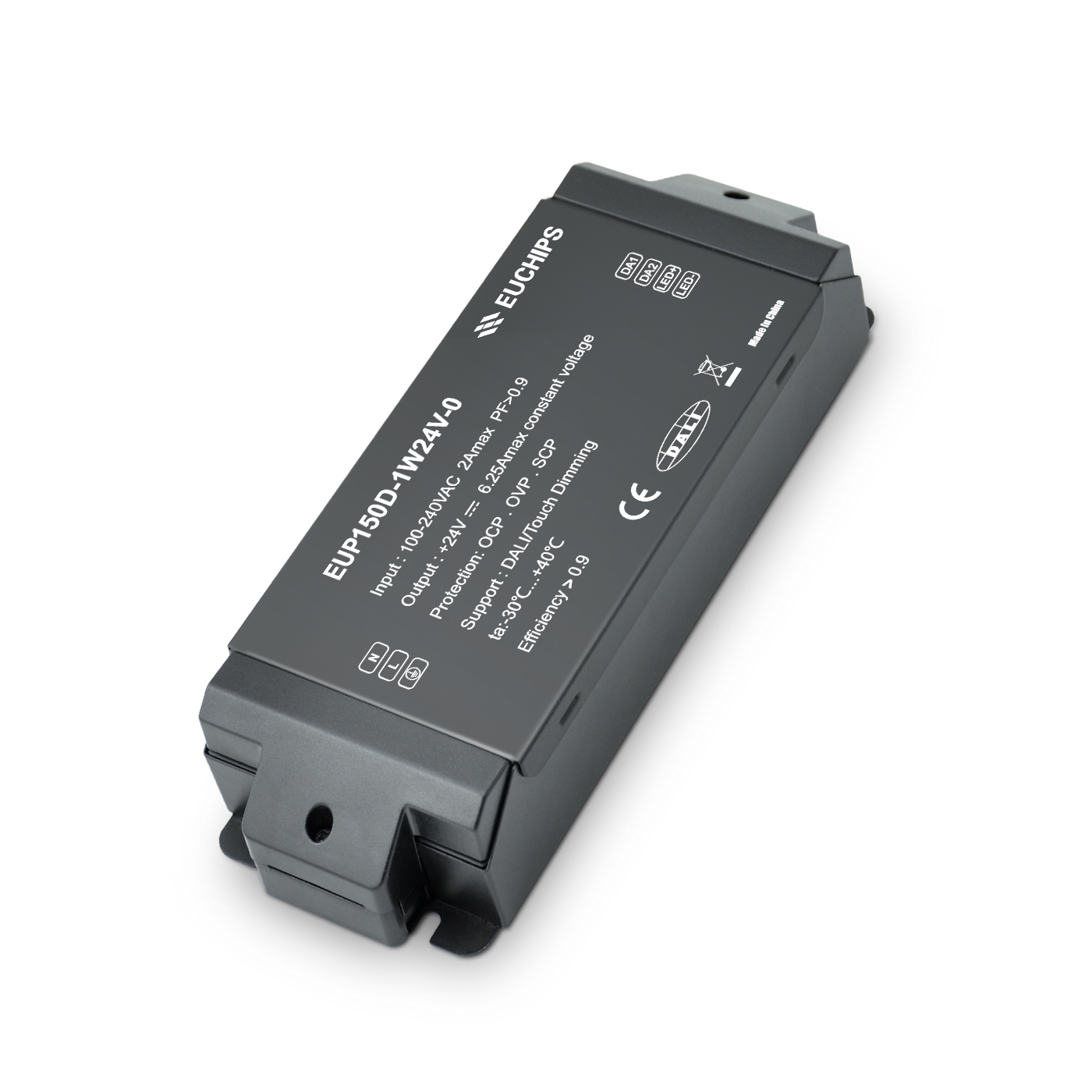

150W 24VDC DALI CV Driver EUP150D-1W24V-0

Short Description:

  • Item No.: EUP150D-1W24V-0
  • Input Voltage: 100-240VAC
  • Output Current: 6.25A*1CH
  • Output Voltage: 24VDC
  • Output Power: 150W
  • Dim Mode: DALI / Touch-dim
  • G.W.: 668g
  • Size: 206*74.8* 40.6mm

Product Detail

Product Tags

150W 24VDC 6.25A*1ch Constant Voltage DALI Driver EUP150D-1W24V-0


1. Signal channel constant voltage, 24VDC output
2. Meet DALI Protocol IEC62386
3. Wide range of input voltage 100VAC ~ 240VAC
4. Support Touch-DIM function
5. High efficiency up to 92%
6. Built-in active PFC function
7. Protections: Short circuit, Over current
8. IP 20 design
9. Suitable for indoor LED lighting application

Technical Parameter


Model EUP150D-1W24V-0
Output DC Voltage DC 24V
Current 6.25A Max
Rated power 150W
Current Accuracy ±3%
R & N (Max) 70mVp-p
Input Voltage Range 100VAC – 240VAC
Frequency Range 47 – 63Hz
Power Factor(Type) PF≧0.95/115VAC at rated power
Efficiency(Type) 92%
AC Current(Type) 2A@230VAC
Leakage Current <0.5mA/230VAC
Inrush current(Type) COLD START 40A at 230V
Protection Short Circuit Constant current limiting, recovers automatically after removed
Over current Constant current limiting, recovers automatically after removed
Function Dimming DALI Dimming / Touch-dim
Others Dimension 206(L) *74.8(W)* 40.6(H)mm
N.W. 668g
Working temperature -20℃ ~ 50℃
