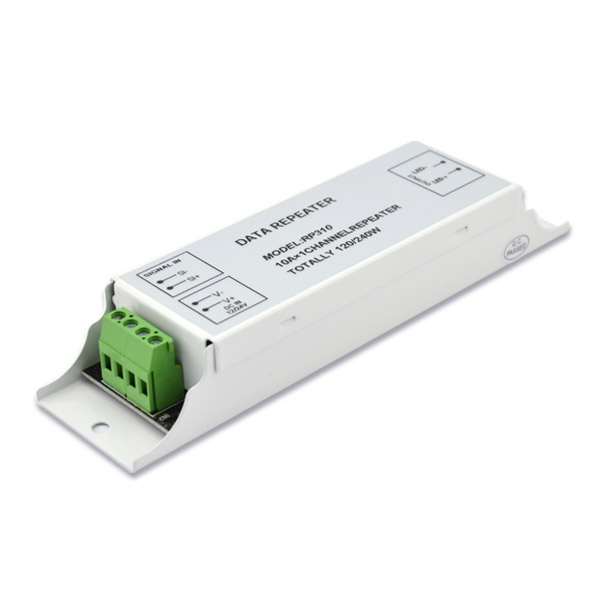

12-24VDC 10A*1ch PWM Single Color Power Amplifier RP310

Short Description:

  • Item No.: RP310
  • Input Voltage: 12-24
  • Output Current: 10A*1CH
  • Output Voltage: 12-24
  • Output Power: 120-240
  • Dim Mode: -
  • G.W.: 260
  • Size: 165*39*26

Product Detail

Product Tags

12-24VDC 10A*1ch PWM LED Single Color Power Amplifier RP310

Feature
1. For power repeat of synchronous changing signal;
2. Single channel control, the max current to 10A;
3. Accepts PWM control;
4. Match with many kinds of LED modules;
5. Theoretically we can connect limitless LED modules by connecting the repeaters in series;

Technical Parameter



Product Name 12-24VDC 10A*1ch PWM Power Amplifier
Item RP310
Power Supply 12-24VDC
I/O Channel 1
Power Out 10A Max. 12V,120W;24V,240W
Size 165(L)*39(W)*26(H)mm
Weight 260g
