12-24VDC 5A*3ch PWM Power Amplifier RP306

Short Description:

  • Item No.: RP306
  • Output Current: 5A*3CH
  • Size: 165*39*26mm

Product Detail

Product Tags

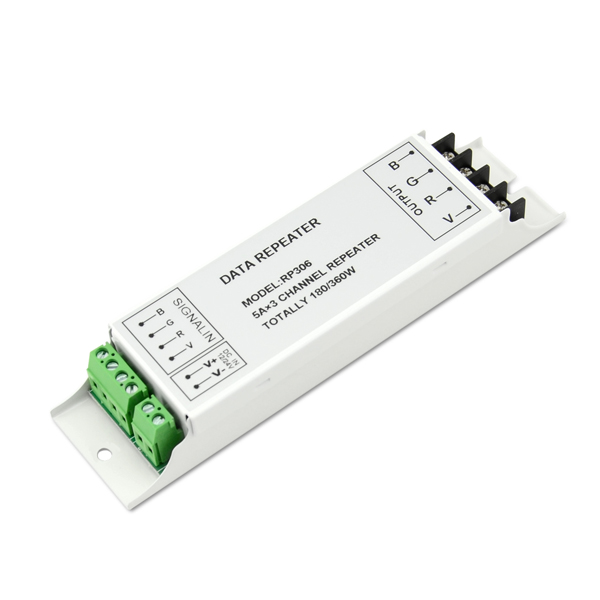

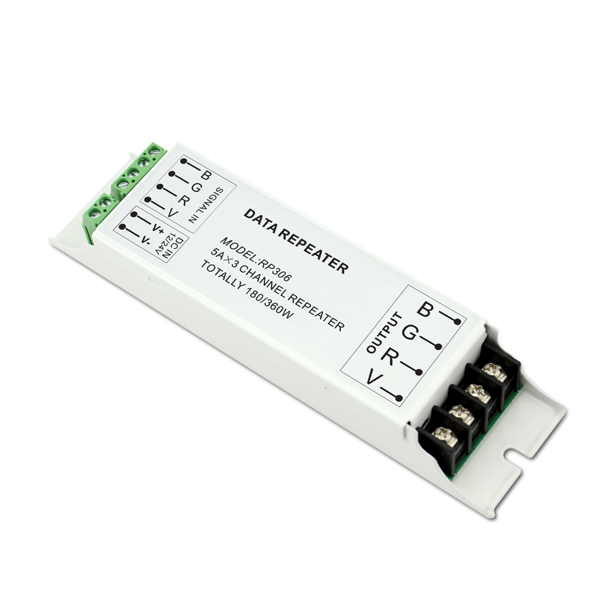

12V 24V 5A 3 Channels PWM LED RGB Power Amplifier RP306

Feature

1. For power repeat of synchronous changing signal;
2. 3 channel RGB control, the max current of each channel up to 5A;
3. Accepts PWM control;
4. Match with many kinds of LED modules;
5. Theoretically we can connect limitless LED modules by connecting the repeaters in series.

Technical Parameter



Product Name 12V 24V 5A 3 Channels PWM LED RGB Power Amplifier
Item RP306
Power Supply 12-24VDC
I/O Channels 3
Power Out 5A(each channel max),12V,180W;24V,360W
Size 165(L)*39(W)*26(H)mm
Weight 142g
