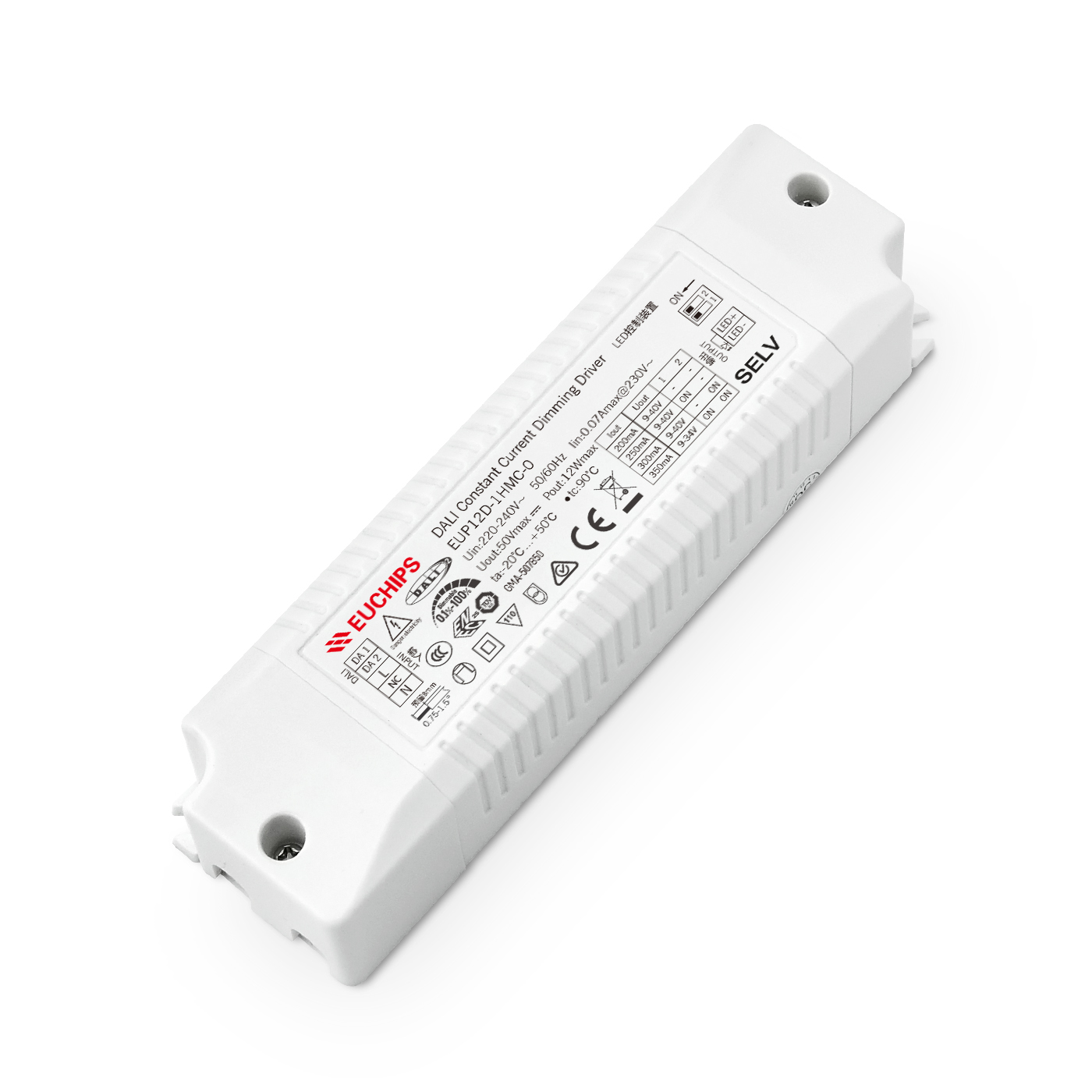

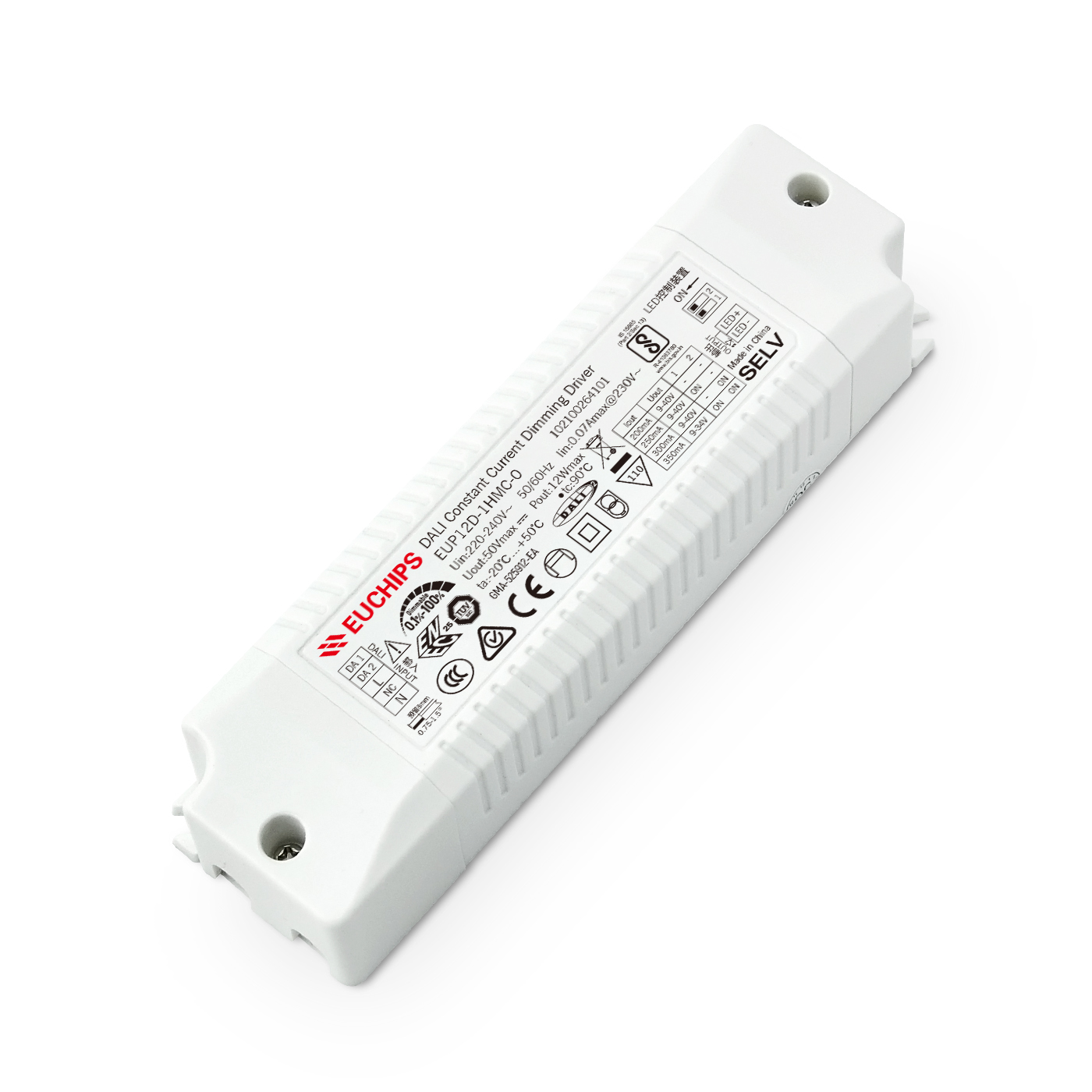

12W 200/250/300/350mA*1ch DALI CC Driver EUP12D-1HMC-0
200/250/300/350mA 12W Constant Current DALI-2 Driver EUP12D-1HMC-0
EUP12D-1HMC-0 is a 12W AC/DC constant current mode output LED driver featuring the multiple levels selectable by DIP switch and complies with DALI standard protocol IEC 62386. EUP12D-1HMC-0 can be connected to DALI main controller or Touch DIM to a chieve a smooth dimming effect.
Features
1. Single channel output, output current level selectable by DIP S.W.
2. Meet DALI Protocol IEC 62386-207 Ed2.0
3. Support Touch-DIM function
4. Built-in active PFC function
5. Dimming effect smooth, no flicker
6. Protections: Short circuit, over load
7. Suitable for indoor LED lighting application, such as down light, spot light, and so on
Technical Parameters
| Model | EUP12D-1HMC-0 | ||
| Input | Efficiency | 80%@230VAC, Full load | |
| Voltage | 220VAC-240VAC | ||
| Frequency | 50/60Hz | ||
| Power Factor | ≥0.95@230VAC,Full load | ||
| THD(full load | <10%@230VAC, Full load | ||
| AC Current(max) | 0.07Amax@230VAC | ||
| Standby power | <0.5W | ||
| Inrush Current(max) | Cold start,18A(twidth=14us measured at 50% Ipeak)@230VAC | ||
| Output | Current(mA)/Voltage (VDC)/ Power(W) |
200mA/9-40VDC/8W 250mA/9-40VDC/10W 300mA/9-40VDC/12W 350mA/9-34VDC/11.9W |
|
| Ripple Current | <3% | ||
| Channel | 1 | ||
| Current Tolerance | ±5% | ||
| No load output voltage | 50V Max | ||
| Function | Dimming Mode | DALI/Touch DIM | |
| Dimming Range | 0.1%-100% Dimming to off | ||
| Protection | Short circuit | Close output，recovers automatically after fault removed | |
| Over Load | When the output voltage is exceeded, the output current decreases and, recovers automatically when the load is reduced. | ||
| Safety&EMC | Surge | L-N:1kV | |
| Withstand Voltage | I/P-O/P: 3000VAC/1min/5mA | ||
| DALI Standard | IEC 62386-101: 2014, IEC 62386-102: 2014; IEC 62386-207 Ed2.0 | ||
| Safety Standards | EN61347, GB19510 | ||
| EMC Eission | EN50515, EN61000-3-2 | ||
| EMC Immunity | EN61000-4-2, 3, 4, 5, 6, 8, 11; EN61547 | ||
| Others | Working Temp. | -20℃~50℃ | |
| Storage Temp.; Humidity | -40℃~85℃, 20-90%RH | ||
| Tc | 90℃ | ||
| Material | PC | ||
| IP Rating | IP20 | ||
| Lifetime | 50,000h@tc:70℃ | ||
| Warranty Condition | 5 years | ||
| Switch Cycle | >100,000 times | ||
| Packing Size | Net weight: 125g±5%/PCS; 50PCS/Carton; 6.65kg±5%/Carton; Carton Size: 319*254*136mm(L*W*H) | ||
| Dimension | 150*43*29mm(L*W*H) | ||
