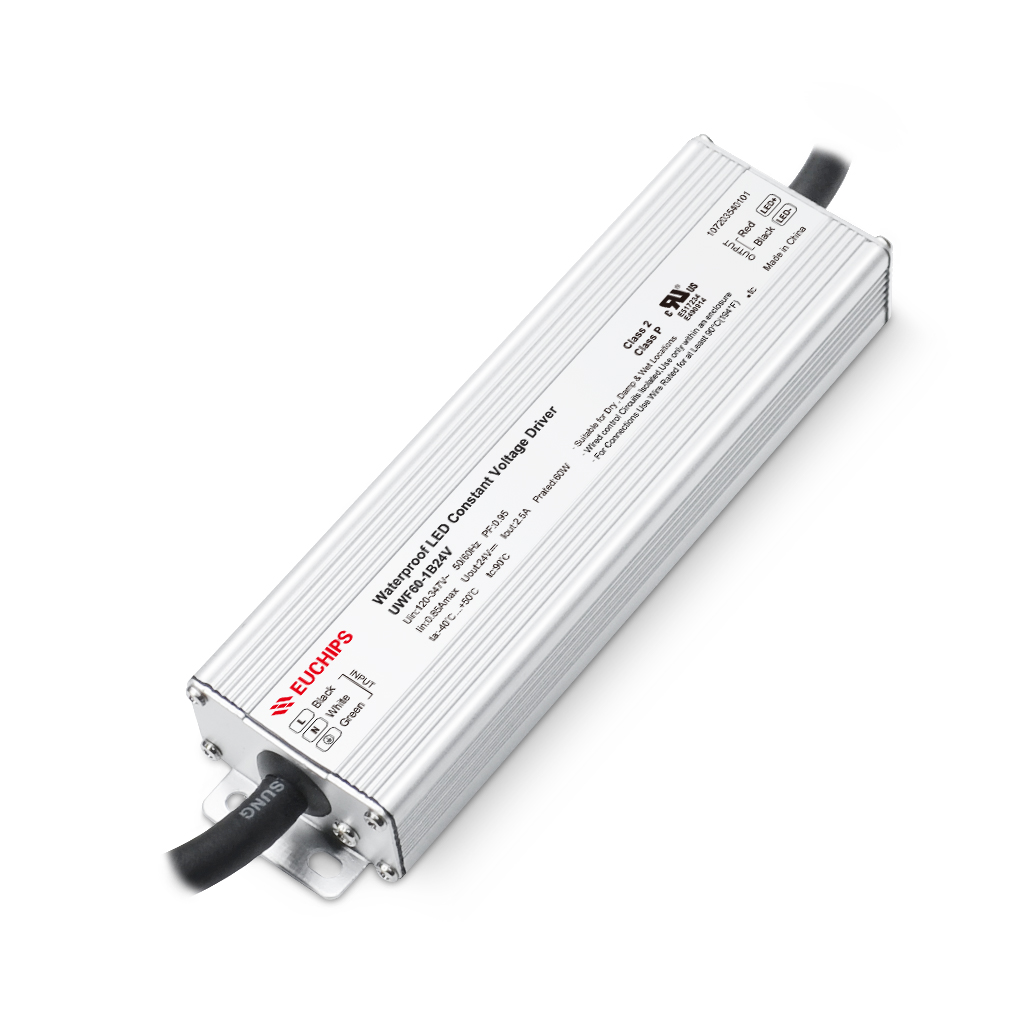

60W 24VDC Non-dimmable Waterproof CV Driver UWF60-1B24V
60W 24VDC Non-dimmable Waterproof CV Driver UWF60-1B24V
Features
· Width voltage input,full power output
· Design of metal shell, improving heat dissipation performance
· Isolated design,safe and reliable
· Protections:Over load,Short circuit,over voltage
· Comply with CE/SELV
· Protection grades is as high as IP67
· 5 years warranty
Technical Parameters
| Model | UWF60-1B24V | |
|
Input |
Efficiency | 87%@120VAC, Full load |
| Voltage | 120VAC-347VAC | |
| Frequency | 50~60Hz | |
| Power Factor | >0.95@120VAC, Full load | |
| No load power | ≤0.5W@120VAC | |
| Current | 0.85Amax@120VAC | |
| Inrush Current | Cold start 70A@347VAC 350us | |
| THD | <10%@120VAC, Full load | |
|
Output |
Current/Voltage/Power | 2.5A/24VDC/60W |
| Channel | 1 | |
| Current Accuracy | ±5% | |
| No load output voltage | 25.2V max | |
| Turn on delay Time | <3s, @120VAC, full load (When the light begins to shine) | |
| Protection | Short circuit | If no output is displayed, the troubleshooting output is normal |
| Over Current | If no output is displayed, the troubleshooting output is normal | |
|
Safety |
Surge | L-N: 2kV |
| Withstand Voltage | I/P-O/P:2000VAC/5mA I/P-PG:1500VAC/5mA O/P-PG:500VAC/5mA | |
| Safety Standards | UL8750 | |
| Insulation Resisance | 5Mfi | |
|
Others |
Working Temp. | -40℃~+50℃ |
| Storage Temp.; Humidity | -40℃~85℃, 20-90%RH | |
| Tc | 90℃ @90Vac | |
| Material | Metal | |
| IP Rating | IP67 | |
| Lifetime | 50,000h@tc:85℃ | |
| Warranty Condition | 5years | |
| Switch Cycle | >25,000 times | |
| Packing Size | Net weight: 255g±5%/PCS; 30PCS/Carton; 7.6kg±5%/Carton; Carton Size: 270*203*186mm(L*W*H) | |
| Dimension | 145*40.8*22.5mm(L*W*H) | |
