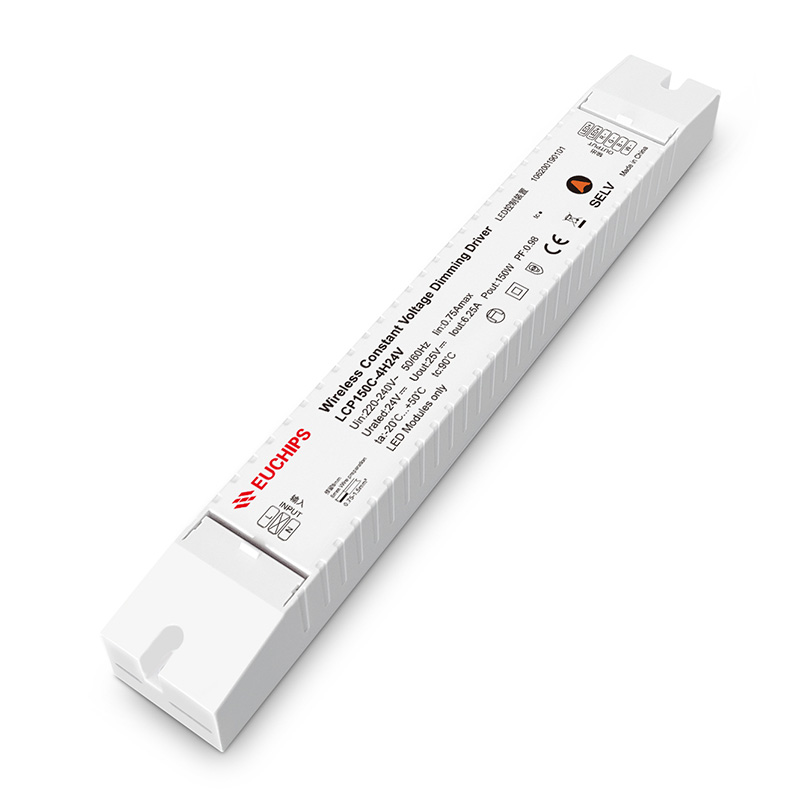

150W 24VDC 4ch Casambi CC Dimming Driver LCP150C-4H24V

Short Description:

Item No.: LCP150C-4H24V
Output Power: 150W

Product Detail

Product Tags

150W 24VDC 4ch Casambi CC Dimming Driver LCP150C-4H24V

LCP150C-4H24V is a constant voltage mode output LED driver, Using Casambi wireless control and dimming, the curve is smooth and flicker free.

Features

·4 channel constant voltage output, maximum output current 6.25A.

·Strong scalability, suitable for small home systems to large commercial or industrial lighting systems

·Flexible wireless control allows for remote management and real-time adjustment of lighting settings

·Good compatibility, able to integrate with various third-party devices and protocols

·User friendliness, easy control and configuration through smart device applications

·Overload, short circuit protection, Overcurrent protection ,V0 flame-retardant enclosure

·50,000-hour lifespan with a 5-year warranty

·IP20 protection rating, suitable for indoor Class I, II, and III luminaires

Technical Parameters

Model	LCP150C-4H24V
Input	Efficiency	94%@230VAC, Full load
	Voltage	220VAC-240VAC
	Frequency Range(Hz)	50/60Hz
	Power Factor	≥0.98@230VAC, Full load
	THD(full load)	≤10%@230VAC, Full load
	AC Current(max)	0.76Amax@230VAC
	No load Power	<1W@230VAC
	Standby power	<1W@230VAC
	Inrush Current(max)	Cold start,63.4A@230VAC 220us
	Turn on Time	<0.75s (When the light begins to shine)
Output	Output Current	6.25A
	Output Voltage	24VDC±5%
	Output Power	150W
	Output Channel	4
	Over power limit	≥136%
	Ripple	≤1%
	Frequency	4KHz PWM
Function	Dimming Type	Bluetooth 4.0 or 5.0 Low Energy(BLE)
	Dimming Range	1%-100% Dimming to off
	Dimming curve	Logarithm
Protection	Short Circuit	Shut down output, Auto-recovery after Fault Clearance
	Over Load	Hiccup protection, Auto-recovery after Fault Clearance
	Over Current	Hiccup protection, Auto-recovery after Fault Clearance
Safety & EMC	Surge	L-N:2kV
	Safety standard	CCC(China) GB19510.1，GB19510.14; TUV (Germany) EN61347-1，EN61347-2-13，EN62493
		CB(CB member states) IEC61347-1，IEC61347-2-13; CE (European Union) EN61347-1，EN61347-2-13，EN62384
		RCM(Australia) AS 61347-1，AS 61347-2-13; ENEC (Europe) EN61347-1，EN61347-2-13，EN62384
	EMC	CCC(China) GB/T17743，GB17625.1
		CE(European Union) EN55015，EN61000-3-2，EN61000-3-3，EN61547
		RCM(Australia) EN55015，EN61000-3-2，EN61000-3-3，EN61547
	EMI	EN61000-4-2, 3, 4, 5, 6, 8, 11; EN61547
	Insulation impedance	5MΩ
Environment	Working Temp.	[ -20~+50]°C [-4°F~122°F]
	Storage Temp Humidity	[ -40~+90]°C [-40°F~194°F] 20~90%RH
	tc	90℃ [ 194°F ]
	material	PC
	IP Rating	IP20
	Lifetime	50,000h@tc:90℃ [ 194°F ]
	Warranty Condition	5years
	Switch Cycle	25,000times
	Body size	2954032mm[LWH]
	Packing(weight)	Net weight: 305g±5%/PCS; 50PCS/Carton; 15.7kg±5%/Carton; Carton Size: 434302174mm(LWH)
	Noise	In a quiet environment，No noise outside 30-50cm
Remark	All parameters were measured at an input voltage of 230VAC/50Hz and an ambient temperature of 25 ℃ without any special instructions.
