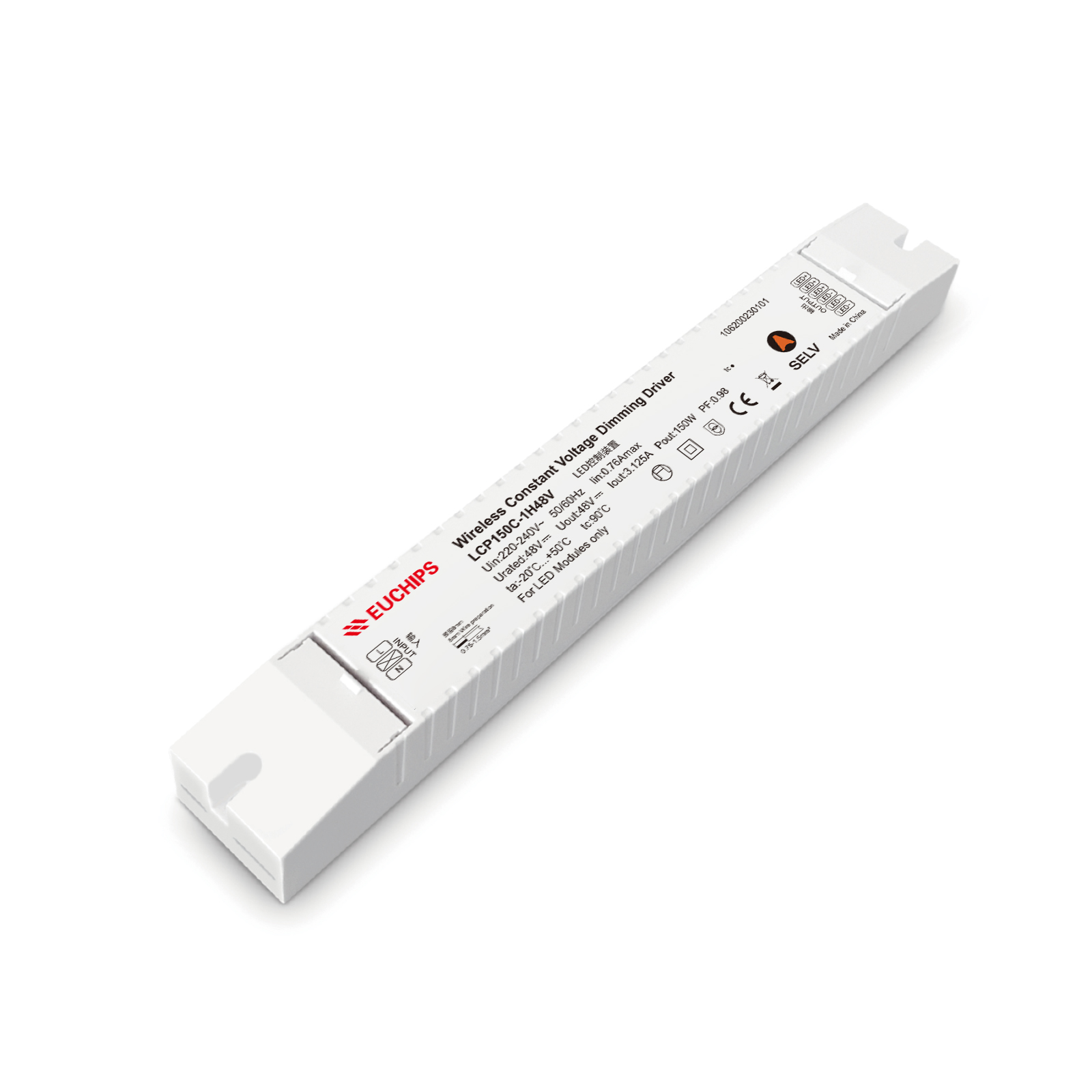

150W 48VDC 1ch Casambi CV Dimming Driver LCP150C-1H48V

LCP150C-1H48V is a constant voltage mode output LED driver, Using Casambi wireless control and dimming, the curve is smooth and flicker free.

Features

· 1 channel constant voltage output, maximum output current 3.125A.

· Strong scalability, suitable for small home systems to large commercial or industrial lighting systems

· Flexible wireless control allows for remote management and real-time adjustment of lighting settings

· Good compatibility, able to integrate with various third-party devices and protocols

· User friendliness, easy control and configuration through smart device applications

· Short circuit protection, overload protection, overcurrent protection, V0 flame-retardant housing

· 50,000-hour lifespan with a 5-year warranty

· IP20 protection rating, suitable for indoor Class I, II, luminaires

Technical Parameters

Model	LCP150C-1H48V
Input	Efficiency	≥93%@230VAC, Full load
	Voltage	220VAC-240VAC
	Frequency Range(Hz)	50/60Hz
	Power Factor	≥0.98@230VAC, Full load
	THD(full load)	≤10%@230VAC, Full load
	AC Current	0.76Amax@230VAC
	Standby power	<0.5W@230VAC
	No load Power	<0.75W@230VAC
	Inrush Current	Cold start,56.8A@230VAC 220us
	Turn on delay Time	<0.75s (When the light begins to shine)
Output	Current	3.125A
	Voltage	48VDC±5%
	Power	150W
	Channel	1
	Over power limit	≥132%
	Ripple wave	≤174mV
	Frequency	20KHz PWM
Function	Dimming Type	Bluetooth 4.0 or 5.0 Low Energy(BLE)
	Dimming Range	1%-100% Dimming to off
	Dimming curve	Logarithm
	Flicker	Flicker free
Protection	Short Circuit	Close the output and recover after troubleshooting
	Over Load	Reduce current burp protection, self-recovery after troubleshooting
	Over Current	Reduce current burp protection, self-recovery after troubleshooting
Safety & EMC	Surge	L-N:2KV
	Withstand Voltage	I/P-O/P: 3750VAC/1min/5mA
	Safety standard	CCC (China) GB19510.1，GB19510.14 TUV (Germany) EN61347-1，EN61347-2-13，EN62493
		CB (CB member states) IEC61347-1，IEC61347-2-13 CE (European Union) EN61347-1，EN61347-2-13，EN62384
		RCM (Australia) AS 61347-1，AS 61347-2-13 ENEC (Europe) EN61347-1，EN61347-2-13，EN62384
	EMC	CCC (China) GB/T17743，GB17625.1
		CE (European Union) EN55015，EN61000-3-2，EN61000-3-3，EN61547
		RCM (Australia) EN55015，EN61000-3-2，EN61000-3-3，EN61547
	EMI	EN61000-4-2, 3, 4, 5, 6, 8, 11; EN61547
	Insulation impedance	5MΩ

Environment	Working Temp.	[-20~+50]°C
	Storage Temp Humidity	(-40~+90)°C 20~90%RH
	tc	90°C for safety & life
	Material	PC
	IP Rating	IP20
	Lifetime	50,000h@tc:90°C
	Warranty Condition	5years
	Switch Cycle	25,000times
	Body size	2954032mm[LWH]
	Packing(weight)	Net weight: 480g±5%/PCS; 50PCS/Carton; 24.5kg±5%/Carton; Carton Size: 471312203mm(LWH)
	Noise	In a quiet environment，No noise outside 30-50cm
Remark	All parameters were measured at an input voltage of 230VAC/50Hz and an ambient temperature of 25 ℃ without any special instructions.
