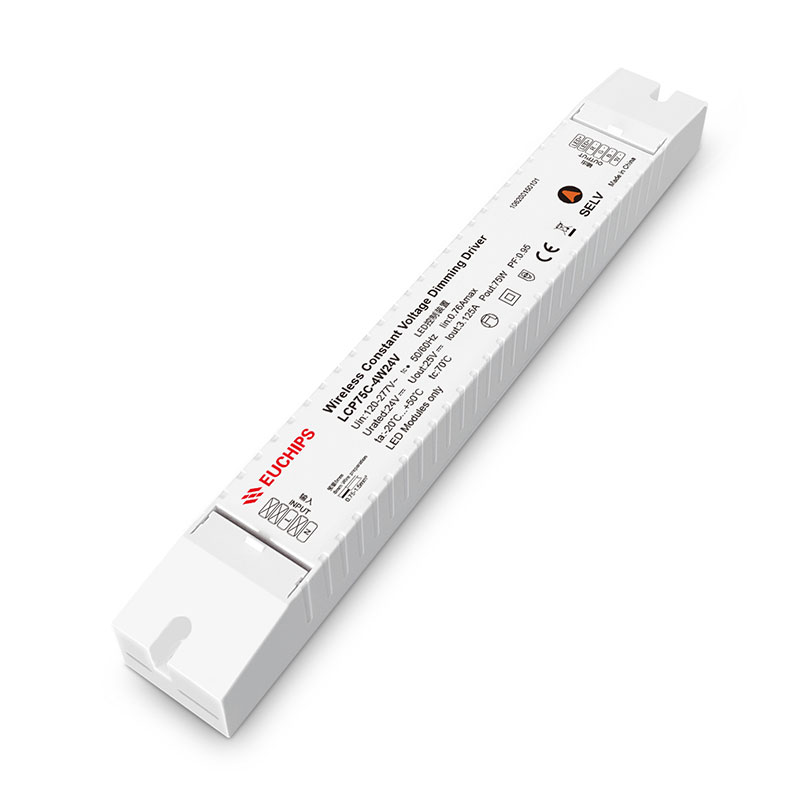

75W 24VDC 4ch Casambi CV Dimming Driver LCP75C-4W24V

Short Description:

Item No.: LCP75C-4W24V
Output Power: 75W

Download Certificates Download Test Reports

Product Detail

Product Tags

75W 24VDC 4ch Casambi CV Dimming Driver LCP75C-4W24V

LCP75C-4W24V is a constant voltage mode output LED driver, Using Casambi wireless control and dimming, the curve is smooth and flicker free.

Features

· Strong scalability, suitable for small home systems to large commercial or industrial lighting systems

· Flexible wireless control allows for remote management and real-time adjustment of lighting settings

· Good compatibility, able to integrate with various third-party devices and protocols

· User friendliness, easy control and configuration through smart device applications

· Overload, short circuit protection

· 50,000-hour lifespan with a 5-year warranty

· IP20 protection rating, suitable for indoor Class I, II, and III luminaires

Technical Parameters

Model	LCP75C-4W24V
Input	Efficiency	≥90%@120VAC , ≥92%@277VAC, full load
	Voltage	120VAC-277VAC
	Frequency Range(Hz)	50/60Hz
	AC Current(max)	0.76Amax @120VAC , 0.37Amax@277VAC
	PF	≥0.95@120VAC full load , ≥0.95@277VAC,full load
	THD	<10%@120VAC full load , <10%@277VAC, full load
	Inrush Current(max)	Cold start, 38A@120VAC 350us 52A@277VAC 350us
	Standby power	<1W@120VAC
	No load power	<1.5W@120VAC
	Turn on delay Time	<0.75s, @120Vac (When the light begins to shine)
Output	Current	3.125A
	Voltage	24VDC
	Voltage Range	24VDC ±5%
	Power	75W
	Channel	4
	PWM Frequency	4K Hz
Function	Dimming Type	Bluetooth 4.0 or 5.0 Low Energy(BLE)
	Dimming Range	1%-100%
	Dimming curve	Logarithm
	Flicker	Flicker free
Protection	Short Circuit	Close the output and recover after troubleshooting
	Over Load	Reduce current burp protection, self-recovery after troubleshooting
	Over Current	Reduce current burp protection, self-recovery after troubleshooting
Safety&EMC	Surge	L-N 2000VAC
	Withstand Voltage	I/P-O/P: 3000VAC/1min/5mA
	Safety standards	EN61347, GB19510
	EMC Eission	EN55015, EN61000-3-2
	EMC Immunity	EN61000-4-2, 3, 4, 5, 6, 8, 11; EN61547
	Insulation Resisance	5MΩ
Others	Working Temp.	-20℃~+50℃ (-4°F-122°F)
	Storage Temp., Humidity	-40℃~90℃, 20-90%RH (-40°F-194°F)
	tc	70℃ (158°F)
	Material	PC
	IP Rating	IP20
	Lifetime	50,000h@tc:70℃ (158°F)
	Warranty Condition	5 years
	Switch Cycle	25,000 times
	Packing(weight)	Net weight: 340g (0.75 lb)±5%/PCS; 50PCS/Carton;17.5kg(38.58 lb)±5%/Carton; Carton Size: 434302174mm(1711.886.85 Inch)(LWH)
	Dimension	2954032mm(11.611.571.26 Inch)(LWH)
