65W 200~350mA Non-dimmable CC Driver DULP65-1HMC-S3

Short Description:

Item No.: DULP65-1HMC-S3
Output Power: 65W

Download Certificates Download Test Reports

Product Detail

Product Tags

65W 200~350mA Non-dimmable CC Driver DULP65-1HMC-S3

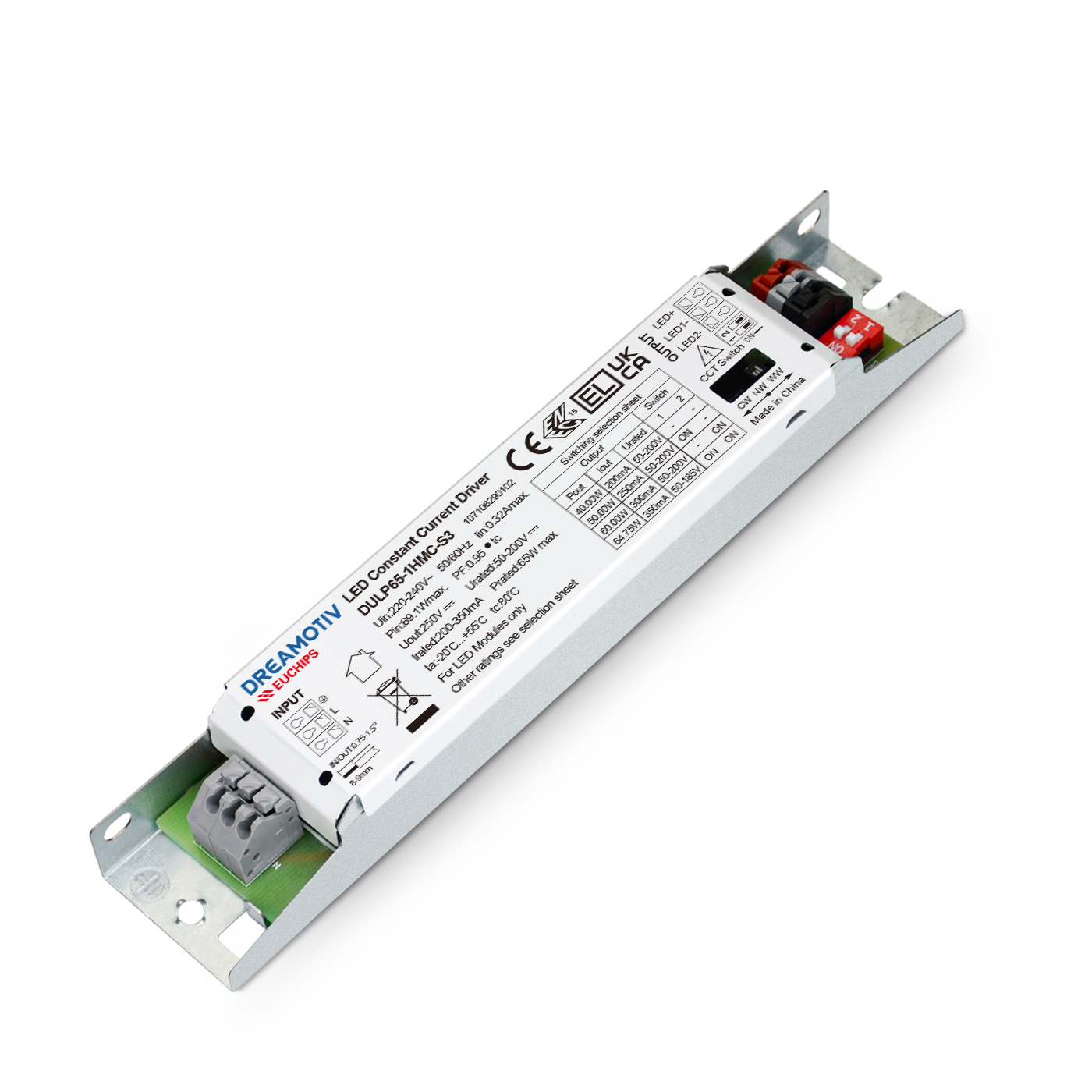

DULP65-1HMC-S3 is a 65W constant current LED driver. The input voltage range is 198-264Vac. The output current can be adjusted within the range of 200-350mA through the dip switch and three color temperature settings. The product size is 168*30.5*22.5mm, which is convenient for integration into linear lighting products. To ensure the stable and reliable operation of the equipment, the driver has functions of output short circuit protection, overvoltage protection, and overtemperature protection.

Features

Single-channel constant current output, with current adjustable via dip switch
Supports switching of 3 color temperatures via sliding switch, and independent emergency mode
Can withstand 380VAC high voltage shock for a short period
Complies with CE, ENEC, UKCA, RCM, etc. certifications
Output has no flicker, meeting the no-flicker standard for ErP energy efficiency certification
Protection level IP20, suitable for internal use in Class I lamps
Dual-stage circuit design, stable operation
Suitable for lamps with built-in drivers such as triple protection lamps

Technical Parameters

Model	DULP65-1HMC-S3
Input	Input Voltage	220VAC-240VAC
	Input voltage range	198VAC-264VAC
	Input VDC	176-280VDC
	Frequency Range(Hz)	50/60Hz
	Input Current	0.32Amax@230VAC
	Power Factor	0.95@230VAC, Full load
	Efficiency	93%@230VAC, Full load
	THD	10%@230VAC, Full load
	No-load power	<0.5W
	Inrush Current	Cold start, 13A@230V 220us
Output	Output Current	200mA	250mA	300mA	350mA
	Output Voltage	50-200VDC	50-200VDC	50-200VDC	50-185VDC
	Output Power	40.00W	50.00W	60.00W	64.75W
	Current Accuracy	±5%
	Output Ripple	High frequency > 1 kHz: ±5% High frequency<120 Hz:±5%
	Output Power Range	40W~64.75W
	PstLM	≤1
	SVM	≤0.4
	Dimming frequency	/
	Line Regulation	±1% @Full load
	Load Regulation	±3% @Full load
	Turn on delay Time	0.5s, at230Vac (When the light begins to shine)
Protection	Short circuit	Burping, returns to normal after troubleshootingd.
	Over Current	Burping, returns to normal after troubleshooting
	Over load	Load power greater than or equal to 150% triggers protection, and the current will decrease until it reaches the shutdown level.
	Over Voltage	/
	Over temperature	The current has decreased and the fault has been eliminated, with the output returning to normal.

Safety& EMC	Surge	L-N:2KV L-FG/N-FG:2KV
	Withstand Voltage	I/P-FG: 1750VAC
	Safety Standards	CCC	(China) GB19510.1，GB19510.14 TUV	(Germany) EN61347-1，EN61347-2-13，EN62493
		CB	(CBmember states) IEC61347-1，IEC61347-2-13 CE	(European Union) EN61347-1，EN61347-2-13，EN62384
		RCM	(Australia) AS 61347-1，AS 61347-2-13 ENEC	(Europe) EN61347-1，EN61347-2-13，EN62384
	EMC Emission	CCC	(China) GB/T17743，GB17625.1
		CE	(European Union) EN55015，EN61000-3-2，EN61000-3-3，EN61547
		RCM	(Australia) EN55015，EN61000-3-2，EN61000-3-3，EN61547
	EMC Immunity	EN61000-4-2, 3, 4, 5, 6, 8, 11; EN61547
Environment	Working Temp.	-20℃~55℃
	Storage Temp.	-40℃~85℃
	Storage Humidity	10-90%RH (No condensation)
Others	RoHS	Comply with 2011/65/EU
	tc	80℃
	Material	Metal
	IP Rating	IP20
	Lifetime	50,000h@tc:70℃
	Warranty Condition	5years
	Switch Cycle	25,000 times
	Body size	16830.522.5mm (LWH)
	Packing(weight)	Net weight: –g±5%/PCS; —PCS/Carton; –kg±5%/Carton; Carton Size: ———mm(LWH)
	Noise	In a quiet environment, no noise beyond 30-50cm
Remark	All parameters were measured at an input voltage of 230VAC/50Hz and an ambient temperature of 25 ℃ without any special instructions.
