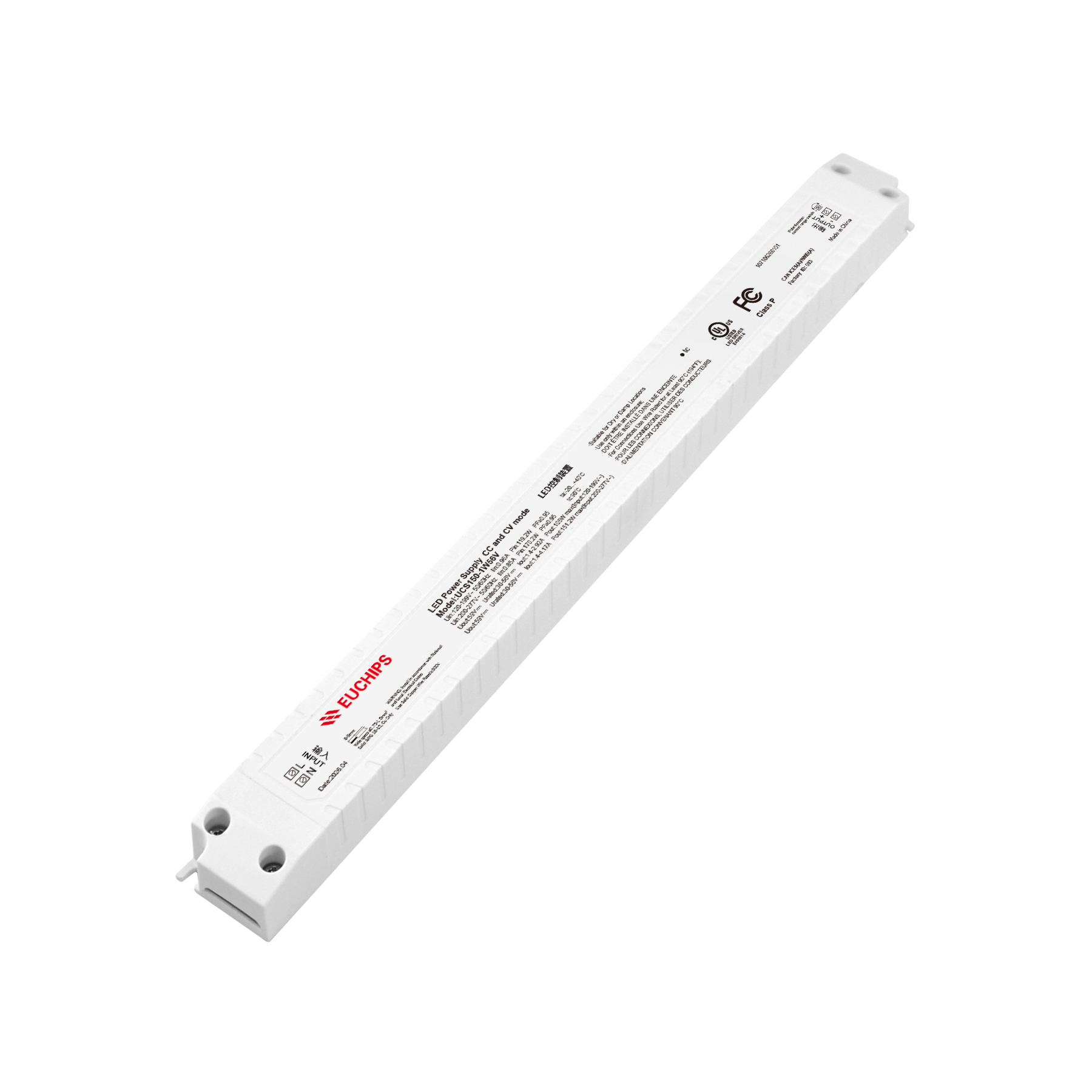

150W 56VDC Non-Dimmable CV LED Driver UCS150-1W56V
150W 56VDC Non-Dimmable CV LED Driver UCS150-1W56V
Features
· Current + Voltage Output Mode
· Short circuit, overcurrent, overload, overvoltage protection, V0 grade flame-retardant shell
· Slim-profile linear design for easy installation in confined spaces
· 50,000-hour lifespan with a 5-year warranty
· 100% full-load burn-in testing
· IP20 rating for indoor LED strip applications
Technical Parameters
| Model | UCS150-1W56V | |
|
Input |
Rated Voltage Range | 120VAC-305VAC (The output will be reduced under low input voltage conditions. Please refer to the static characteristic curve for details.) |
| Rated Voltage | 120VAC-277VAC | |
| Frequency Range(Hz) | 50/60Hz | |
| Input Current | 0.99Amax@120VAC、0.72Amax@230VAC、0.6Amax@277VAC | |
| Power Factor | ≥0.97@120-277VAC , Full load | |
| Efficiency | >90%@120VAC , >93%@277VAC , Full load | |
| THD(full load) | <10%(@load≥60%/120VC,230VAC; @load≥75%/277VAC) | |
| Leakage current | <0.25mA / 277VAC | |
| Standby power | / | |
| No load power | / | |
| Inrush Current | Cold start 65A(Test twidth=270us at 50% Ipeak)/230VAC; Per NEMA 410 | |
|
Output |
Output Voltage | 56VDC |
| Constant Current Range | 30~56V | |
| Output Current | 2.7A Max | |
| Output Power Range | 151.2W | |
| Output current accuracy | ±3% | |
| Strobe (depth of fluctuation) | IEC-Pst≤1，CIE SVM≤0.4,Meets the flicker free standard (IEEE Std 1789-2015) | |
| Line regulation | ±1% @Full load | |
| Load regulation | ±1.5% @Full load | |
| Turn on Time | ≤0.75s, at230Vac (When the lights start to come on) | |
| Protection | Short circuit | Hiccups will recover by themselves after the fault is eliminated |
| Overcurrent | Hiccups will recover by themselves after the fault is eliminated | |
| Overload | Load power ≥110% protection, normal output after fault elimination | |
| overvoltage | 60~70V | |
|
Safety & EMC |
Surge | L-N:1KV |
| Withstand Voltage | I/P-O/P: 3860VAC/1min/5mA | |
| Safety standard | UL8750, CSA C22.2 No. 250.13-12; ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 independent, | |
| BS EN/EN62384; EAC TP TC 004,GB19510.1,GB19510.14,IS15885(Part2/Sec13) ,EN60335-1 Certification passed | ||
| EMC | CCC (China) GB/T17743，GB17625.1 | |
| CE (European Union) EN55015，EN61000-3-2，EN61000-3-3，EN61547 | ||
| EMI | RCM (Australia) EN55015，EN61000-3-2，EN61000-3-3，EN61547 | |
| EN61000-4-2, 3, 4, 5, 6, 8, 11; EN61547 | ||
| Environment | Working Temp. | -20℃~50℃ |
| Storage Temp. | -40℃~85℃ | |
| Storage Humidity | 20-90%RH (No condensation) | |
|
Others |
RoHS | Comply with 2011/65/EU |
| tc | 90℃ for safety & 80℃ for life | |
| material | Metal | |
| IP Rating | IP20 | |
| Lifetime | 50,000h@tc:75℃ | |
| Warranty Condition | 5years | |
| Switch Cycle | 25,000times | |
| Body size | 323*30.5*22mm (L*W*H) | |
| Packing(weight) | Net weight: 330g±5%/PCS; 50PCS/Carton; 17.15kg±5%/Carton; Carton Size:499*366*134mm(L*W*H) | |
| Noise | In a quiet environment，No noise outside 30-50cm | |
| Remark | All parameters were measured at an input voltage of 230VAC/50Hz and an ambient temperature of 25 ℃ without any special instructions. | |
