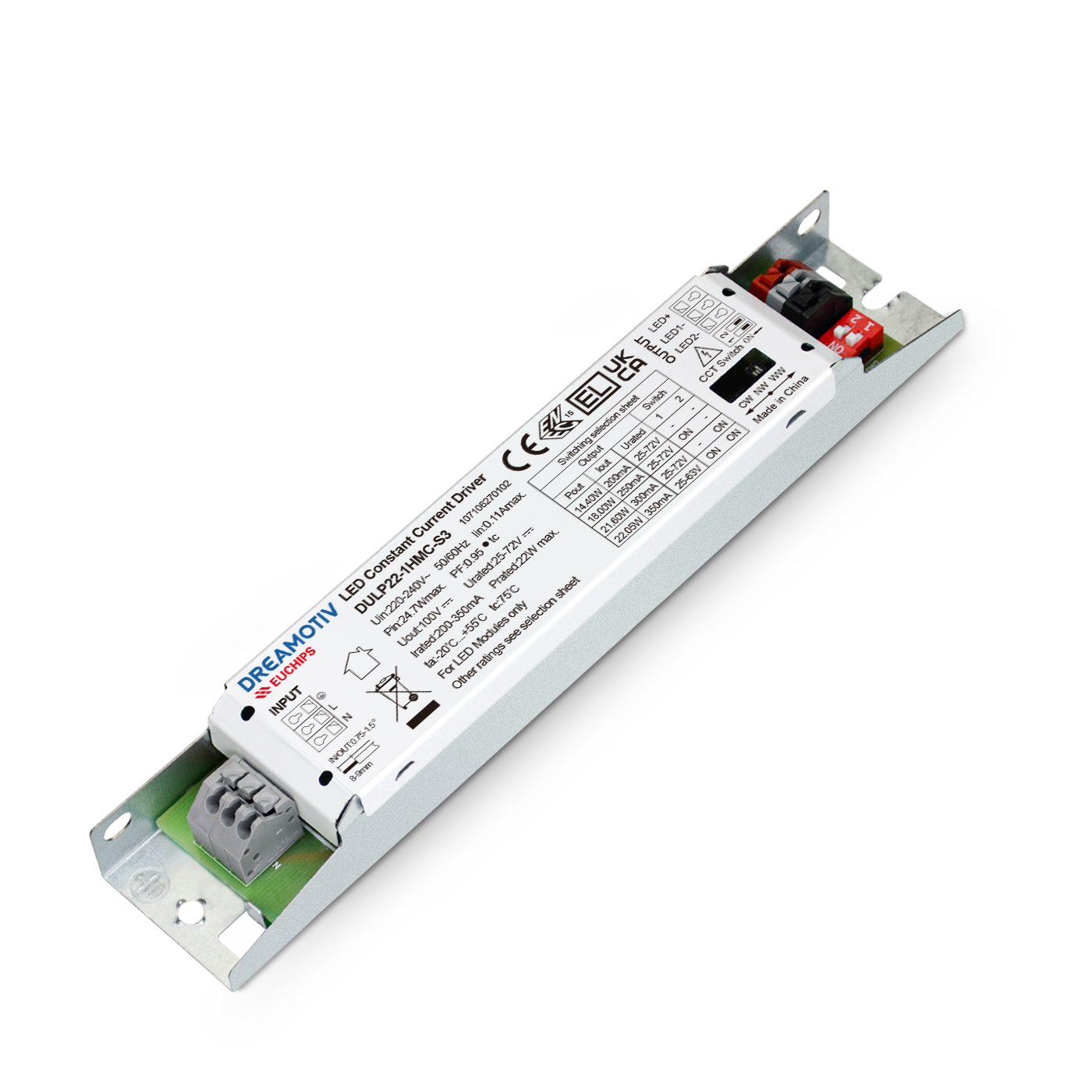

DULP22-1HMC-S3 is a 22W constant current LED driver. The input voltage range is 198-264Vac.
The output current can be adjusted within the range of 200-350mA through the dip switch and three color temperature settings. The product size is 168*30.5*22.5mm, which is convenient for integration into linear lighting products.
To ensure the stable and reliable operation of the equipment, the driver has functions of output short circuit protection, overvoltage protection, and overtemperature protection.
Features
- Single-channel constant current output, with current adjustable via dip switch
- Supports switching of 3 color temperatures via sliding switch, and independent emergency mode
- Can withstand 380VAC high voltage shock for a short period
- Complies with CE, ENEC, UKCA, RCM, etc. certifications
- Output has no flicker, meeting the no-flicker standard for ErP energy efficiency certification
- Protection level IP20, suitable for internal use in Class I lamps
- Dual-stage circuit design, stable operation
- Suitable for lamps with built-in drivers such as triple protection lamps
Technical Parameters
|
Model |
DULP22-1HMC-S3 | |||||
|
Input |
Input Voltage | 220VAC-240VAC | ||||
| Input voltage range | 198VAC-264VAC | |||||
| Input VDC | 176-280VDC | |||||
| Frequency Range(Hz) | 50/60Hz | |||||
| Input Current | 0.11Amax@230VAC | |||||
| Power Factor | 0.95@230VAC, Full load | |||||
| Efficiency | 88%@230VAC, Full load | |||||
| THD | 15%@230VAC, Full load | |||||
| No-load power | <0.5W | |||||
| Inrush Current | Cold start, 13A@230V 220us | |||||
|
Output |
Output Current | 200mA |
250mA |
300mA |
350mA |
|
| Output Voltage | 25-72VDC |
25-72VDC |
25-72VDC |
25-63VDC |
||
| Output Power | 14.40W |
18.00W |
21.60W |
22.05W |
||
| Current Accuracy | ±5% | |||||
| Output Ripple | High frequency > 1 kHz: ±5% High frequency<120 Hz:±5% | |||||
| Output Power Range | 14.4W~22W | |||||
| PstLM | ≤1 | |||||
| SVM | ≤0.4 | |||||
| Dimming frequency | / | |||||
| Line Regulation | ±1% @Full load | |||||
| Load Regulation | ±3% @Full load | |||||
| Turn on delay Time | 0.5s, at230Vac (When the light begins to shine) | |||||
|
Protection |
Short circuit | Burping, returns to normal after troubleshootingd. | ||||
| Over Current | Burping, returns to normal after troubleshooting | |||||
| Over load | Load power greater than or equal to 150% triggers protection, and the current will decrease until it reaches the shutdown level. | |||||
| Over Voltage | / | |||||
| Over temperature | The current has decreased and the fault has been eliminated, with the output returning to normal. | |||||
|
Safety& EMC |
Surge | L-N:2KV L-FG/N-FG:2KV | ||
| Withstand Voltage | I/P-FG: 1750VAC | |||
| Safety Standards |
CCC |
(China) GB19510.1，GB19510.14 TUV | (Germany) EN61347-1，EN61347-2-13，EN62493 | |
|
CB |
(CBmember states) IEC61347-1，IEC61347-2-13 CE | (European Union) EN61347-1，EN61347-2-13，EN62384 | ||
|
RCM |
(Australia) AS 61347-1，AS 61347-2-13 ENEC | (Europe) EN61347-1，EN61347-2-13，EN62384 | ||
| EMC Emission |
CCC |
(China) GB/T17743，GB17625.1 | ||
|
CE |
(European Union) EN55015，EN61000-3-2，EN61000-3-3，EN61547 | |||
|
RCM |
(Australia) EN55015，EN61000-3-2，EN61000-3-3，EN61547 | |||
| EMC Immunity | EN61000-4-2, 3, 4, 5, 6, 8, 11; EN61547 | |||
| Environment | Working Temp. | -20℃~55℃ | ||
| Storage Temp. | -40℃~85℃ | |||
| Storage Humidity | 10-90%RH (No condensation) | |||
|
Others |
RoHS | Comply with 2011/65/EU | ||
| tc | 75℃ | |||
| Material | Metal | |||
| IP Rating | IP20 | |||
| Lifetime | 50,000h@tc:60℃ | |||
| Warranty Condition | 5years | |||
| Switch Cycle | 25,000 times | |||
| Body size | 168*30.5*22.5mm (L*W*H) | |||
| Packing(weight) | Net weight: –g±5%/PCS; —PCS/Carton; –kg±5%/Carton; Carton Size: —*—*—mm(L*W*H) | |||
| Noise | In a quiet environment, no noise beyond 30-50cm | |||
| Remark | All parameters were measured at an input voltage of 230VAC/50Hz and an ambient temperature of 25 ℃ without any special instructions. | |||
