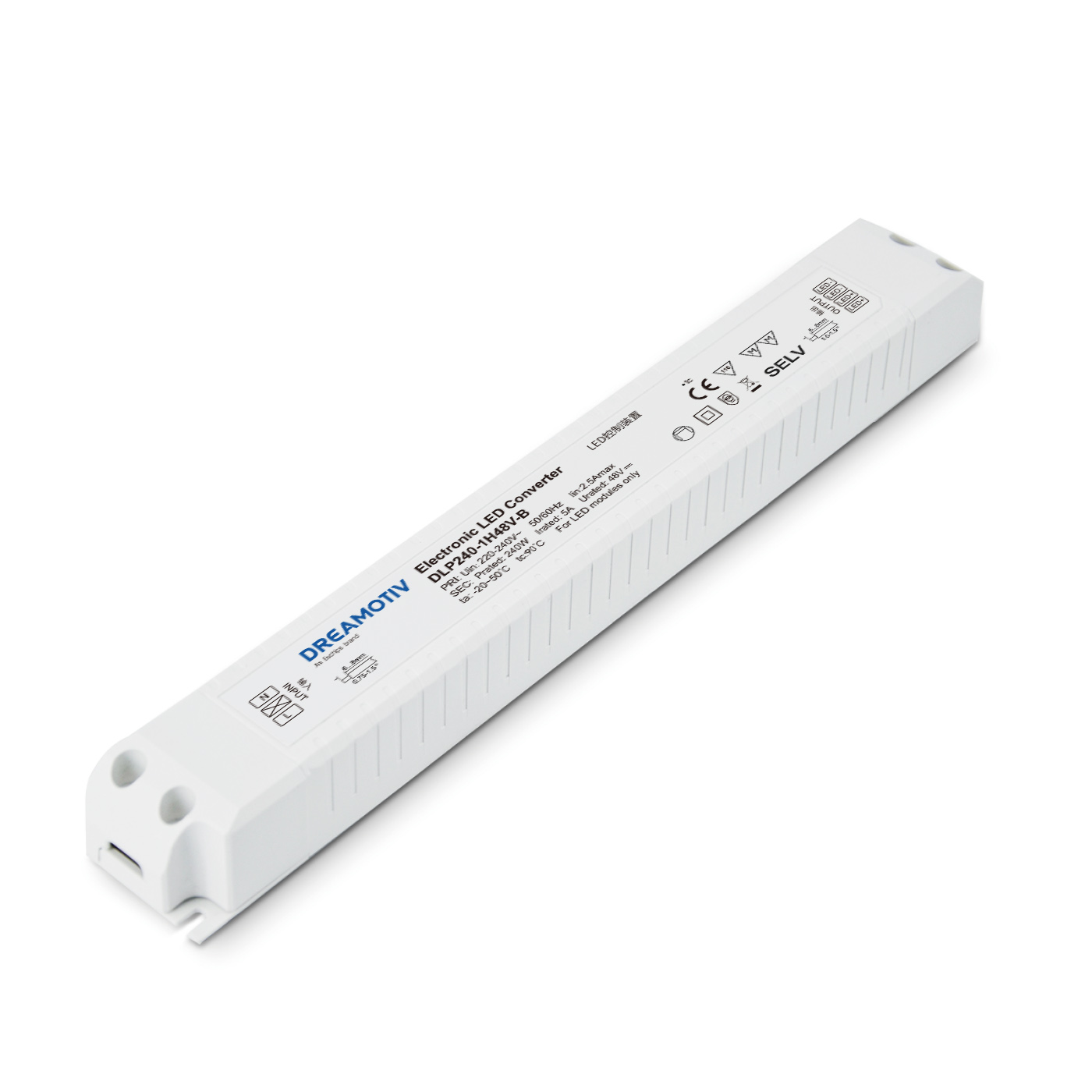

240W 48VDC Non-dimmable CV Driver DLP240-1H48V-B
240W 48VDC Non-dimmable CV Driver DLP240-1H48V-B
Features
· A channel constant voltage output
· Applicable to indoor LED lights
· high efficiency, high reliability and long life time
· -20℃~+50℃, working temp
· Protections: Over Current, Over voltage, Short circuit self-recovery protection
· The typical efficiency of the machine is up to 93%
· Compliance with CE and ROHS
· 100% Full load aging test
Technical Parameters
|
Model |
DLP240-1H48V-B | |
|
Input |
Efficiency | ≥93%@230VAC, full load |
| Voltage | 220VAC-240VAC | |
| Frequency Range(Hz) | 50/60Hz | |
| Power factor | / | |
| AC Current(max) | 2.5Amax@230VAC | |
| Inrush current | Cold start,30A@230VAC 2.4ms | |
| THD | / | |
| No load power | ≤0.5W | |
| Turn on delay Time | ≤ 0.5s, at230Vac (When the light begins to shine) | |
|
Output |
Voltage (VDC) | 48VDC |
| Voltage range | 48V±5% | |
| Current(mA) | 5A | |
| Power(W) | 240W | |
| Channel | 1 | |
| Ripple voltage | ±3% | |
| No-load voltage | 50.2VDC max | |
|
Protection |
Load protection | Reduce current burp protection, troubleshoot normal output |
| Short circuit | Short circuit no output, troubleshooting output normal | |
| Over Current | Voltage drop, troubleshooting output normal | |
|
Safety& EMC |
Surge | L-N 1000VAC |
| Withstand Voltage | I/P-O/P:3750Vac/1min/<5mA | |
| Safety standard | EN61347, GB19510 | |
| EMC Eission | IEC/EN62384,IEC/EN61347-1, IEC/EN61347-2-13, GB19510.1, GB19510.14 | |
| EMC Immunity | EN61000-4-2, 3, 4, 5, 6, 8, 11; EN55015, EN61000-3-2; GB17626.3, 4, 5, 6, 8, 11; GB17743 GB17625.1, 2 | |
| Insulation impedance | 5MΩ | |
|
Others |
Working temp. | ta: -20℃~50℃ |
| Storage Temp., Humidity | -40℃~85℃, 20-90%RH | |
| tc | 90℃ @230Vac | |
| material | Plastic case | |
| IP rating | IP20 | |
| Lifetime | 50,000h@tc:50℃ | |
| Warranty | 5year | |
| Switch cycle | 25,000 times | |
| Packing size | Net weight: 450g±5%/PCS; 30PCS/Carton; 14kg±5%/Carton; Carton Size:352*274*234mm(L*W*H) | |
| Dimension | 345*51*35mm(L*W*H) | |
