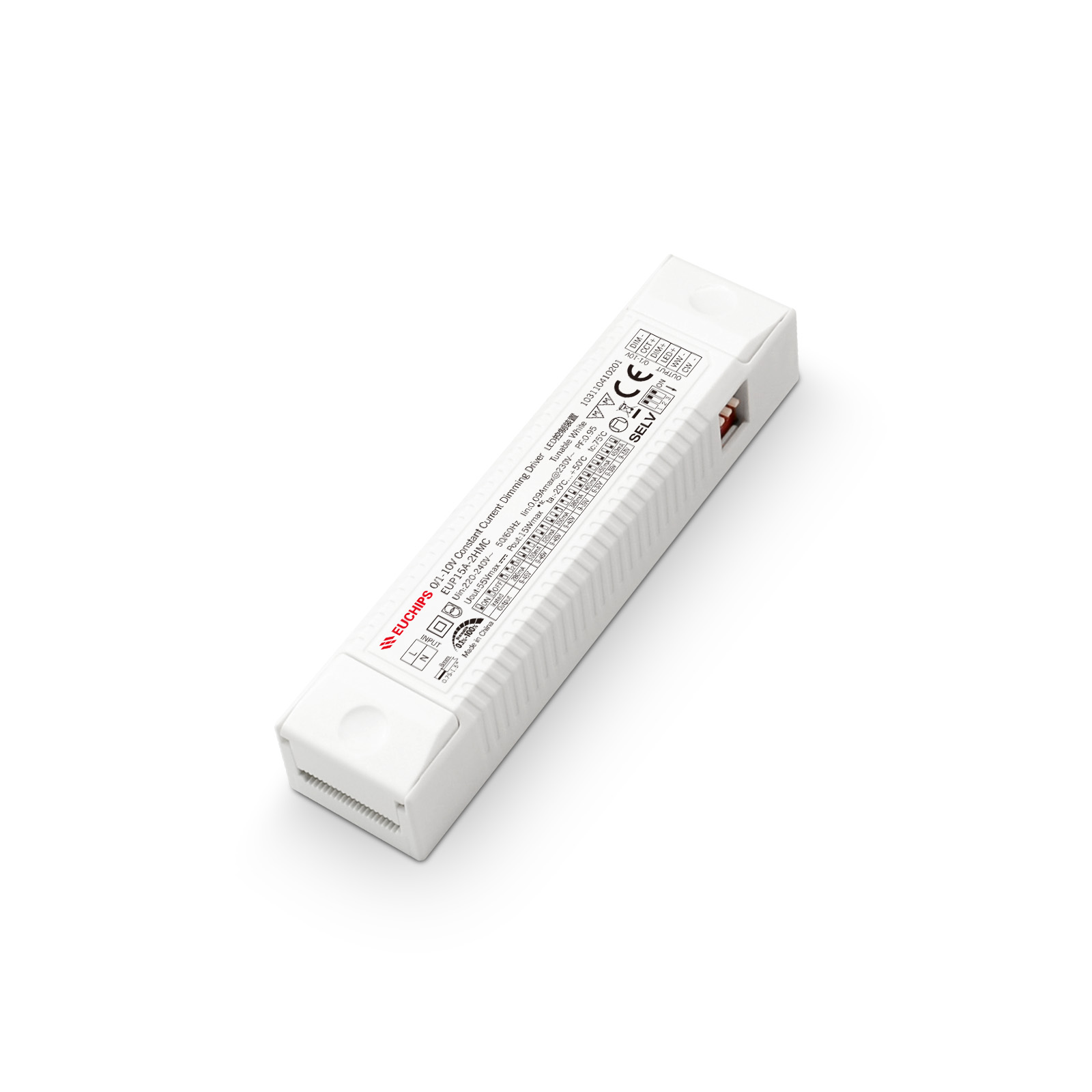

15W 280~450mA*2ch 0/1-10V CC Driver EUP15A-2HMC
15W 280~450mA*2ch 0/1-10V CC Driver EUP15A-2HMC
EUP15A-2HMC is a dimming and color matching constant current dimming driver that can provide 280/300/320/350/380/400/420/450mA 8-level current LED driver. The output current can be dialed through DIP Easy to set up switch.
Features
· Two channel output, output current level selectable by DIP S.W.
· High efficiency up to 85 %
· Protections: Short circuit, over load
· Color temperature range: 2700K–6500K
· Lifetime 50,000h, Warranty Condition 5 years@tc75℃
· Suitable for indoor LED lighting application, such as down light, panel light, and so on
Technical Parameters
| Model | EUP15A-2HMC | |
| Input | Voltage | 220VAC-240VAC |
| Frequency Range(Hz) | 50/60Hz | |
| Input Current | 0.09Amax@230VAC | |
| Power factor | ≥0.95@230VAC, Full load | |
| Efficiency | ≥85%@230VAC, Full load | |
| THD(full load) | <10%@230VAC, Full load | |
| Standby power | ≤0.5W(@230VAC) | |
| Inrush Current | Cold start,18A@230VAC 74us | |
| Output | Voltage/Current/ Power | 280mA/9-45VDC/12.6W 300mA/9-45VDC/13.5W 320mA/9-45VDC/14.4W 350mA/9-43VDC/13.76W 380mA/9-39VDC/14.82W 400mA/9-37VDC/14.8W 420mA/9-35VDC/14.7W 450mA/9-33VDC/14.85W |
| Current accuracy | ±5% | |
| Ripple current | <7% | |
| Channel | 2 | |
| No-load output voltage | 55V Max | |
| Turn on Time | 0.75s, @230VAC(When the light begins to shine) | |
|
Protection |
Short Circuit | No output, self recovery after troubleshooting |
| Over Load | Reduce current, self recover after troubleshooting | |
|
Function |
Dimming Type | 0/1-10V |
| Dimming Range | 0.2%-100% | |
| Dimming curve | Linearity | |
| Color temperature | 2700-6500K | |
|
Safety& EMC |
Surge | L-N:2.5KV |
| pressure resistance | I/P-O/P: 2000VAC/1min/5mA | |
| Insulation Resisance | 5MΩ | |
|
Others |
Working Temp. | -20°C~+50℃ |
| Storage Temp., Humidity | -40~+85℃ 20-90%RH (No condensation) | |
| tc | 75℃ | |
| Material | PC | |
| IP Rating | IP20 | |
| Lifetime | 50,000 hour,@tc:75℃ | |
| Warranty Condition | 5 Years | |
| Switch Cycle | >25,000 times | |
| Packing(weight) | Net weight:—g±5%/PCS; 50PCS/Carton;—kg±5%/Carton; Carton Size: 433*230*200mm(L*W*H) | |
| Dimension | 125*296*22.6mm(L*W*H) | |
| Noise | In a quiet environment, there is no noise outside 30-50cm | |
| Notes | All parameters were measured at an input voltage of 230VAC/50Hz and an ambient temperature of 25 ℃ without any special instructions. | |
