16W 400mA Non-Dimmable CC LED Driver SCS16-1H400C
16W 400mA Non-Dimmable CC LED Driver SCS16-1H400C

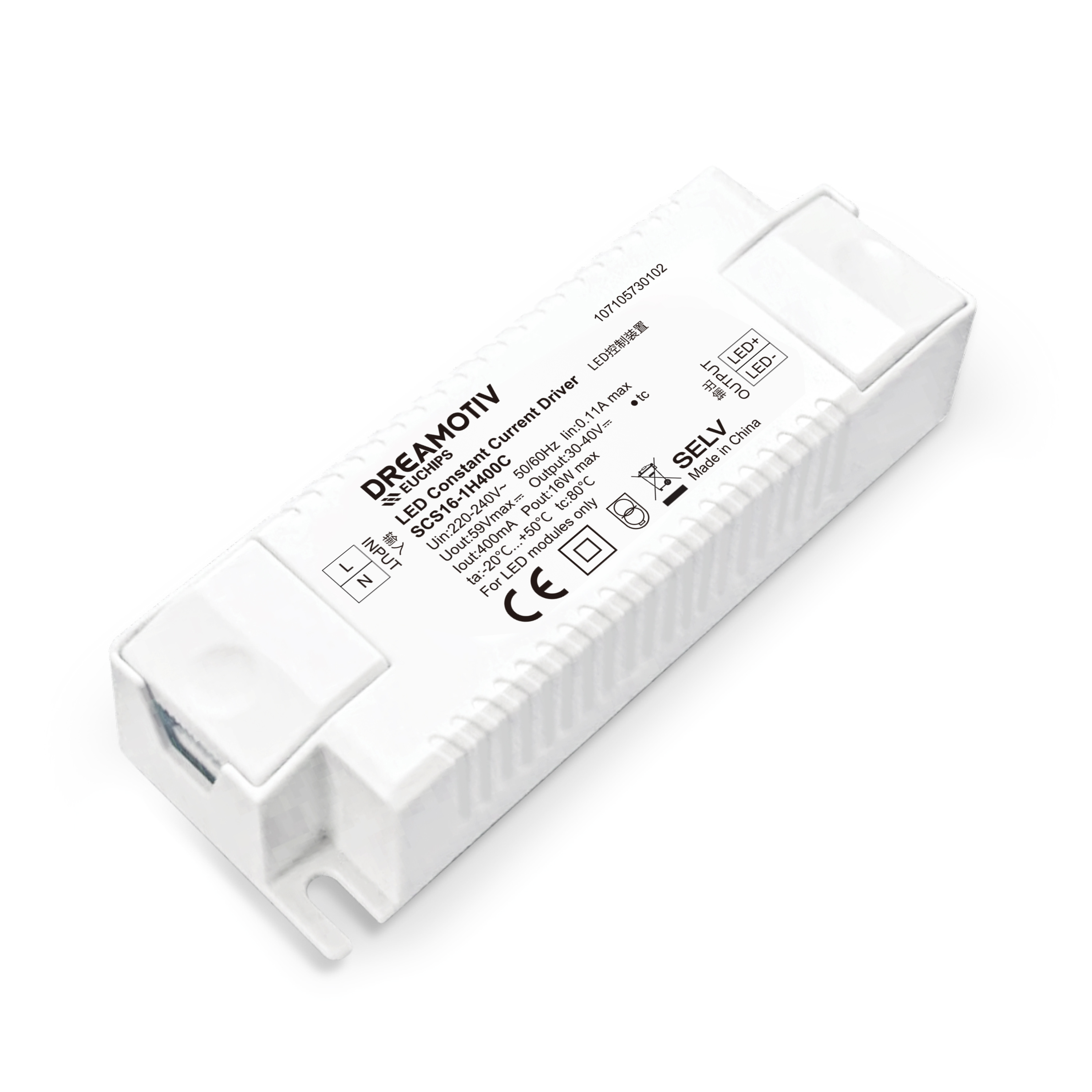

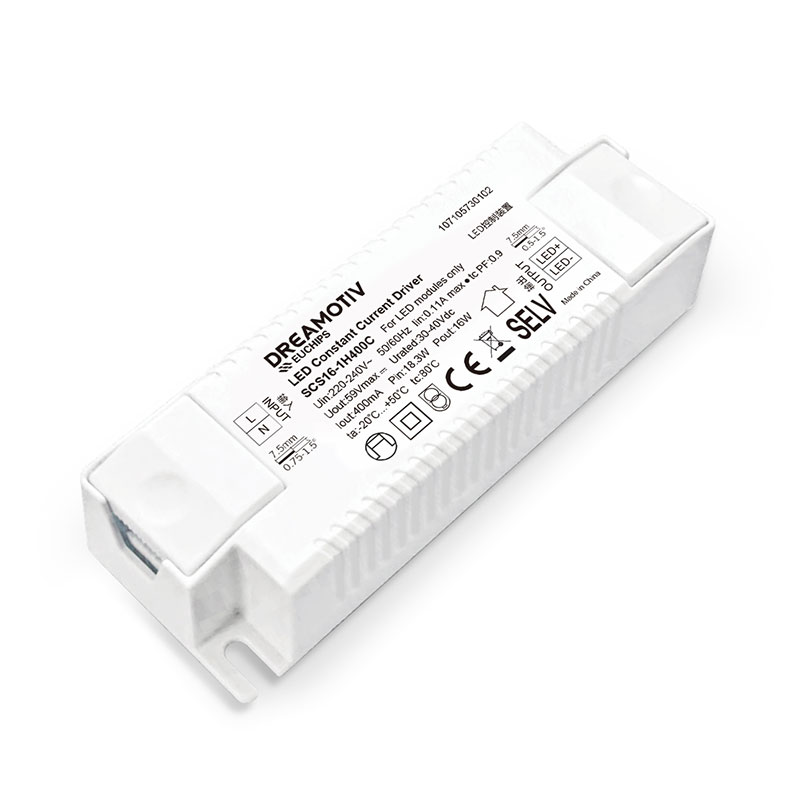

SCS16-1H400C is a 16W constant current LED driver with an output current of 400mA. The end caps on both sides are detachable.
Features
· Single channel constant current output
· Short circuit, overload, overvoltage protection, V0 level flame-retardant shell
· Efficiency up to 93%
· End cover shell disassembly design, easy to install in narrow spaces
· No load power consumption ≤ 0.5W
· Lifespan of 50,000 hours, 5-year warranty
· Protection level IP20, suitable for indoor ClassⅡⅢ lighting fixtures
Technical Parameters
| Model | SCS16-1H400C | ||||
| Input | Input Voltage | 198VAC-264VAC | |||
| Frequency Range(Hz) | 50/60Hz | ||||
| Input Current | 0.11Amax@230VAC | ||||
| Power Factor | >0.9@230VAC, Full load | ||||
| Efficiency | ≥92%@230VAC, Full load | ||||
| THD | <15%@230VAC, Full load | ||||
| Standby power | <0.5W | ||||
| No load power | <0.5W | ||||
| Inrush Current | Cold start, 19A@230VAC 50us | ||||
| Output | Output Voltage Range | 30-40VDC | |||
| Current Accuracy | ±5% | ||||
| Output power range | 11.4-16.8W | ||||
| Line Regulation | ±3% | ||||
| Load Regulation | ±3% @Full load | ||||
| Turn on delay Time | 0.5s, @230Vac (When the light begins to shine) | ||||
| Protection | Short circuit Protection | Hiccup, self-recovering after troubleshooting | |||
| OverVoltage Protection | self-recovering after troubleshooting | ||||
| Overload Protection | Limit the output power to 110% -150% of the rated power | ||||
| Safety& EMC | Surge | L-N:1KV | |||
| Withstand Voltage | I/P-O/P: 3750VAC/1min/5mA | ||||
| Safety Standards | CCC(China) GB19510.1，GB19510.14; TUV(Germany) EN61347-1，EN61347-2-13，EN62493 | ||||
| CB(CBmember states) IEC61347-1，IEC61347-2-13; CE (European Union) EN61347-1，EN61347-2-13，EN62384 | |||||
| RCM(Australia) AS 61347-1，AS 61347-2-1; 3; ENEC (Europe) EN61347-1，EN61347-2-13，EN62384 | |||||
| EMC Emission | CCC(China) GB/T17743，GB17625.1; BIS (India) IS15885 | ||||
| CE(European Union) EN55015，EN61000-3-2，EN61000-3-3，EN61547; KC (Korea) K00032 KN61000-3-2 KN61000-3-3 | |||||
| RCM(Australia) EN55015，EN61000-3-2，EN61000-3-3，EN61547; UKCA (UK) BS EN61347-1，BS EN61347-2-13，BS EN62384 | |||||
| EMC Immunity | EN61000-4-2, 3, 4, 5, 6, 8, 11; EN61547 | ||||
| Environment | Working Temp. | -20℃~50℃ | |||
| Storage Temp. | -40℃~85℃ | ||||
| Storage Humidity | 20-90%RH (No condensation) | ||||
| Others | RoHS | Comply with 2015/863/EU | |||
| tc | 80℃ | ||||
| Material | PC | ||||
| IP Rating | IP20 | ||||
| Lifetime | 50,000h@tc:80℃ | ||||
| Warranty Condition | 5years | ||||
| Switch Cycle | 25,000times | ||||
| Body size | 115*41*28mm (L*W*H) | ||||
| Packing(weight) | Net weight: 90g±5%/PCS; 100PCS/Carton; 9.5kg±5%/Carton; Carton Size: 475*220*165mm(L*W*H) | ||||
| Noise | In a quiet environment，No noise outside 30-50cm | ||||
| Comply with certification | CB, CE, CCC, BIS, KC, RCM, UKCA | ||||
| Input Wire | 0.75. 1.5mm² (Wire outer diameter: Max:7mm, Min3mm) | ||||
| Output Wire | 0.5. 1.5mm² (Wire outer diameter: Max:7mm, Min2mm) | ||||
| Remark | All parameters were measured at an input voltage of 230VAC/50Hz and an ambient temperature of 25 ℃ without any special instructions. | ||||
