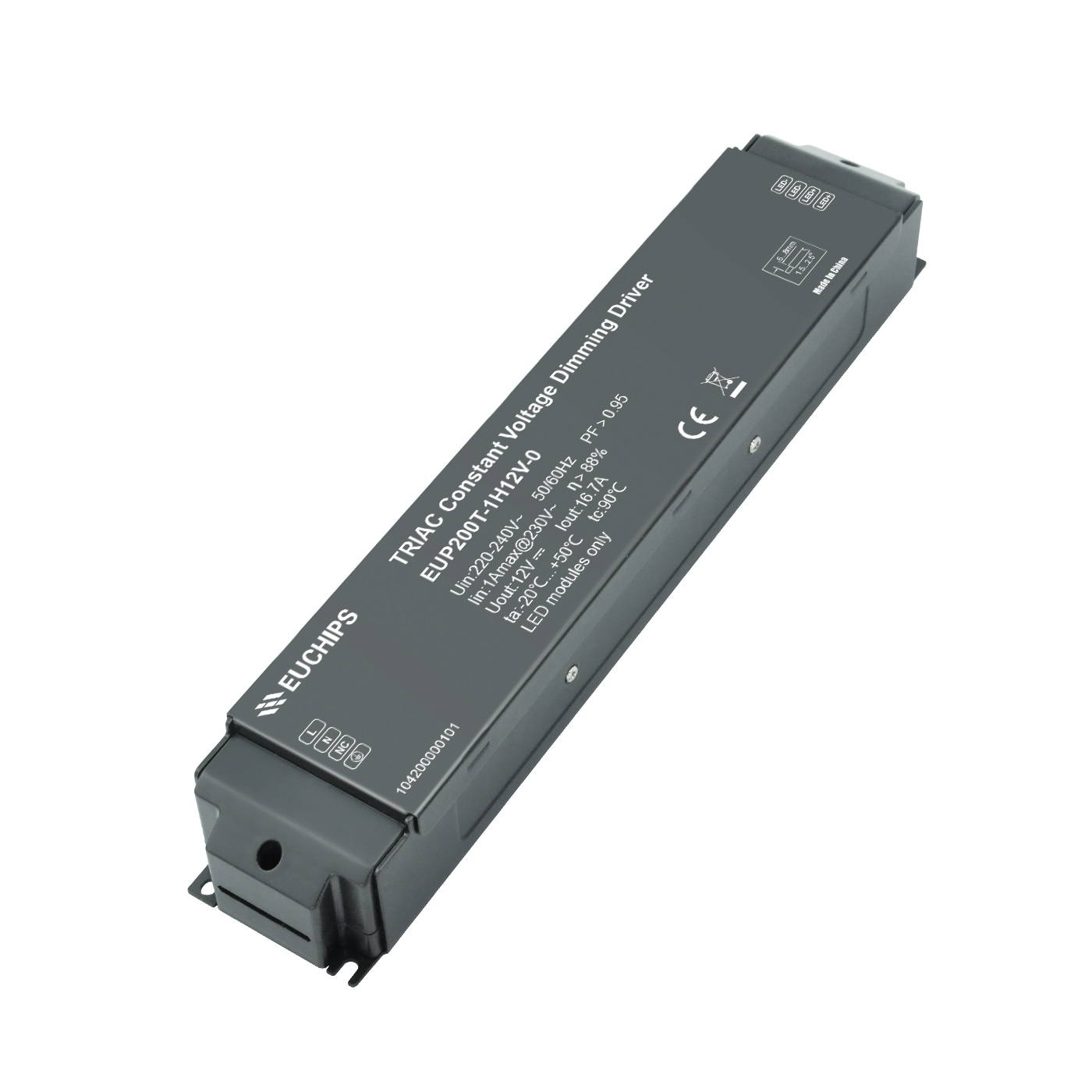

200W 12VDC Phase-cut CV Driver EUP200T-1H12V-0

Short Description:

  • Item No.: EUP200T-1H12V-0
  • Input Voltage: 220-240VAC
  • Output Current: 16.7A*1CH
  • Output Voltage: 12VDC
  • Output Power: 200W
  • Dim Mode: Triac/ELV
  • G.W.: 842g
  • Size: 310*60*45mm

Product Detail

Product Tags

200W 12VDC Constant Voltage Driver EUP200T-1H12V-0

EUP200T-1H12V-0 is a constant voltage mode output LED driver. The driver supports leading edge (Triac) and trailing edge (ELV) dimmer, and can be compatible with the systems of various brands (Philips, Panasonic, Lutron, Simon, ABB, Siemens etc.) to achieve a smooth dimming effect.

Feature

1. Single-channel constant voltage output,16.7A Max.

2. Support Leading edge (Triac) and Trailing edge (ELV) Dimmer.

3. Dimming range from 40VAC to 240V AC.

4. Dimming effect smooth, no flicker

5. High efficiency: up to 88%.

6. Over current protection; Over voltage protection; Short circuit protection; Over temperature Protection

7. Suitable for indoor LED lighting application

Technical Parameter

Model EUP200T-1H12V-0
Input Efficiency 88%@230VAC, Full load
Voltage 220VAC-240VAC
Frequency 50/60Hz
Power Factor >0.95@230VAC, Full load
Current 1Amax@230VAC, Full load
Dimming voltage range 40-240VAC
Inrush Current Cold start, 26A(twidth=680us measured at 50% Ipeak)@230VAC
Output Current/Voltage/Power 16.7A/12VDC/200W
Ripple Current 200mVp-p
Channel 1
Voltage Tolerance ±3%
Turn On Delay Time <1s, at 230Vac
Function Dimming Mode Triac

ELV

Dimming Range 1-100% Dimming to off
Protection Over temperature Shut down and auto-restart after normal temperature
Over current Hiccup, recovers after fault condition is removed
Short Circuit Close the output, restart to recover since fault condition is removed for 10s
Over voltage Hiccup, recovers after fault condition is removed
Others Working Temp. -20℃ ~50℃
Storage Temp.; Humidity -40℃ ~85℃ 20-90%RH
Tc 75℃
Material PC
IP Rating IP20
Lifetime 30,000h@tc:75℃
Warranty Condition 3 years
Switch Cycle >15,000 times
Packing Size Net weight: 842g±5%/PCS; 10PCS/Carton; 10.5kg±5%/Carton; Carton Size: 319*254*151mm(L*W*H)
Dimension 310*60*45mm(L*W*H)
