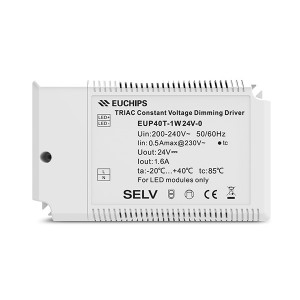

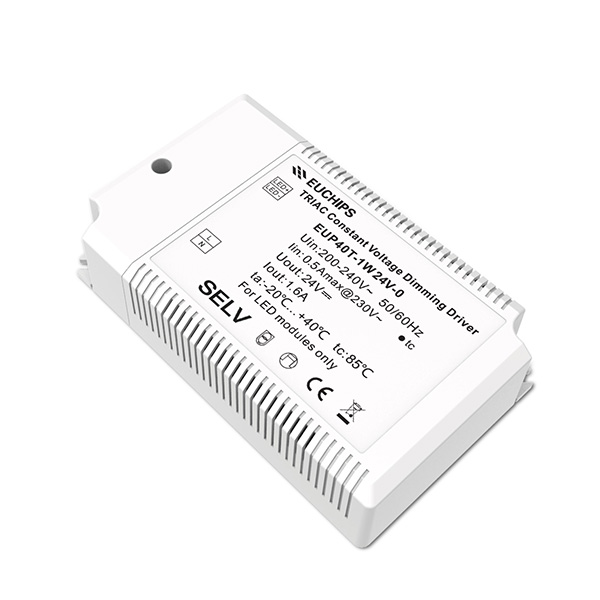

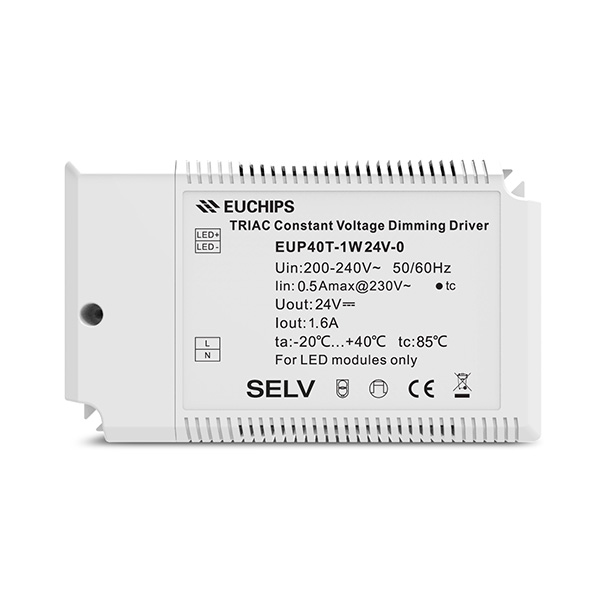

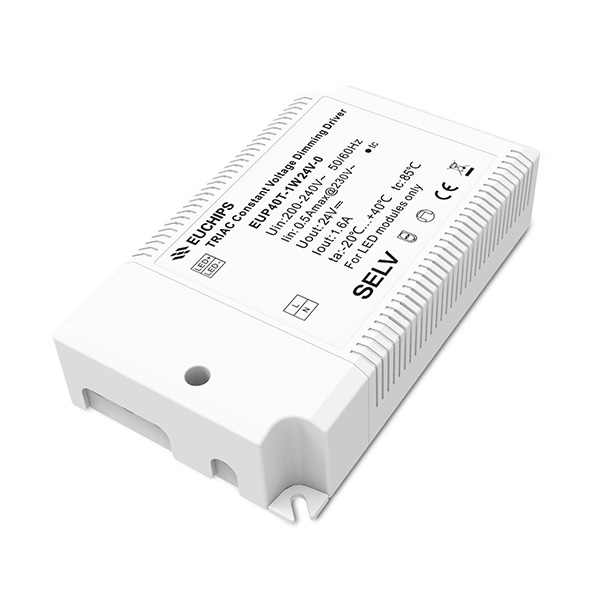

40W 24VDC Phase-cut CV Driver EUP40T-1W24V-0

Short Description:

  • Item No.: EUP40T-1W24V-0
  • Input Voltage: 200-240VAC
  • Output Current: 1.6A*1CH
  • Output Voltage: 24VDC
  • Output Power: 40W
  • Dim Mode: Triac/ELV
  • Size: 137*82*31mm

Product Detail

Product Tags

40W 24VDC 1.6A*1ch Constant Voltage Driver EUP40T-1W24V-0


1. Single channel constant voltage output, each channel current max 1.6A.
2. Support Leading edge (TRIAC) and Trailing edge (ELV) Dimmer
3. High efficiency up to 87%
4. Dimming range from 40VAC to 240VAC
5. Dimming effect smooth, no flickr
6. Short-circuit protection, over load protection
7. Suitable for indoor LED lighting application

Technical Parameter


Product Name 40W 24VDC TRIAC Constant Voltage Dimming LED Driver
Model EUP40T-1W24V-0
Output Channels 1
Voltage 24VDC
Current 1.6A
Power 38.4W
Voltage Accuracy ±3%
R & N (Max) 240mVp-p
Input Voltage 200VAC – 240VAC
Frequency 50/60Hz
Dimming Voltage Range 40-240VAC
Efficiency(Typ) 87%
Current 0.5A@230VAC
Inrush Current Cold start 45A(twidth=13.6us measured at 50% Ipeak) @230VAC
Protection Short Circuit Close the output, restart to recover since fault condition is removed for 10s
Over Load Hiccup mode, recovers after fault condition is removed
Function Dimming Triac/ELV
Others Dimension 137*82*31 mm(L*W*H)
G.W. 210g
Working temp. -20℃ ~ 40℃
Relative humidity 20~90% RH
