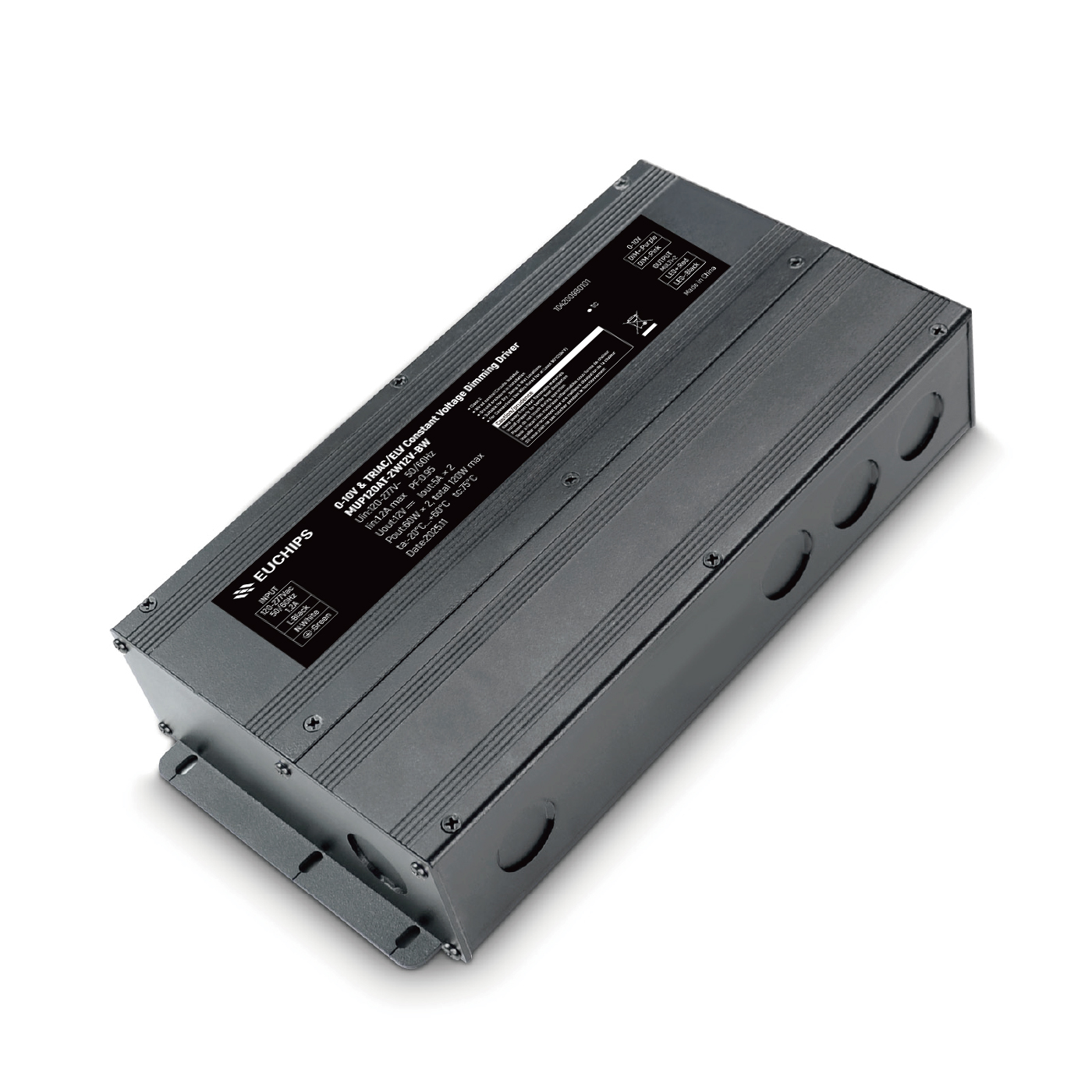

120W 12VDC 2ch Triac & 0-10V CV Driver MUP120AT-2W12V-BW
120W 12VDC 2ch Triac & 0-10V CV Driver MUP120AT-2W12V-BW
Features
· Dual channel constant voltage output, per channel 5A Max
· Input Voltage Range 120-277Vac
· Support 0-10V, Potentiometer, PWM, Triac/ELV Dimming
· 0-10V Dimming range of 0.1-100%, and dimming effect smooth, flicker free
· TRIAC and ELV dimming at 120 Vac only
· 100% output when no dimming signal input, can be used as normal power supply
· Protection: short circuit, Overload, Overcurrent
· Class 2 Output
· Safety according to UL8750 &UL 1310
· Suitable for Dry , Damp & Wet Locations
Techncial Parameters
|
Model |
MUP120AT-2W12V-BW | |
|
Input |
Efficiency | ≥86%@120VAC, full load |
| Voltage | 120VAC-277VAC | |
| Frequency Range(Hz) | 50/60Hz | |
| AC Current(max) | 1.2Amax@120VAC 0.62Amax @230VAC 0.53Amax @277VAC | |
| PF | ≥0.95@120VAC, ≥0.90@230-277VAC, full load | |
| THD | <10%@120VAC, <15%@230-277VAC, full load | |
| Inrush Current(max) | Cold start, 20.1Amax@120VAC 550us 52.2Amax@277VAC 530us | |
| Standby power | <3.0W@120VAC | |
| No load power | <3.0W@120VAC | |
| Turn on delay Time | <0.75s, @120Vac (When the light begins to shine) | |
|
Output |
Output Current | 2 Channel, 5A per channel |
| Output Voltage | 12VDC | |
| Voltage Range | 12VDC ±3% | |
| Output Power | 60W per channel, total 120W | |
| Output Channel | 2 | |
| Power limit | ≥120% | |
| Ripple | ≤360mV | |
| PWM Frequency | 20KHz PWM | |
|
Function |
Dimming Type | 0-10V ,Triac/ELV(@120VAC 60Hz) |
| Dimming Range | 0.1%-100%(0-10V) 1%-100%(TRIAC/ELV) | |
| Dimming curve | Logarithm (for 0-10V & Tiac/ELV) | |
| Flicker | Flicker free | |
| Protection | Short Circuit Protection | Shut down output, Auto-recovery after Fault Clearance |
| Overload Protection | Hiccup protection, Auto-recovery after Fault Clearance | |
| Overcurrent Protection | Hiccup protection, Auto-recovery after Fault Clearance | |
|
Safety&EMC |
Surge | L-N: 4kVAC L-N-PG:6kVAC |
| Withstand Voltage | I/P-O/P: 2000V/1min/<5mA I/P-G:1500V/1min/<5mA O/P-G:500V/1min/<5mA O/P-DIM( Signal port ):500V/1min/<5mA | |
| Safety standards | UL8750, UL1310, CSA-C22.2 No. 250.13 | |
| EMC | FCC 47 Part 15 Class B | |
| Insulation Resisance | 5MΩ | |
|
Others |
Working Temp. | (-20~+60) ℃ [-4°F~140°F] |
| Storage Temp., Humidity | (-40~+85)℃ [-40°F~185°F] 20~90%RH | |
| tc | 75℃ [ 167°F ] | |
| Material | Metal | |
| IP Rating | IP65 | |
| Lifetime | 50,000h@tc: 75℃ [ 167°F ] | |
| Warranty Condition | 5 years | |
| Switch Cycle | 25,000 times | |
| Packing(weight) | Net weight: 1050g (2.31 lb)±5%/PCS; 12PCS/Carton;13.1kg(28.8 lb)±5%/Carton; Carton Size: 314*263*249mm(12.36*10.35*9.80 Inch)(L*W*H) | |
| Dimension | 244*106*41.5mm (9.61*4.17*1.63 Inch)(L*W*H) | |
