200W 24VDC Non-dimmable CV Driver LM200D-1H24V-B
200W 24VDC Non-dimmable CV Driver LM200D-1H24V-B

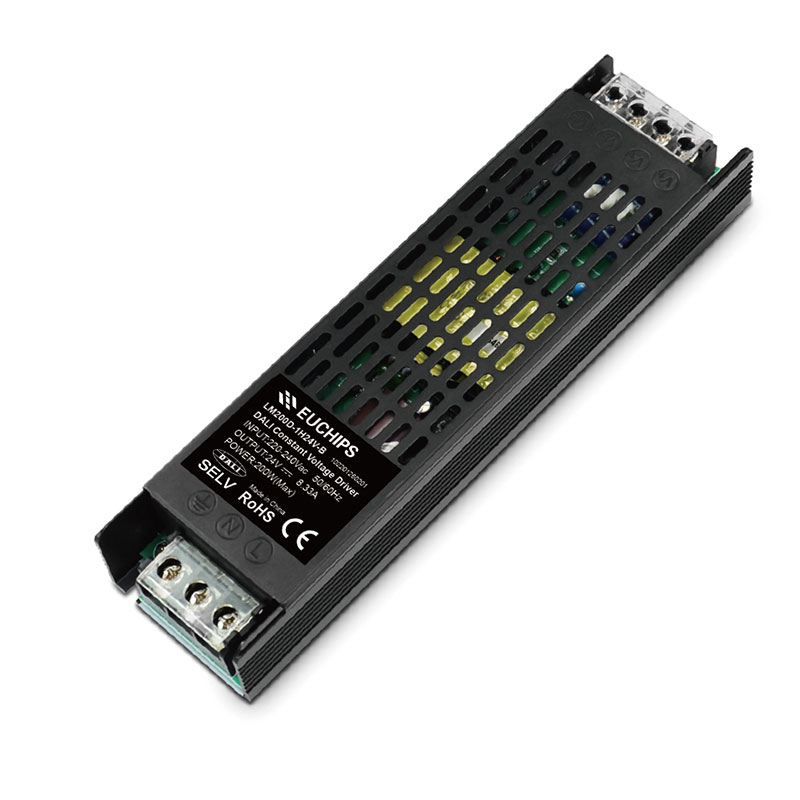

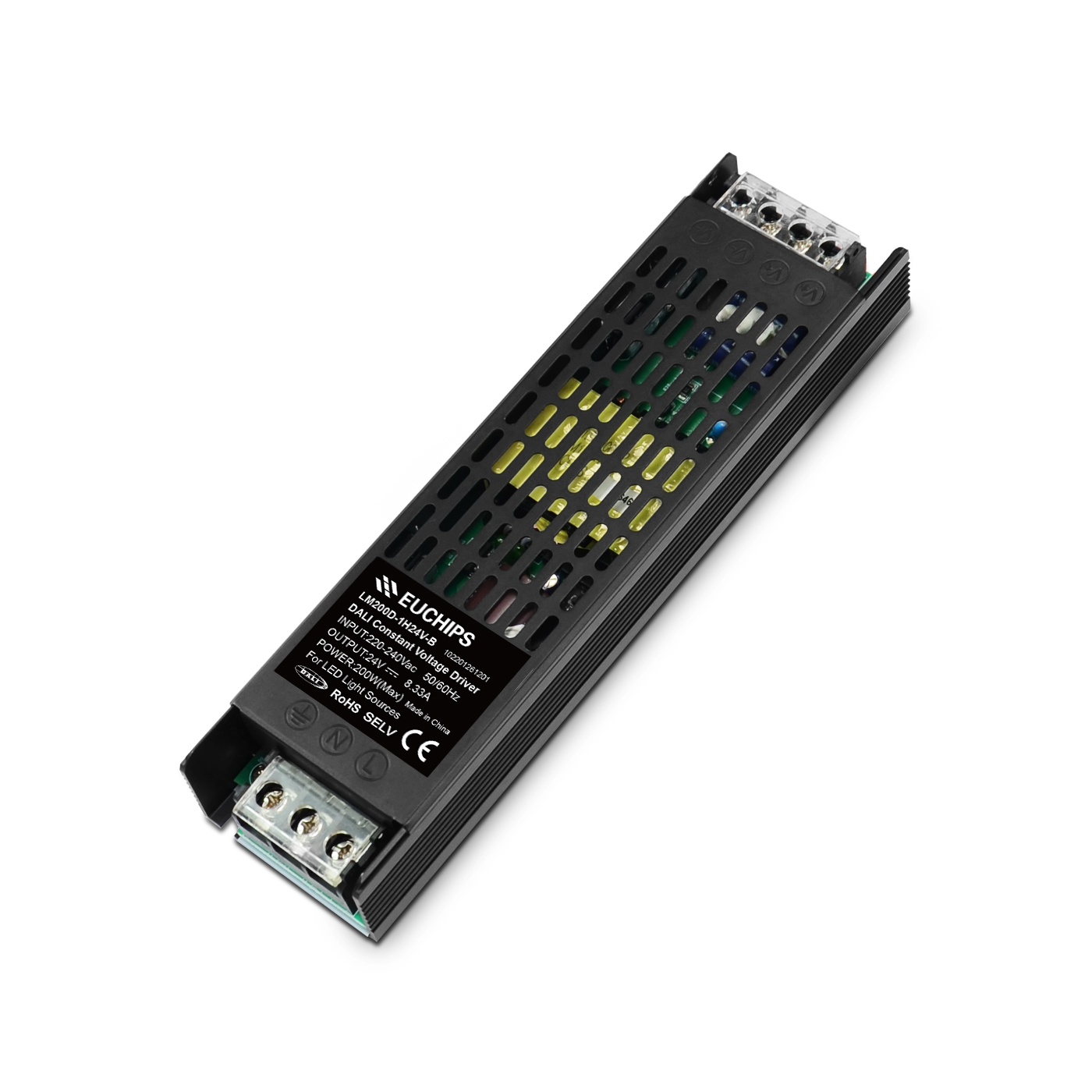

The LM200D-1H24V-B is a constant-voltage LED dimming driver. Its hollow shell design significantly improves heat dissipation, contributing
to stable output performance. It supports Touch DIM dimming technology.
Features
· Single channel constant voltage output,8.33A Max
· Meet DALI protocol IEC 62386
· Overload protection, overcurrent protection, short circuit protection
· Dimming effect smooth, flicker free
· IP20, suitable for indoor LED lighting application
Technical Parameters
| Model | LM200D-1H24V-B | |
|
Input |
Input Voltage | 220VAC-240VAC |
| Frequency Range(Hz) | 50/60Hz | |
| Input Current | 1Amax@230VAC | |
| Power Factor | ≥0.95@230VAC, Full load | |
| Efficiency | >92%@230VAC, Full load | |
| THD | <10%@230VAC, Full load | |
| Standby power | <0.5W | |
| No load power | <1W | |
| Inrush Current | Cold start , 80.8A@230VAC 444us | |
|
Output |
Voltage | 24VDC |
| Voltage Accuracy | ±5% | |
| Output current | 8.33A Max. | |
| Output power range | 0W~200W | |
| Ripple Voltage | <5% | |
| No load output voltage | 24.5VDC MAX | |
| Turn on Time | 0.75s, at230Vac(When the lights start to turn on) | |
|
Protection |
Short circuit | Hiccup Protection, Auto-recovery after Fault Clearance |
| Overload | Hiccup Protection, Auto-recovery after Fault Clearance | |
| Overvoltage | Hiccup Protection, Auto-recovery after Fault Clearance | |
| over temperature | Turn off the output, and it will automatically resume when the temperature returns to normal | |
|
Function |
Dimming method | DALI |
| Dimming Range | 0.1%-100% Dim to off | |
| Dimming curve | logarithm | |
| Flicker | Flicker free | |
| Touch DIM (PUSH DIM) | Yes, Dimming range: 1%-100% | |
| Surge & Withstand Voltage | Surge | L-N 2.5KV；L-G 2.5KV；N-G 2.5KV |
| Withstand Voltage | I/P-O/P: 3000V/1min/5mA I/P-GND: 1500V/1min/5mA O/P-GND: 500V/1min/5mA DALI-O/P: 1500V/1min/5mA DALI-I/P: 1500V/1min/5mA | |
|
Environment |
Working Temp. | -20℃~50℃ |
| Storage Temp. | -40℃~85℃ | |
| Storage Humidity | 20-90%RH (No condensation) | |
|
Others |
RoHS | RoHS 2.0 (EU) 2015/863 |
| tc | 80℃ | |
| Material | Metal | |
| IP Rating | IP20 | |
| Lifetime | 50,000h@tc:80℃ | |
| Warranty Condition | 5years | |
| Switch Cycle | 25,000times | |
| Body size | 188*49*28mm(L*W*H) | |
| Packing(weight) | Net weight:260g±5%/PCS; 50PCS/Carton; 18.0kg±5%/Carton;Carton Size: 407*287*194mm(L*W*H) | |
| Noise | In a quiet environment, there is no noise outside 30-50cm | |
| Remark | All parameters were measured at an input voltage of 230VAC/50Hz and an ambient temperature of 25 ℃ without any special instructions. | |
