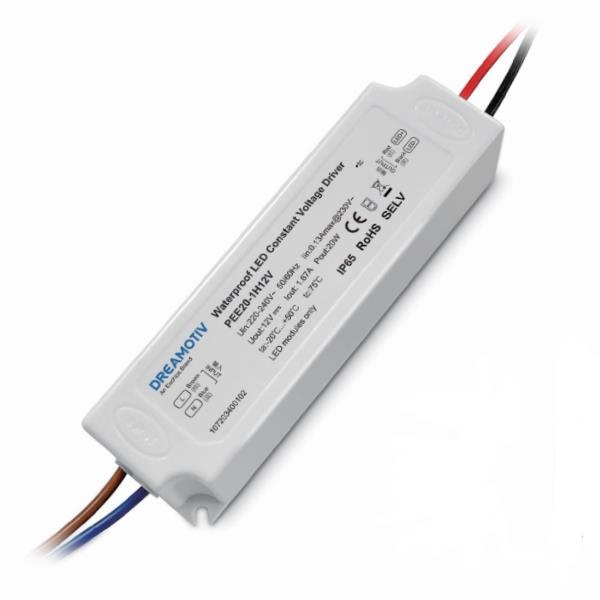

20W 12VDC Non-dimmable Waterproof CV Driver PEE20-1H12V
20W 12VDC Non-dimmable Waterproof CV Driver PEE20-1H12V
Features
·Insolated PC design
·Isolated design,safe and reliable
·Protections: Short circuit, Over load, over current
·Protection grades is as high as IP65
·5 years warranty
Technical Parameters
|
Model |
PEE20-1H12V | |
|
Input |
Efficiency | ≥85%@230VAC, Full load |
| Voltage | 220-240VAC | |
| Frequency | 50/60Hz | |
| Current | 0.13Amax@230VAC | |
| PF | >0.95 | |
| THD | <10% | |
| No load power | ≤0.5W | |
| Inrush Current | Cold start,15.4A@230VAC 220us | |
| Turn On Delay Time | ≤0.5s, at230Vac (When the light begins to shine) | |
|
Output |
Current/Voltage/Power | 1.67A/12VDC/20W |
| Channel | 1 | |
| Voltage Accuracy | ±5% | |
| Ripple Voitage | <3% | |
| No load output voltage | 12.6VDC max | |
|
Protection |
Over load | Reduce current burp protection, troubleshoot normal output |
| Short circuit | Short circuit No output, troubleshooting output normal | |
| Over Current | Voltage drop, troubleshooting output normal | |
|
Safety & EMC |
Lightning Surge | L-N:2kV |
| Withstand Voltage | I/P-O/P:3000VAC/1min/<5mA | |
| Safety Standards | IEC/EN62384,IEC/EN61347-1, IEC/EN61347-2-13, GB19510.1, GB19510.14 | |
| EMC | EN61000-4-2, 3, 4, 5, 6, 8, 11; EN55015, EN61000-3-2; GB17626.3, 4, 5, 6, 8, 11; GB17743 GB17625.1, 2 | |
| Insulation Resisance | 5MΩ | |
|
Others |
Working Temp. | -20℃~+50℃ |
| Storage Temp.; Humidity | -40℃~85℃ 20-90%RH
℃ |
|
| Tc | 75℃ | |
| Material | PC | |
| IP Rating | IP65 | |
| Lifetime | 50 000h@tc:50℃ | |
| Warranty Condition | 5 years | |
| Switch Cycle | >25,000 times | |
| Packing Size | Net weight: 153g±5%/PCS; 60PCS/Carton; 9.5kg±5%/Carton; Carton Size: 282*230*140mm(L*W*H) | |
| Dimension | 118*35*26mm(L*W*H) | |
