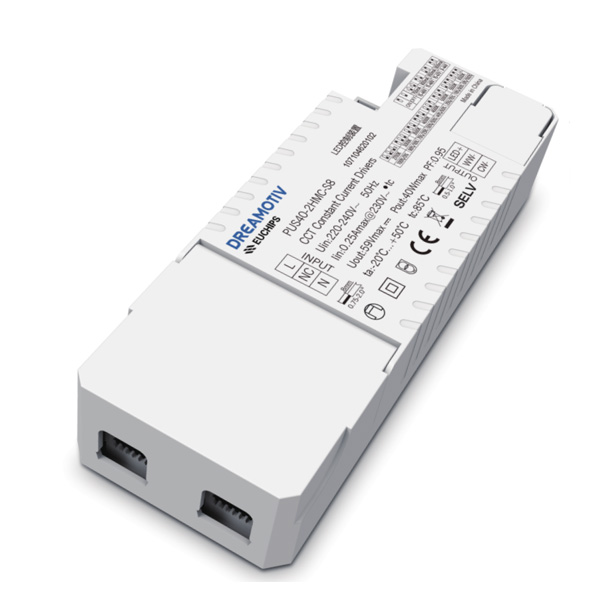

40W 750/800/850/900mA*2ch Non-dimmable CC Driver PUS40-2HMC-S8

Short Description:

Item No.: PUS40-2HMC-S8
Output Power: 40W

Download Certificates Download Test Reports

Product Detail

Product Tags

40W 750/800/850/900mA*2ch Non-dimmable CC Driver 40W PUS40-2HMC-S8

PUS40-2HMC-S8 is a constant current output LED driver. The output current and color temperature can be adjusted by dip switch.

Features

· Dual channel constant current output, multi-level current optional
· Built-in active PFC function
· No stroboscopic
· Overvoltage protection, load protection, short circuit protection
· Suitable for LED indoor lamps, such as downlights, spotlights, panel lights, etc

Technical Parameters

Model	PUS40-2HMC-S8
Input	Efficiency	88%@230VAC, full load
	Voltage	220VAC-240VAC
	Frequency	50Hz
	Current	0.25Amax@230VAC
	PF	≥0.95@230VAC, full load
	THD	<10%@230VAC, full load
	Inrush Current	Cold start,13A@230VAC 20us
	No load power	≤0.5W
	Turn on delay Time	≤ 0.5 s, at230Vac (When the light begins to shine)
Output	Current Voltage Power	750mA/15-48VDC/36W 800mA/15-48VDC/38.4W 850mA/15-47VDC/39.95W 900mA/9-44VDC/39.6W
	Current Accuracy	±5%
	Ripple current	±3%
	No load output voltage	59V max
	Channel	2
Protection	Overvoltage	Reduce current burp protection, troubleshoot normal output
	Over load	Reduce current burp protection, troubleshoot normal output
	Short circuit	Short circuit No output, troubleshooting output normal
Safety&EMC	Surge	L-N: 1KVAC
	Withstand Voltage	I/P-O/P: 3750Vac/1min/<5mA
	Safety standards	IEC/EN62384, IEC/EN61347-1, IEC/EN61347-2-13, GB19510.1, GB19510.14
	EMC Emission	EN61000-4-2, 3, 4, 5, 6, 8, 11; EN55015, EN61000-3-2; GB17626.3, 4, 5, 6, 8, 11; GB17743 GB17625.1, 2
	Insulation Resistance	5MΩ
Others	Working temp.	ta:-20-50℃
	Storage Temp., Humidity	-40℃~85℃, 20-90%RH
	tc	85℃ @230VAC, full load
	Lifetime	50,000h@tc:85℃
	Warranty	5 year
	Material	Pc
	IP rating	IP20
	Switch Cycle	>25,000 times
	Dimension	133.55026mm (LWH)
	Pack Information	Net weight: 185g±5%/PCS; 60PCS/Carton; 11.6kg±5%/Carton; Carton Size: 423224158mm(LWH)
