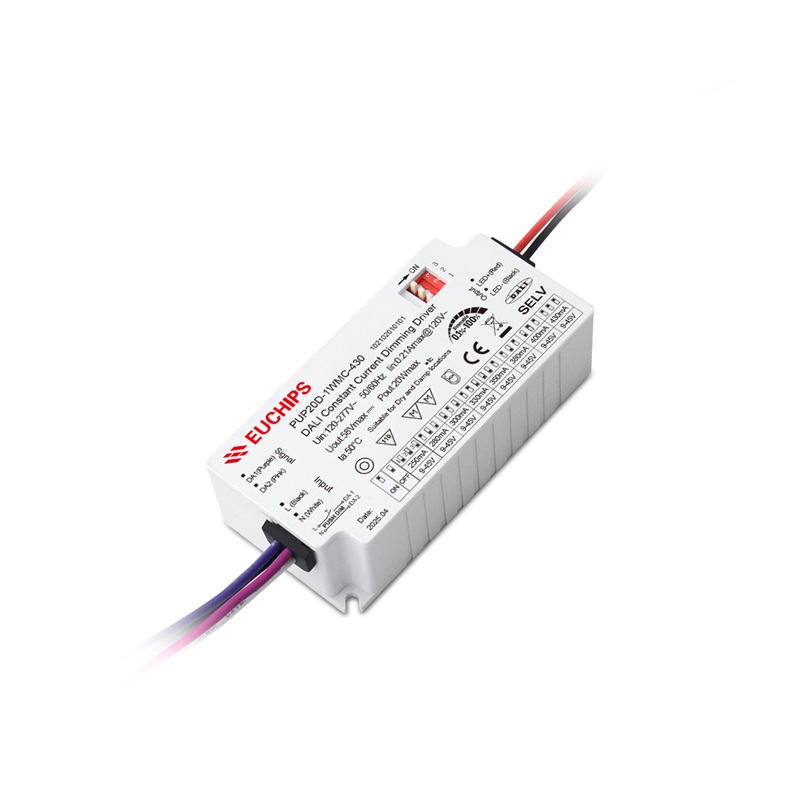

20W 250~430mA*1ch DALI CC Driver PUP20D-1WMC-430
20W 250~430mA*1ch DALI CC Driver PUP20D-1WMC-430
Features
· Single-channel constant current output, multi-stage current selectable
· Support Touch-DIM function
· Dimming range 0.1%-100% dimming, smooth dimming without step sense and stroboscopic
· Short circuit, overload, overvoltage protection, V0 flame retardant housing
· Life of 50,000 hours, 5 years warranty
· Customizable dimming curve
· Built-in PFC chip to improve energy efficiency and reduce pollution
· Suitable for LED indoor lamps, such as downlights, spotlights, panel lights, etc
Technical Parameters
| Model | PUP20D-1WMC-430 | |
| Input | Input Voltage | 120VAC-277VAC |
| Frequency Range(Hz) | 50/60Hz | |
| Input Current | 0.21Amax@120VAC 0.1Amax@277VAC 0.12Amax@230VAC | |
| Power Factor | ≥0.98@120VAC, Full load ≥0.95@277VAC, Full load | |
| Efficiency | ≥84%@120VAC, Full load ≥84%@277VAC, Full load | |
| THD | ≤10%@120VAC, Full load <15%@277VAC, Full load | |
| Standby power | <1W | |
| No-load power | <1W | |
| Inrush Current | Cold start, 4.84A@120V 9.2us 10.6A@277VAC 11.2us | |
| Output | Output Power Range | 0W~20W |
| Voltage Accuracy | / | |
| Current Accuracy | ±5% | |
| Output Voltage | 250mA/9-45V/11.25W 300mA/9-45V/13.5W 350mA/9-45V/15.75W 400mA/9-45V/18W280mA/9-45V/12.6W 330mA/9-45V/14.85W 380mA/9-45V/17.1W 430mA/9-45V/19.35W | |
| Output Current | ||
| Output Power | ||
| PstLM | ≤1 | |
| SVM | ≤0.4 | |
| Dimming frequency | / | |
| Line Regulation | ±3% @Full load | |
| Load Regulation | ±3% @Full load | |
| Turn on delay Time | 0.75s, at230Vac (When the light begins to shine) | |
| Function | Dimming Type | DALI/Touch DIM (Push DIM) |
| Dimming Range | 0.1%-100% Dimming to OFF | |
| Dimming Curve | Logarithm | |
| Flicker free | Flicker free | |
| Protection | Short circuit | There was no output due to short circuit. The output was normal after the fault was eliminated |
| Over load | Reduce the current and recover automatically after the fault is eliminated | |
| Over Voltage | Reduce the current and recover automatically after the fault is eliminated | |
| Safety& EMC | Surge | L-N 0.5KV |
| Withstand Voltage | I/P-O/P: 3000Vac/1min/<5mA DALI( Signal port )-O/P:1500Vac/1min/<5mA | |
| DALI Standard | IEC 62386-101: 2014, IEC 62386-102: 2014; IEC 62386-207: 2009, DALI 2.0 | |
| Others | Working Temp. | -20℃~50℃ (-4°F-122°F) |
| Storage Temp. | -40℃~85℃ (-40°F-185°F) 20-90%RH (No condensation) | |
| tc | 80℃ [ 176°F ] | |
| material | PC | |
| IP Rating | IP20 | |
| Lifetime | 50,000h@tc:80℃ [ 176°F ] | |
| Switch Cycle | 25,000times | |
| Body size | 88*43*26.5mm (3.46*1.69*1.04 Inch) (L*W*H) | |
| Packing(weight) | Net weight: 177g (0.39Ib) ±5%/PCS; 50PCS/Carton; 9.35kg (20.61Ib) ±5%/Carton; Carton Size: 234*222*194mm (9.21*8.74*7.63 Inch) (L*W*H) |
|
