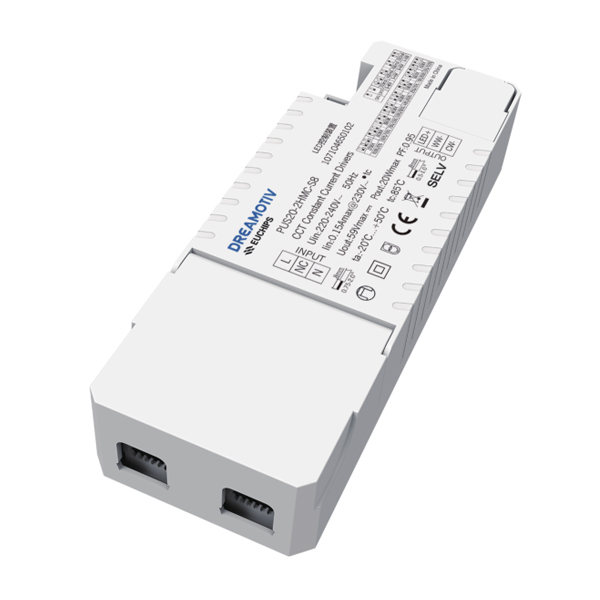

20W 350/400/450/500mA*2ch Non-dimmable CC Driver PUS20-2HMC-S8
20W 350/400/450/500*2ch Non-dimmable CC Driver PUS20-2HMC-S8
PUS20-2HMC-S8 is a constant current output LED driver. The output current and color temperature can be adjusted by dip switch.
Features
· Dual channel constant current output, multi-level current optional
· Built-in active PFC function
· No stroboscopic
· Overvoltage protection, load protection, short circuit protection
· Suitable for LED indoor lamps, such as downlights, spotlights, panel lights, etc
Technical Parameters
|
Model |
PUS20-2HMC-S8 | |
|
Input |
Efficiency | 86%@230VAC, full load |
| Voltage | 220VAC-240VAC | |
| Frequency | 50Hz | |
| Current | 0.15Amax@230VAC | |
| PF | ≥0.95@230VAC, full load | |
| THD | <10%@230VAC, full load | |
| Inrush Current | Cold start,9A@230VAC 20us | |
| No load power | ≤0.5W | |
| Turn on delay Time | ≤ 0.5 s, at230Vac (When the light begins to shine) | |
|
Output |
Current Voltage Power | 350mA/9-45VDC/16W 400mA/9-45VDC/18W 450mA/9-45VDC/20W 500mA/9-40VDC/20W |
| Current Accuracy | ±5% | |
| Ripple current | ±3% | |
| No load output voltage | 59V max | |
| Channel | 2 | |
| Protection | Over voltage | Reduce current burp protection, troubleshoot normal output |
| Over load | Reduce current burp protection, troubleshoot normal output | |
| Short circuit | Short circuit No output, troubleshooting output normal | |
|
Safety&EMC |
Surge | L-N: 1KVAC |
| Withstand Voltage | I/P-O/P: 3750Vac/1min/<5mA | |
| Safety standards | IEC/EN62384, IEC/EN61347-1, IEC/EN61347-2-13, GB19510.1, GB19510.14 | |
| EMC Emission | EN61000-4-2, 3, 4, 5, 6, 8, 11; EN55015, EN61000-3-2; GB17626.3, 4, 5, 6, 8, 11; GB17743 GB17625.1, 2 | |
| Insulation Resistance | 5MΩ | |
|
Others |
Working temp. | ta:-20-50℃ |
| Storage Temp., Humidity | -40℃~85℃, 20-90%RH | |
| tc | 85℃ @230VAC, full load | |
| Lifetime | 50,000h@tc:85℃ | |
| Warranty | 5 year | |
| Material | Pc | |
| IP rating | IP20 | |
| Switch Cycle | >25,000 times | |
| Dimension | 133.5*50*26mm (L*W*H) | |
| Pack Information | Net weight: 110g±5%/PCS; 60PCS/Carton; 7.1kg±5%/Carton; Carton Size: 423*224*158mm(L*W*H) | |
